Laser machining strengthened glass
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 3, 2017
Issued Date -
N/A
app pub date -
Mar 28, 2014
filing date -
Mar 28, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

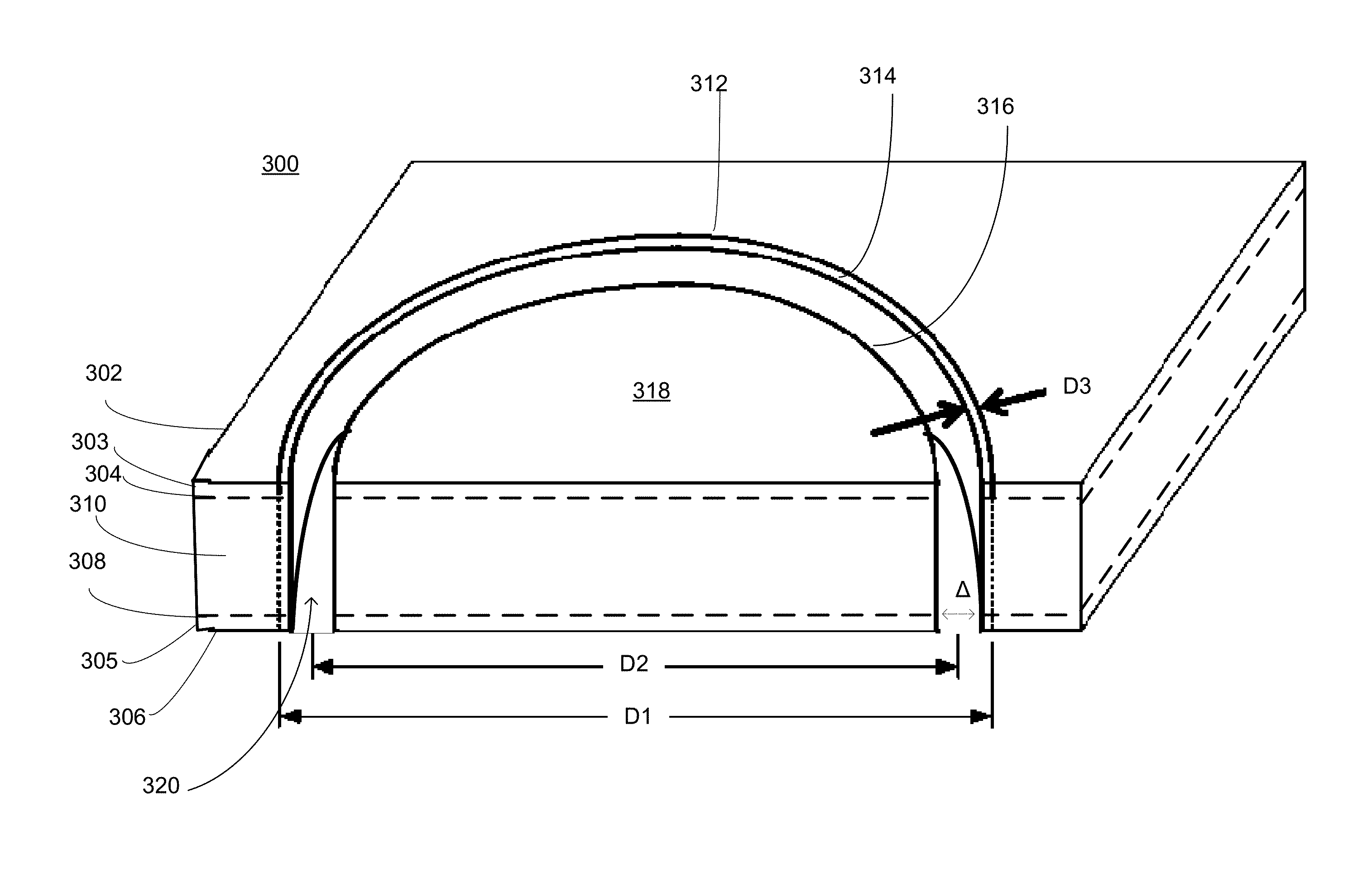

An internal feature can be laser machined in strengthened glass sheets or panels by first laser machining a first scribe in a first surface proximate to the internal feature to be laser machined. The internal feature can be then laser machined by positioning a beam waist of a laser beam proximate to an opposite second surface by focusing the laser beam through the strengthened glass panel from the first surface. The internal feature is laser machined by repositioning the beam waist from the second surface to the first surface while removing material from a kerf surrounding the internal feature. When the laser beam waist is finally positioned proximate to the first surface material, the internal shape formed by the laser machining is easily and cleanly removed from the surrounding glass.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- C03B Class
- 471 Applications Filed
- 369 Patents Issued To-Date
- 78.35 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C03B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 3, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 3, 2029 |
