Derailleur
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 3, 2017
Issued Date -
N/A
app pub date -
May 11, 2015
filing date -
Oct 17, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

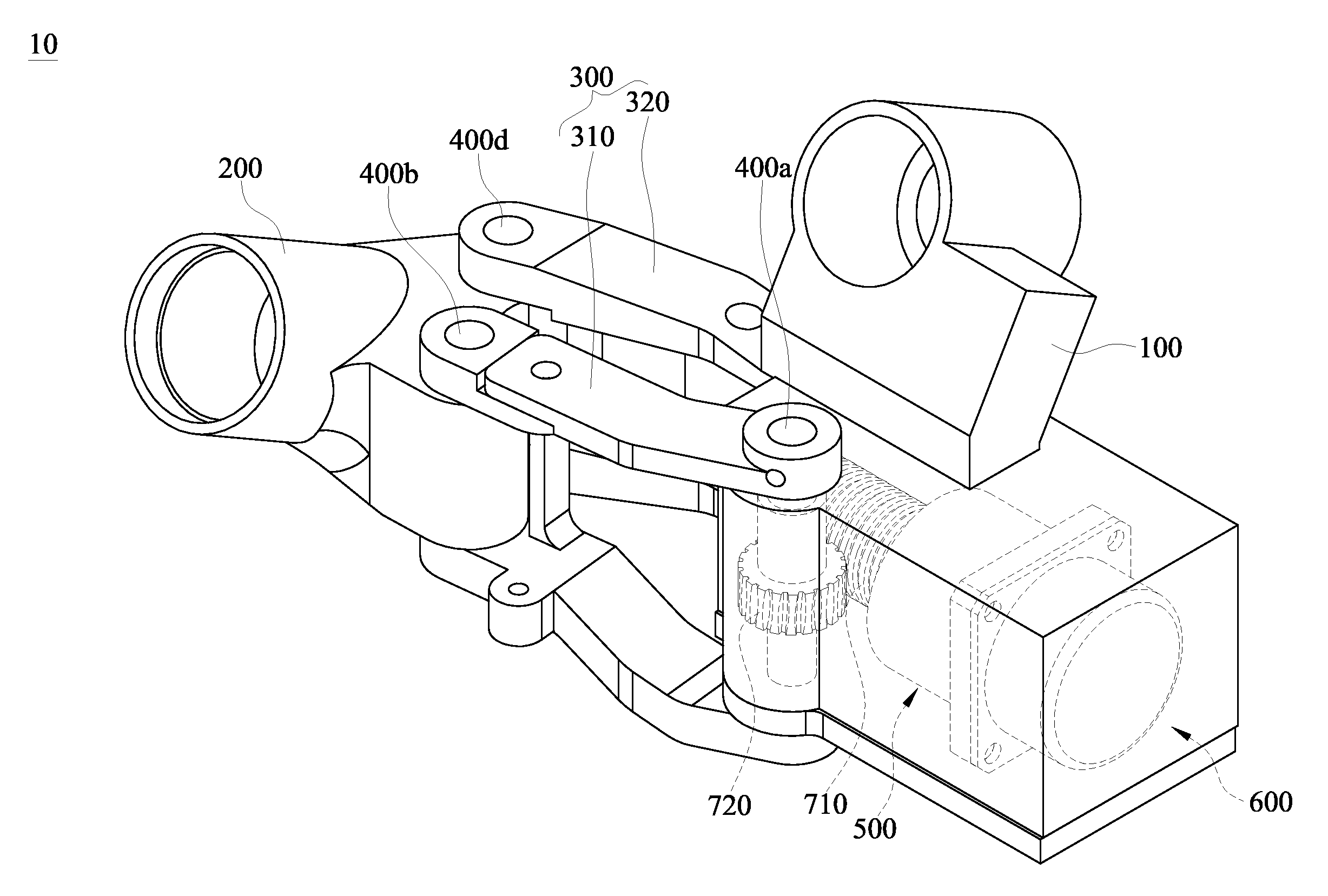

A derailleur includes a fixed component, a movable component, a linkage component, a deceleration component and a drive component. The fixed component is for being fixed to a bicycle frame. The movable component is for being fixed to a chain guide. The linkage component includes a first linkage and a second linkage. Two ends of the first linkage pivot on the fixed component and the movable component, respectively. Two ends of the second linkage pivot on the fixed component and the movable component, respectively. The deceleration component includes a circular spline, a flex spline and a wave generator. The flex spline is disposed inside the circular spline, for rotating the first linkage and the second linkage relative to the fixed component. The wave generator is disposed inside the flex spline. The drive component is connected to the wave generator, for rotating the wave generator.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B62M Class
- 405 Applications Filed
- 315 Patents Issued To-Date
- 77.78 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B62M Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 3, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 3, 2029 |
