Method and system for detection of bone structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 3, 2017
Issued Date -
N/A
app pub date -
Nov 20, 2015
filing date -
Apr 17, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

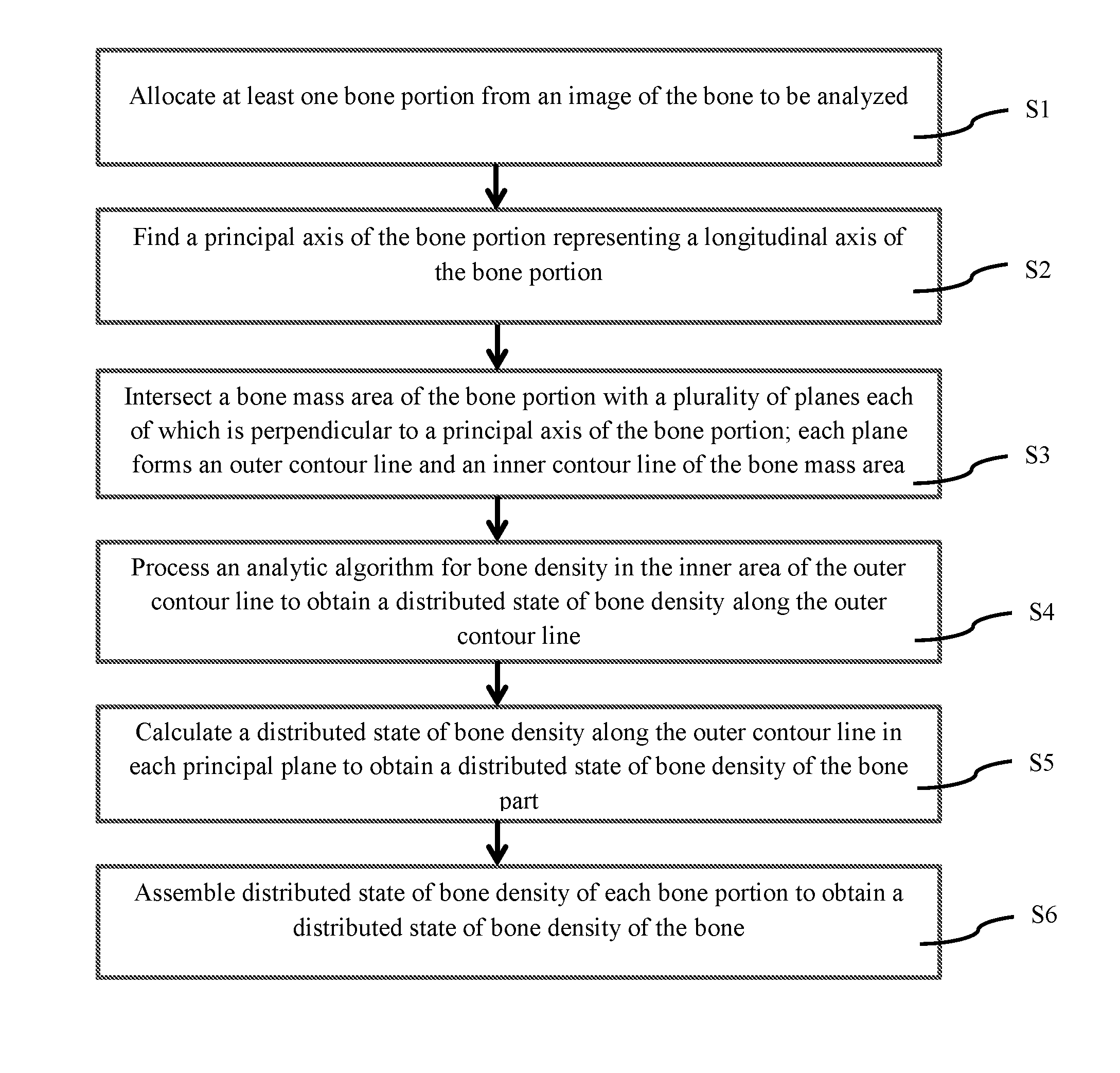

A method for detecting bone structure includes allocating at least one bone portion from a bone image composed by pixels each including luminance value relating to bone structural parameter; aligning a major axis of principal axes of moment of inertia of the bone portion to a principal axis of Cartesian coordinate system; a cortical bone area of the bone portion intersecting at least one principal plane perpendicular to the principal axis, and each principal plane forming an outer and inner contour line of the cortical bone area; processing an analytic algorithm for the bone structural parameter; calculating distributed state of the bone structural parameter in each principal plane to obtain a distributed state of the bone structural parameter of the bone portion; and obtaining a distributed state of the bone structural parameter of the bone portion by assembling distributed state of the bone structural parameter of each bone portion.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- G06T Class
- 16.26 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 3, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 3, 2029 |
