Split gear assembly with one-way roller clutch for controlling backlash in opposed-piston engines
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 26, 2017
Issued Date -
N/A
app pub date -
Aug 4, 2014
filing date -
Aug 4, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

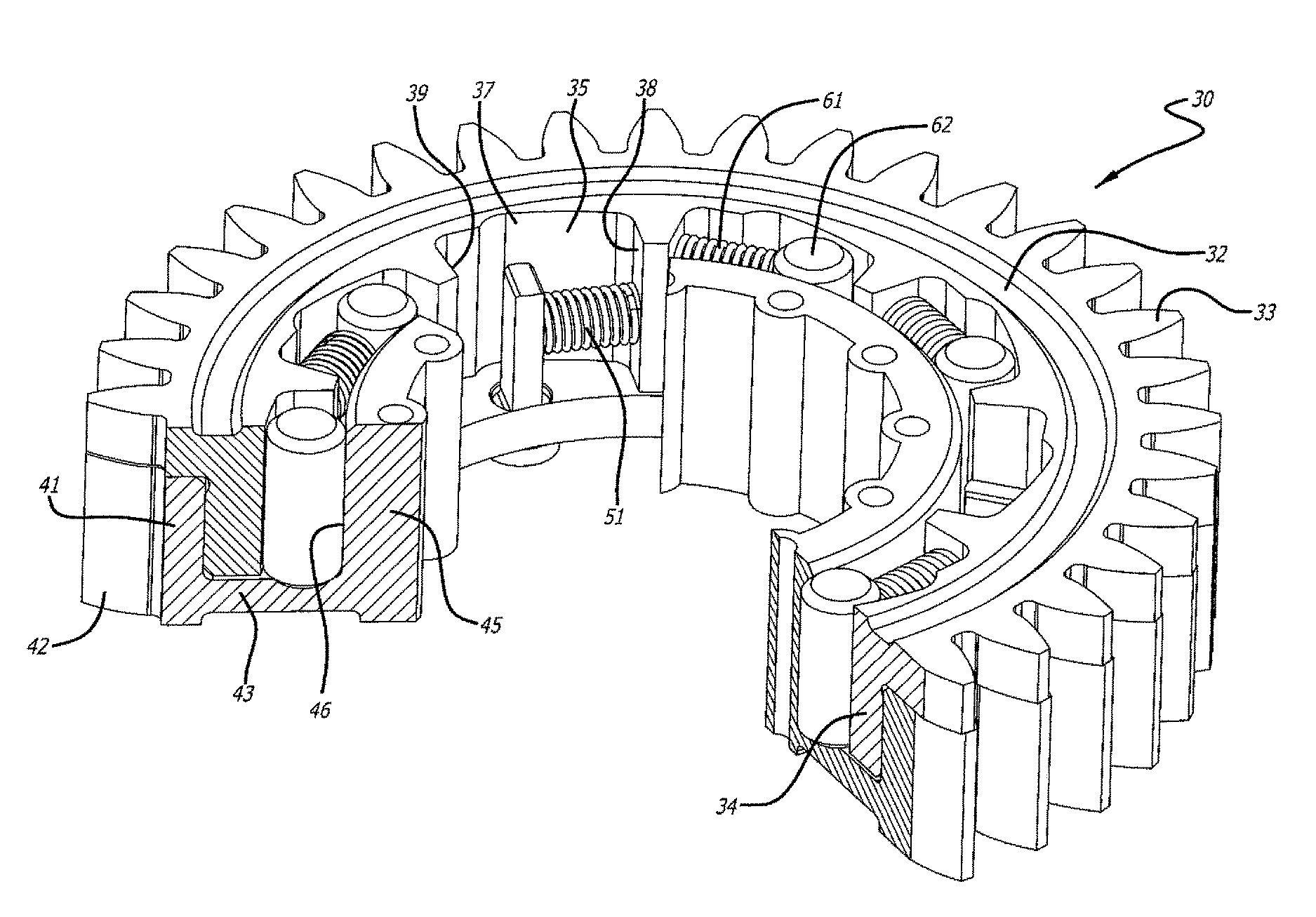

Backlash is controlled in an opposed-piston engine that includes two crankshafts disposed in a parallel, spaced-apart relationship and a gear train coupling the first and second crankshafts, the gear train including a driving gear coupled to the first crankshaft and a split gear assembly engaged with the driving gear to transfer rotation from the driving gear to the split gear assembly. The split gear assembly includes first and second gears, a spring mechanism that acts to angularly offset the first gear relative to the second gear in a first direction, and a one-way clutch mechanism that prevents relative angular movement of the first gear relative to the second gear in a second direction opposite the first direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F02B Class
- 1127 Applications Filed
- 980 Patents Issued To-Date
- 86.96 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- F02B Class
- 21.92 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 26, 2029 |
