Ice protection of aerodynamic surfaces
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 26, 2017
Grant Date -
May 1, 2008
app pub date -
Feb 3, 2006
filing date -
Feb 9, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

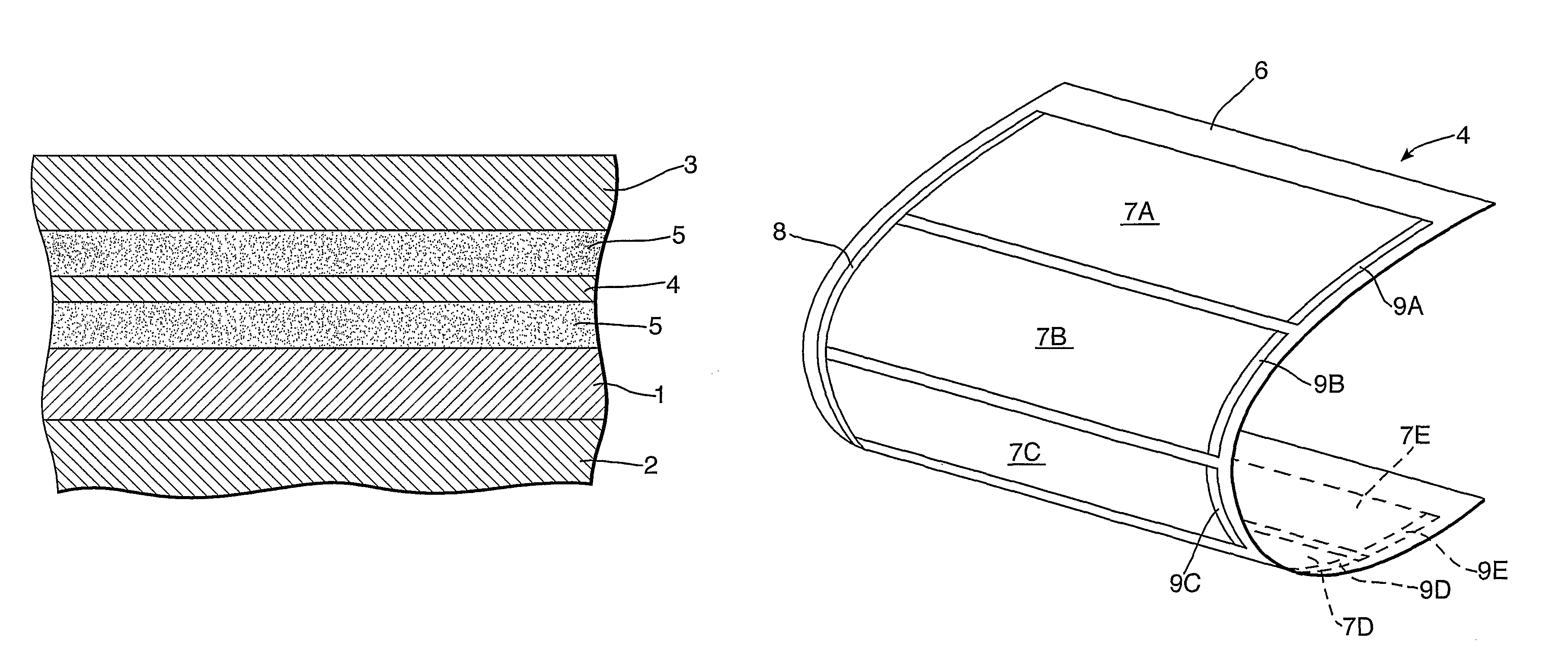

An electrothermal heater mat for anti-icing or de-icing of a helicopter rotor blade or other aerodynamic surface comprises a substrate, such as a flexible polyimide sheet, bearing tracks of a material of selected electrical resistivity, these tracks being formed by printing onto the substrate with a thermosetting ink loaded with electrically conductive (e.g. carbon) particles. Electrical bus bars/terminals for the supply of electrical energy to the resistive tracks may also be printed, using an ink loaded with particles of higher conductivity material such as copper or silver.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- B64D Class
- 19.15 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 26, 2029 |
