Gas spring assemblies and internal misalignment mounts for same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 26, 2017
Issued Date -
N/A
app pub date -
May 1, 2014
filing date -
May 1, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

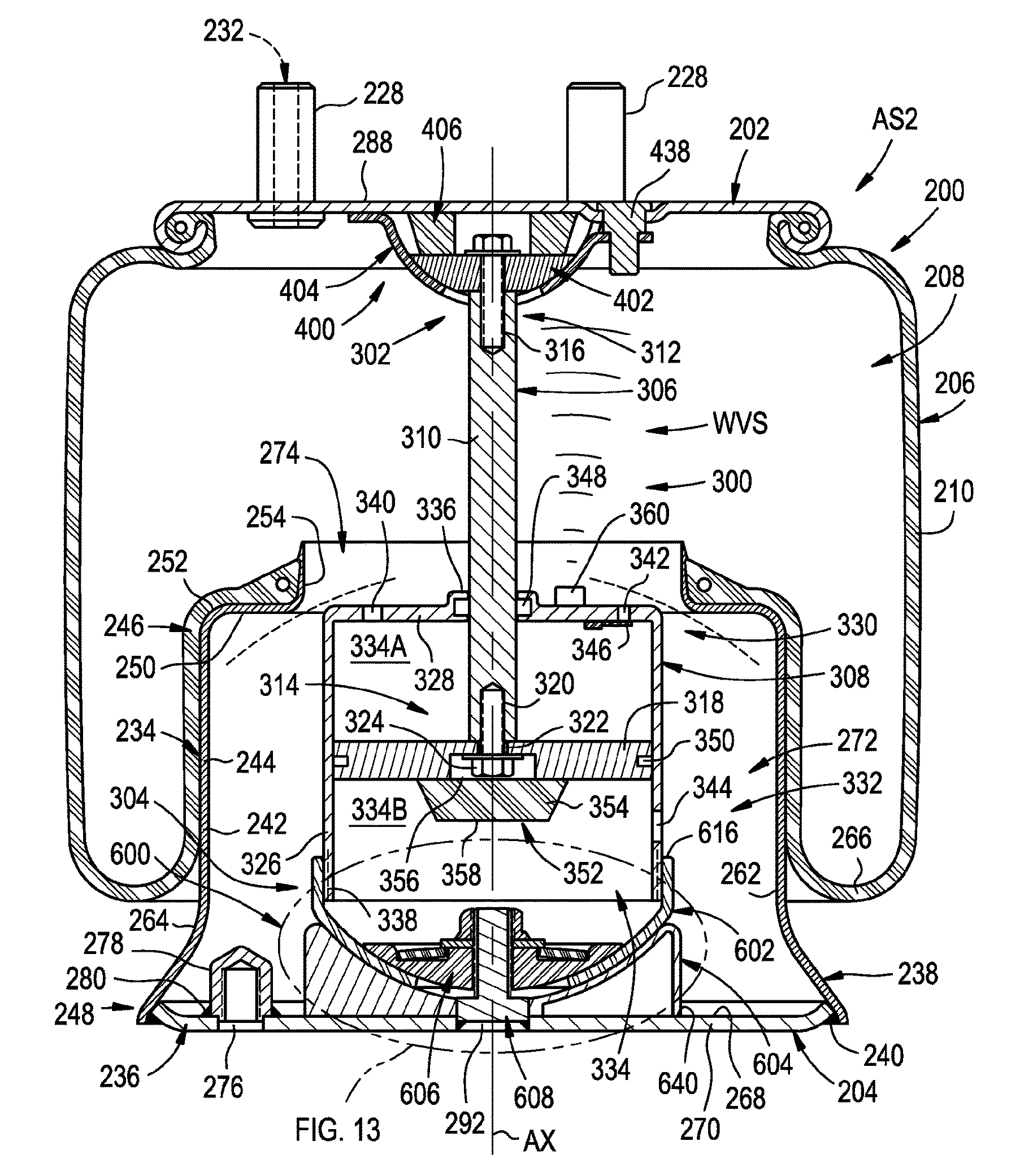

An assembly (AS1) in accordance with the subject matter of the present disclosure can include a gas spring (200), an internally-mounted device (300) and a mounting assembly (400, 500) operatively connecting the internally-mounted device to an end member (202, 204) of the gas spring (200). The mounting assembly (400, 500) can permit at least a portion of the internally-mounted device to undergo 360 degree rotational and pivotal displacement relative the end member (202, 204) of the as spring (200). The mounting assembly (400, 500) can include a device mount (402, 502) that can be operatively secured to the internally-mounted device (300) and a retainer (404, 504) that is secured to the end member (202, 204) and operatively retains the device mount (402, 502) adjacent the end member (202, 204). The device mount (402, 502) and the retainer (404, 504) can include complimentary semi-spherical surfaces that permit the relative movement between internally-mounted device (300) and the end member (202, 204) of the gas spring (200).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B60G Class
- 528 Applications Filed
- 481 Patents Issued To-Date
- 91.10 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- B60G Class
- 18.34 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 26, 2029 |
