Ratchet and socket assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 26, 2017
Issued Date -
N/A
app pub date -
Oct 16, 2014
filing date -
Oct 16, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

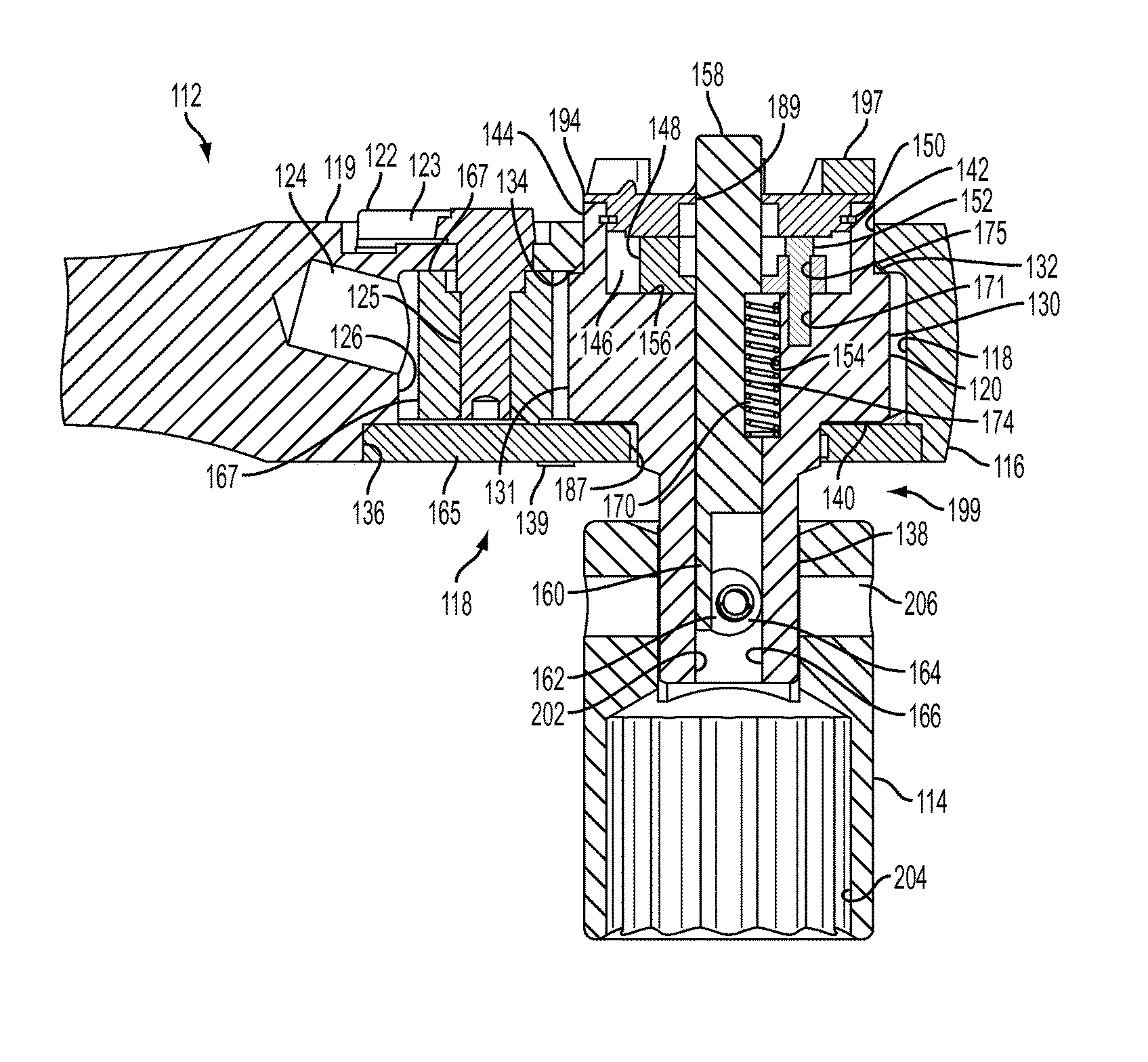

A ratcheting tool has a drive tang with a socket retaining detent and a linkage to engage the detent. A locking element is disposed movably between a first position wherein the locking element engages the linkage when a first actuator is in a first position so that the locking element blocks movement of the linkage so that the detent remains in a socket-retaining position and a second position in which the locking element disengages the linkage. A storage device for retaining sockets has a frame and one or more docks attached to the frame, each dock having a first retainer member, a second retainer member, and a third retainer member, at least one of which is selectively movable with respect to a socket receiving space so that a socket is removable from the socket receiving space.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2014 Application Filing Year
- B25B Class
- 687 Applications Filed
- 599 Patents Issued To-Date
- 87.20 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B25B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 26, 2029 |
