Current accumulative pixel structure for CMOS-TDI image sensor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 19, 2017
Issued Date -
N/A
app pub date -
Dec 12, 2014
filing date -
Sep 15, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

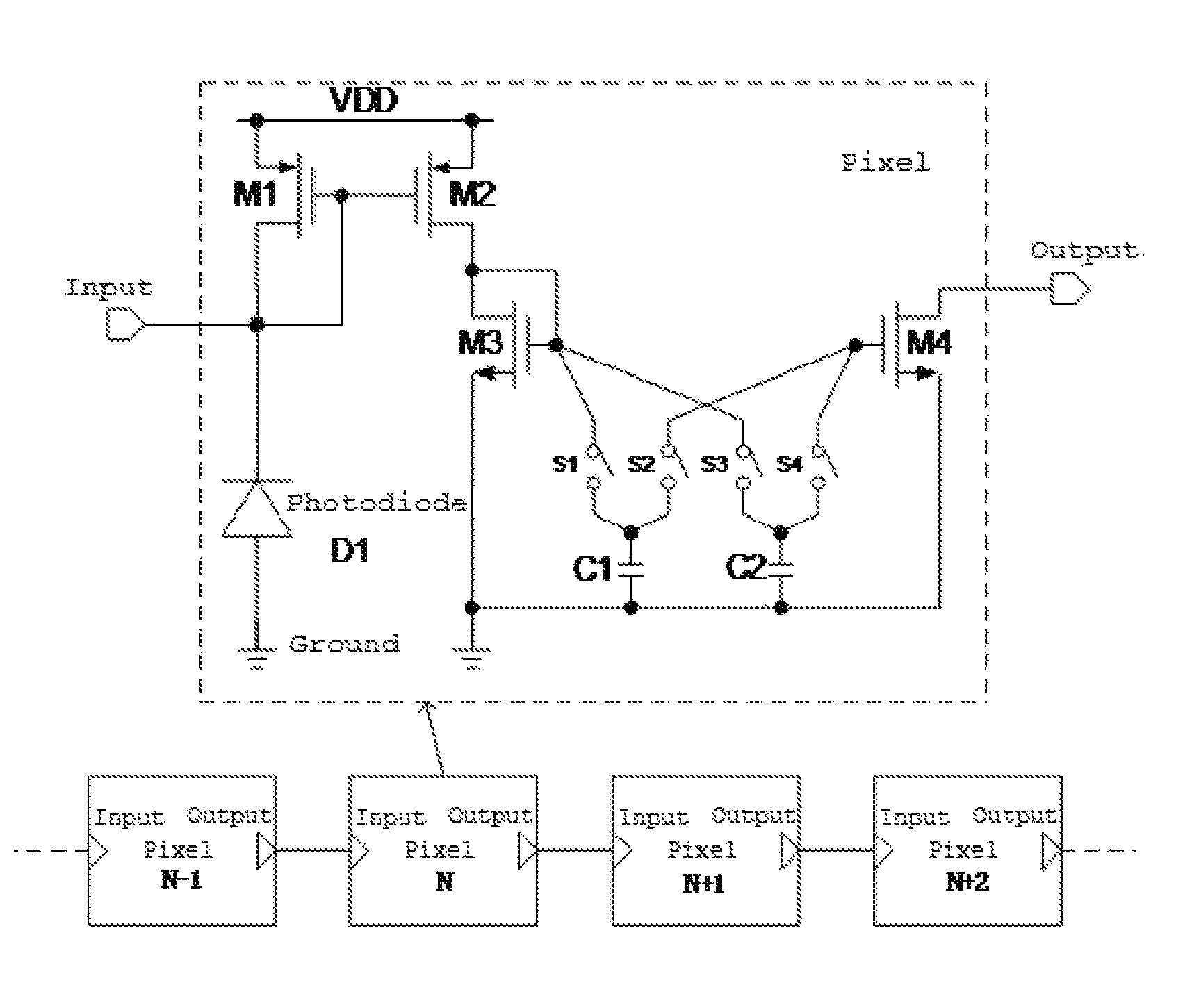

The present invention relates to technical field of analog integrated circuit design. TDI function is better realized by CMOS image sensor and it improves scanning frequency of the CMOS-TDI image sensor and extends application range of TDI technique. To this end, the present invention proposes a technical solution of a current accumulative pixel structure for CMOS-TDI image sensor which comprises a photodiode, four MOS transistors M1, M2, M3, M4, four switches S1, S2, S3, S4, and two capacitors C1, C2; the connection relationship thereof is denoted below: the anode of the photodiode D1 is connected to a ground wire, while the cathode thereof is connected to an input end; the drain and gate of the transistor M1 are both connected with the input end, while the source thereof is connected with a power source VDD. The current invention mainly finds its application in analog integration circuit design.
