Enclosed switchboard
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 19, 2017
Issued Date -
N/A
app pub date -
Feb 16, 2016
filing date -
Jul 29, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

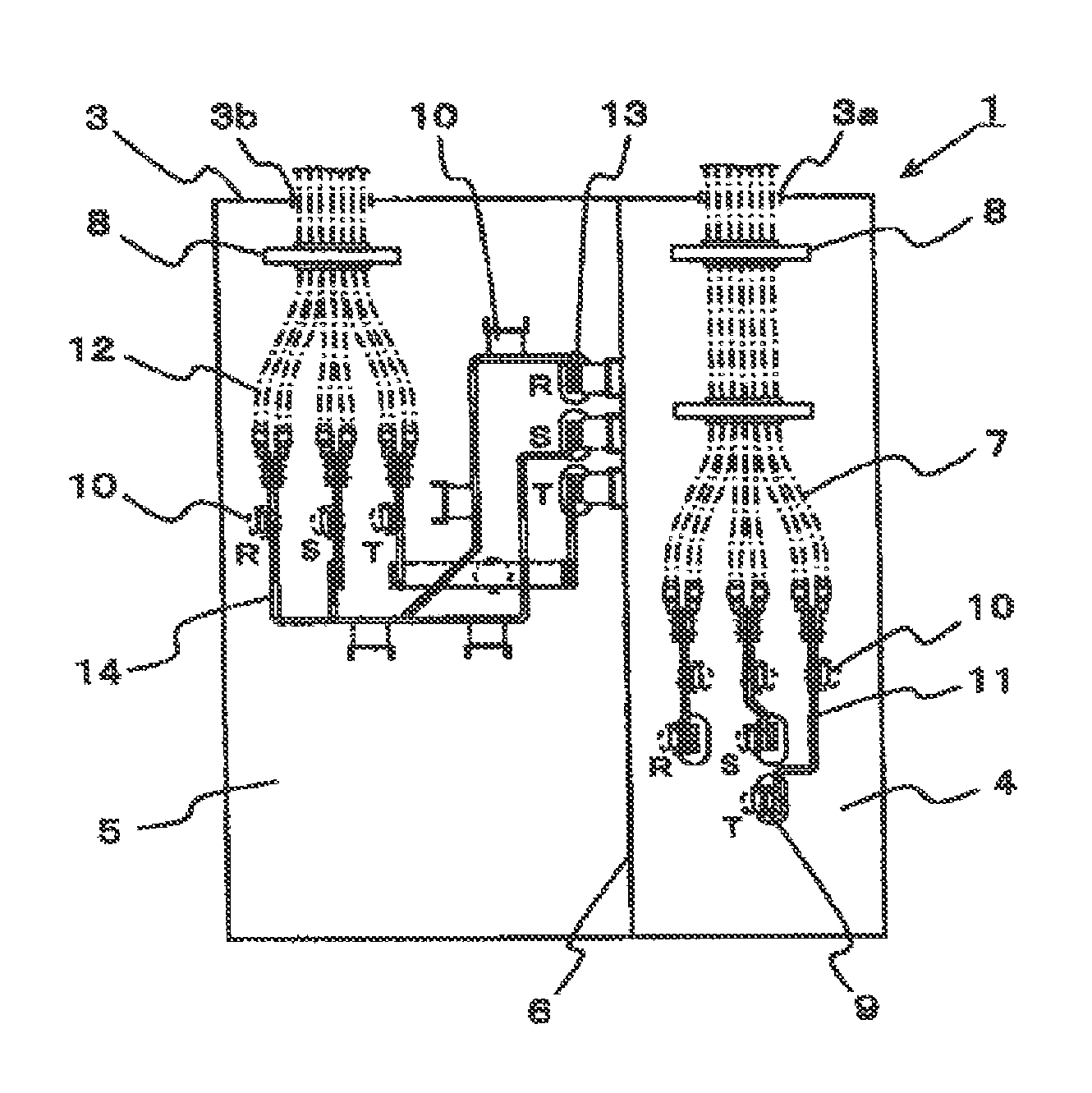

An enclosed switchboard includes: a device containing board which contains main circuit devices such as circuit breakers; and a cable connection board which is arranged side by side adjacently to the device containing board, and contains cables that input and output electric power to/from the main circuit devices. In the enclosed switchboard, the cable connection board is configured by one housing; and the inside of the housing is divided into two by a partition plate to be comparted to a cable lead-in compartment which contains lead-in side cables and a cable lead-out compartment which contains lead-out side cables.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H02B Class
- 244 Applications Filed
- 194 Patents Issued To-Date
- 79.51 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H02B Class
- 20 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 19, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 19, 2029 |
