Cryostat with magnet arrangement which includes an LTS portion and an HTS portion
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 19, 2017
Issued Date -
N/A
app pub date -
Sep 16, 2016
filing date -
Sep 18, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

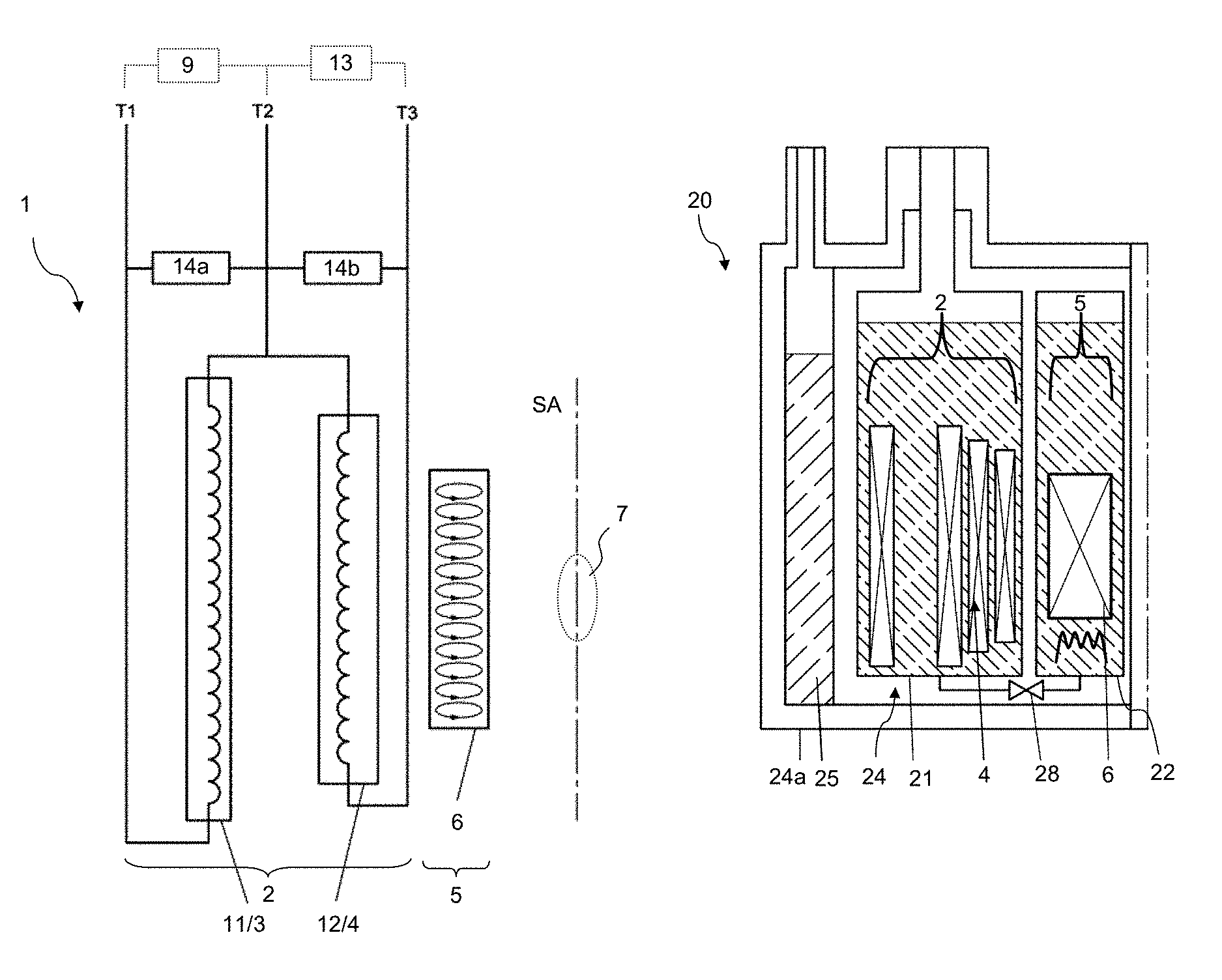

A cryostat includes a magnet arrangement for the generation of a magnetic field B0, the magnet arrangement comprising an LTS portion having at least one LTS section made from a conventional low-temperature superconductor and an HTS portion having at least one HTS section made from a high-temperature superconductor. The HTS portion is arranged radially within the LTS portion, and the cryostat is designed to control the temperature of the LTS portion and the HTS portion independently of one another, wherein the HTS portion is electrically isolated from the LTS portion, and is designed to be superconductingly short-circuited. The invention proposes a cryostat with magnet arrangement which enables a high magnetic field strength in a compact space and, at the same time, can be easily constructed.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H03K Class
- 2511 Applications Filed
- 2079 Patents Issued To-Date
- 82.80 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H03K Class
- 17.11 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 19, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 19, 2029 |
