Medicament sachet leak testing system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 19, 2017
Issued Date -
Sep 10, 2015
app pub date -
Feb 25, 2015
filing date -
Mar 4, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

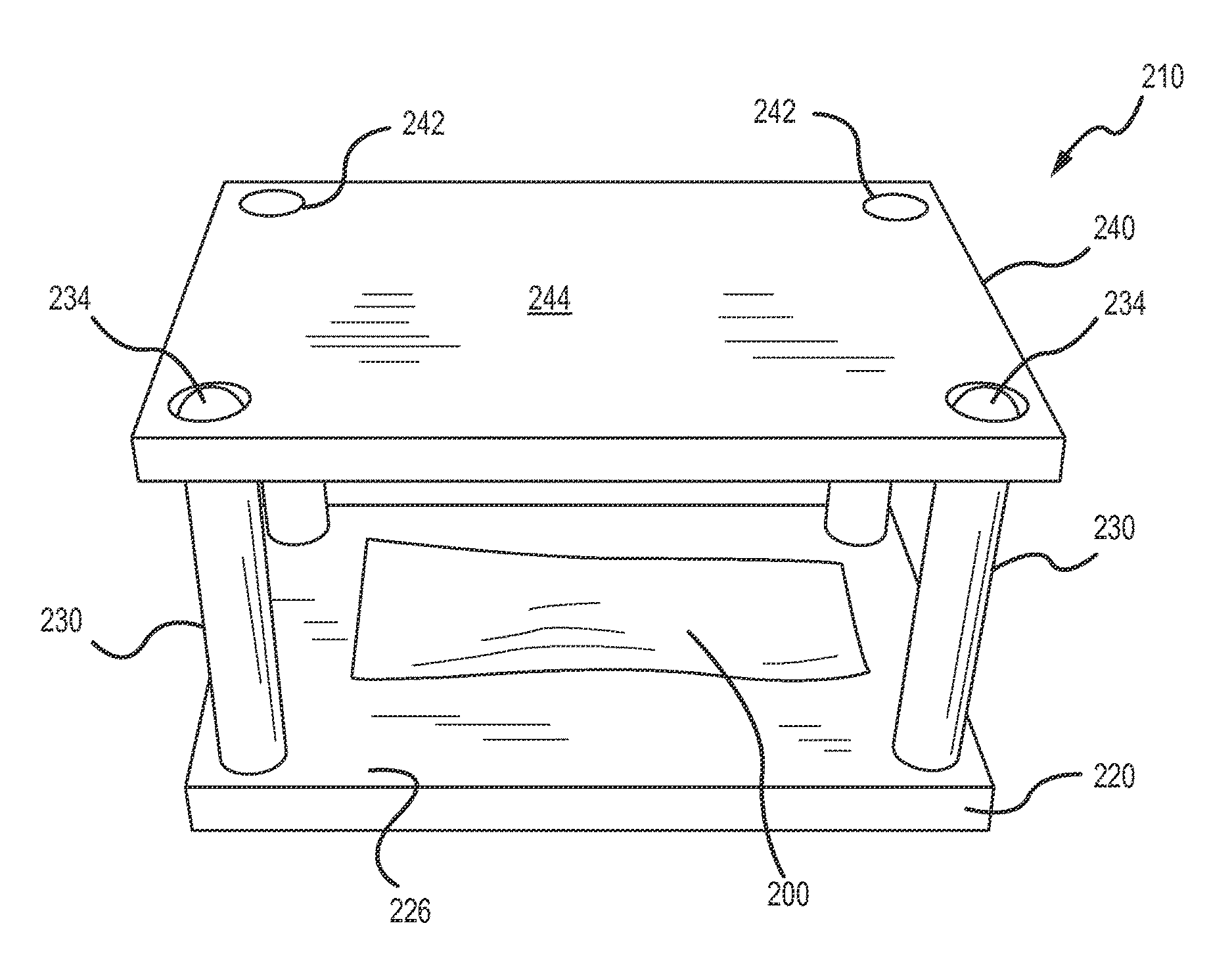

A leak testing system (210) for medicament sachets (200) is disclosed. The system (210) includes a base section (220) having a flat surface (226). A plurality of guide rods (230) extend from this flat surface (226) of the base section (220). A press section (240) incorporates a plurality of through-holes (242) that are used to movably mount the press section (240) on the noted guide rods (230). The press section (240) includes a flat surface (246) that is maintained in at least substantially parallel relation to the flat surface (226) of the base section (220). A medicament pouch (200) may be compressed between these flat surfaces (226, 246) of the base section (220) and the press section (240) by sliding the press section (240) along the guide rods (230) and in the direction of the base section (240). Multiple press plates can be added to adjust the force and weight to test for leaks.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- A61J Class
- 770 Applications Filed
- 558 Patents Issued To-Date
- 72.47 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- A61J Class
- 28.75 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 19, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 19, 2029 |
