Gas operating system for an automatic pistol-caliber firearm
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 19, 2017
Issued Date -
N/A
app pub date -
Oct 21, 2013
filing date -
Oct 21, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

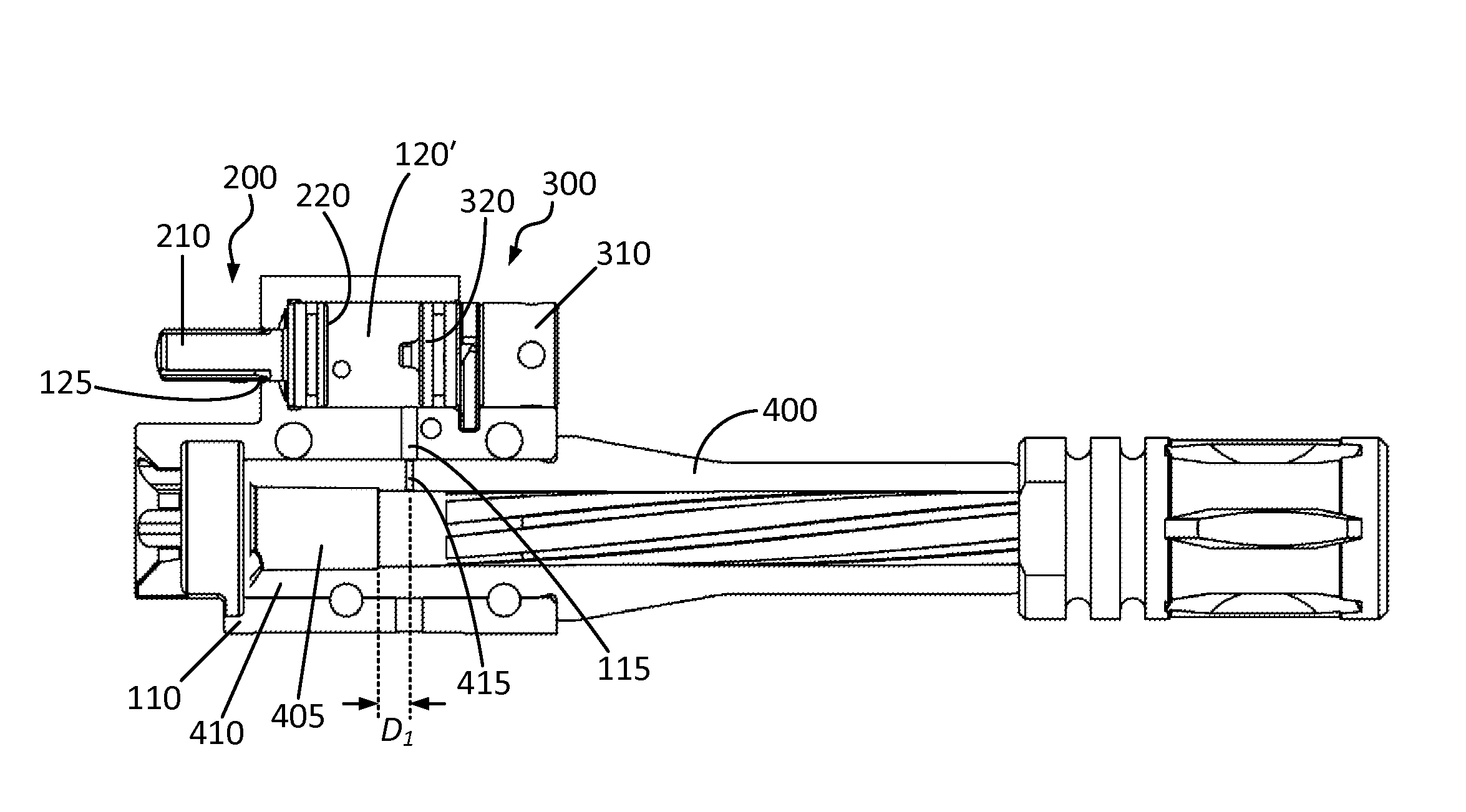

A gas operating system for automatic cycling of a pistol-caliber firearm is disclosed. The disclosed system may be configured to utilize gas produced by combustion of pistol cartridge propellant to automatically cycle the firearm. To that end, the disclosed system may include a gas block which routes high-pressure gas from the barrel through a gas port to a piston. The location of the gas port may be selected to lie within a region of the barrel which generally corresponds with the peak of the pressure curve associated with a given pistol cartridge. The high-pressure gas may impinge on the piston head, forcing the piston rearward and into physical contact with a short-stroke operating rod affixed to the bolt carrier of the host firearm. Consequently, the bolt carrier may be driven rearward, allowing for cycling of the firearm to progress.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2013 Application Filing Year
- F41A Class
- 397 Applications Filed
- 375 Patents Issued To-Date
- 94.46 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F41A Class
- 20.31 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 19, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 19, 2029 |
