Voltage controlled oscillator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 12, 2017
Grant Date -
Jan 19, 2017
app pub date -
Mar 11, 2015
filing date -
Mar 20, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

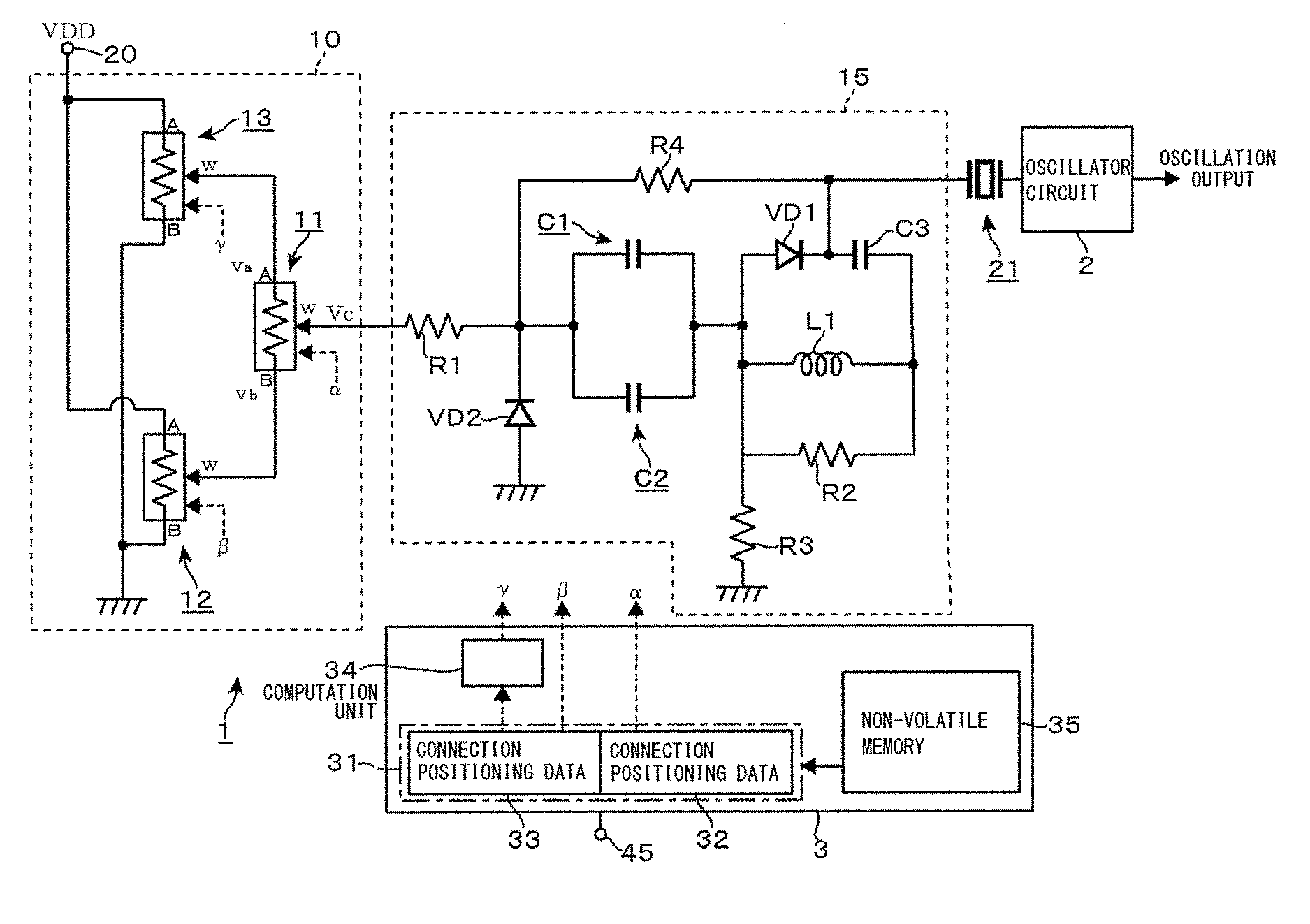

An oscillator includes a front side voltage divider, a rear side voltage divider, and an oscillation unit. The front side voltage divider includes a first resistor connected between a first and second potential sources, and a first output terminal configured to changeably connect to a connection position in the first resistor so as to vary an obtained output voltage. The rear side voltage divider includes a second resistor connected between the first output terminal and a third potential source; and a second output terminal configured to changeably connect to a connection position in the second resistor so as to vary an obtained output voltage. The oscillation unit includes a variable capacitance element with a capacitance varied according to the output voltage from the second output terminal. The oscillation unit varies an output frequency based on a variation in a resonance point associated with a variation in the capacitance.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H03L Class
- 642 Applications Filed
- 583 Patents Issued To-Date
- 90.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03L Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 12, 2029 |
