Dynamic tactile interface
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 12, 2017
Issued Date -
N/A
app pub date -
Jul 23, 2015
filing date -
Jan 4, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

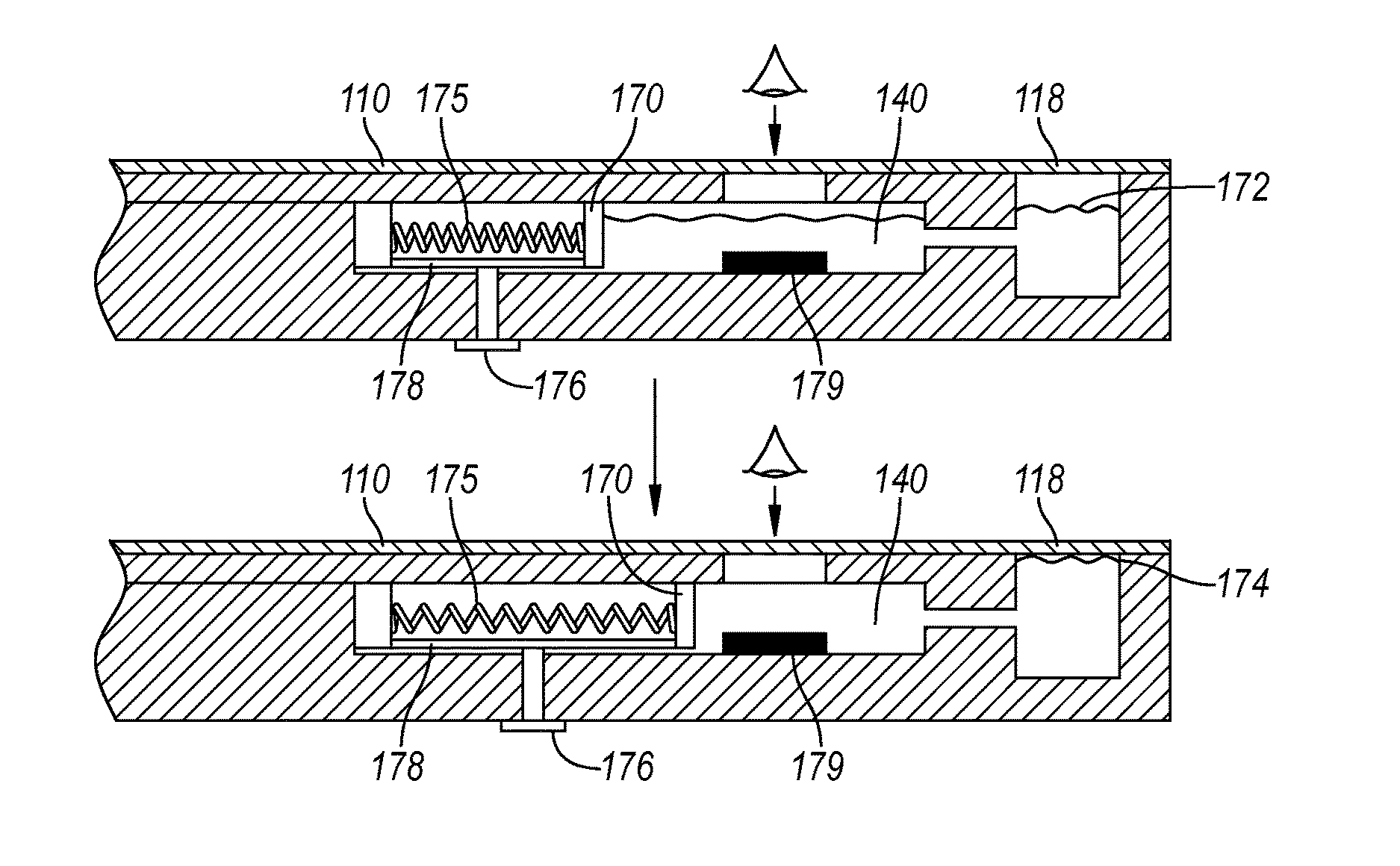

One variation of a dynamic tactile interface includes: a dynamic tactile layer including a deformable region and a first region, the deformable region operable between a retracted setting and an expanded setting, the first region adjacent the deformable region, the deformable region tactilely distinguishable from the first region in the expanded setting; a displacement device including a fluid vessel and an actuator, the actuator displacing fluid from the fluid vessel into the dynamic tactile layer to transition the deformable region from the retracted setting into the expanded setting and displacing fluid from the dynamic tactile layer into the fluid vessel, transitioning the deformable region from the expanded setting into the retracted setting; and a fluid compensation device coupled to the displacement device and adjusting a configuration of the displacement device in response to a change in a volume of fluid contained within the fluid vessel.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G06F Class
- 57200 Applications Filed
- 45873 Patents Issued To-Date
- 80.20 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- G06F Class
- 14.60 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 12, 2029 |
