Endless drive arrangement and improved two-armed tensioning system for same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 12, 2017
Issued Date -
N/A
app pub date -
Nov 23, 2016
filing date -
Oct 21, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

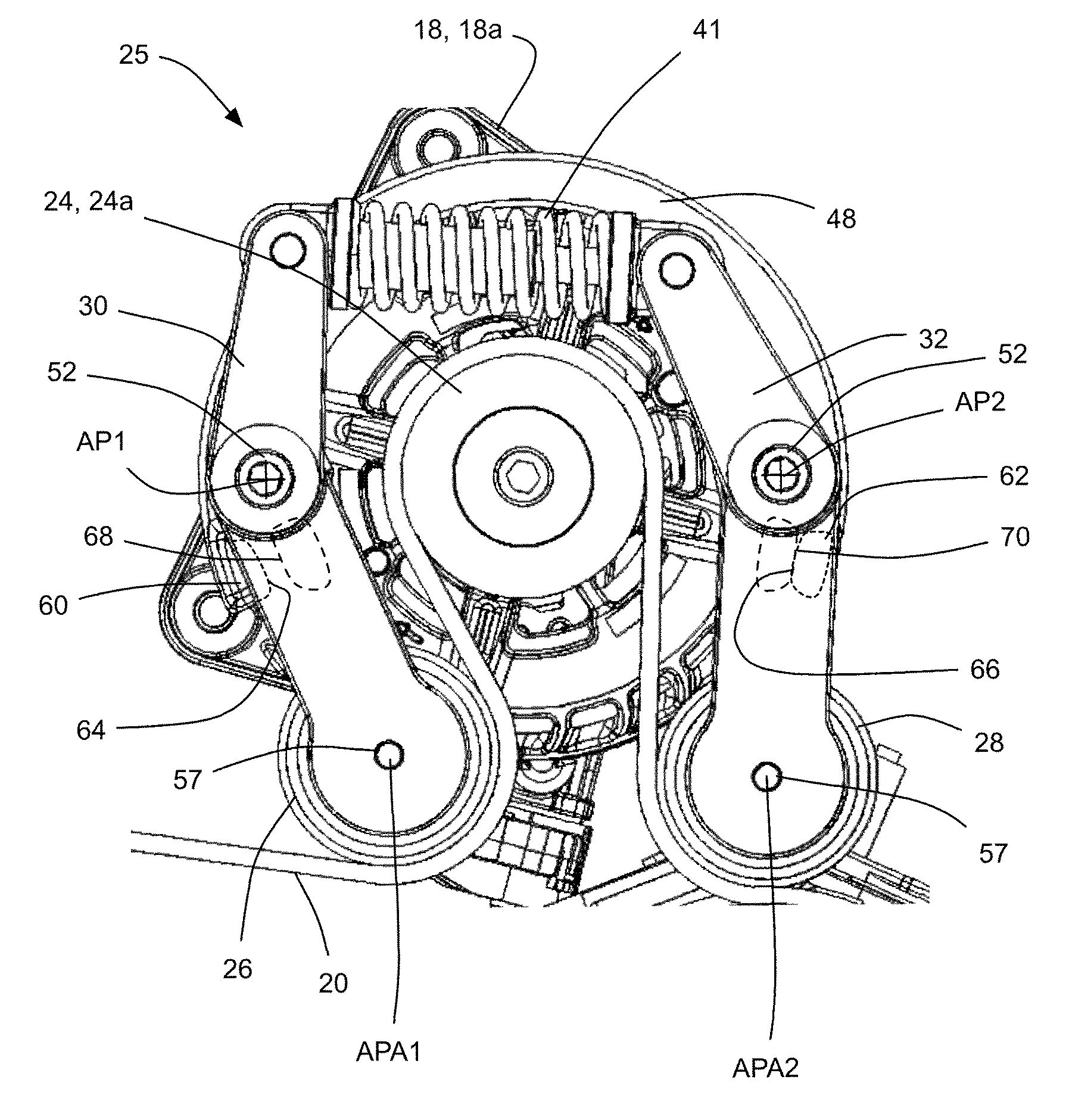

In an aspect, a tensioner is provided for tensioning a belt and includes first and second tensioner arms having first and second pulleys respectively. The first and second pulleys are configured for engagement with first and second belt spans, and are biased in first and second free arm directions respectively. A second tensioner arm stop is positioned to limit the movement of the second tensioner arm in a direction opposite the second free arm direction. The second tensioner arm stop is positioned such that, in use, the second pulley is engaged with the endless drive member while the second tensioner arm is engaged with the second tensioner arm stop throughout a first selected range of operating conditions.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- F16H Class
- 25.11 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 12, 2029 |
