Protector with sensor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 12, 2017
Grant Date -
May 26, 2016
app pub date -
Nov 13, 2015
filing date -
Nov 21, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

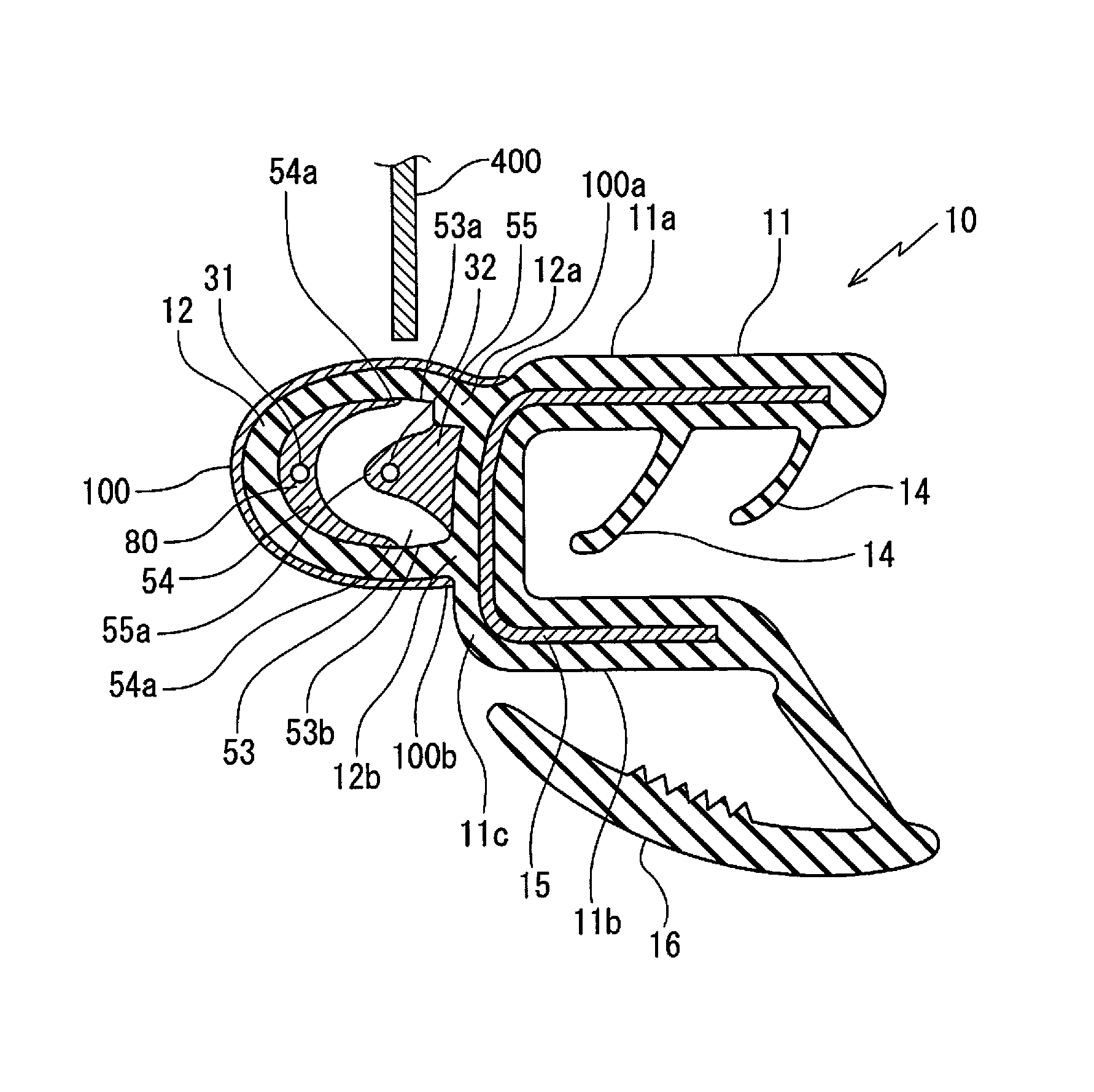

A protector with a sensor operatively coupled on a sliding door detects an object by touch between two conductive parts in a hollow part with a space therebetween. The two conductive parts including a conductive part on a lower part of the hollow part as a side of the installation base member and a conductive part on an upper part of the hollow part as a side of a top end are shaped and positioned in a manner that an inner-cabin side end and an outer-cabin side end of the space are continuously provided directly on an inner peripheral surface of the hollow part. A coating layer covers at least an outer peripheral surface of the outer coat of the hollow part having the inner-cabin side end and the outer-cabin side end of the space continuously provided directly on the inner peripheral surface thereof.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B60J Class
- 685 Applications Filed
- 557 Patents Issued To-Date
- 81.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B60J Class
- 16.11 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 12, 2029 |
