Flushing device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 12, 2017
Issued Date -
N/A
app pub date -
Apr 14, 2015
filing date -
Apr 16, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

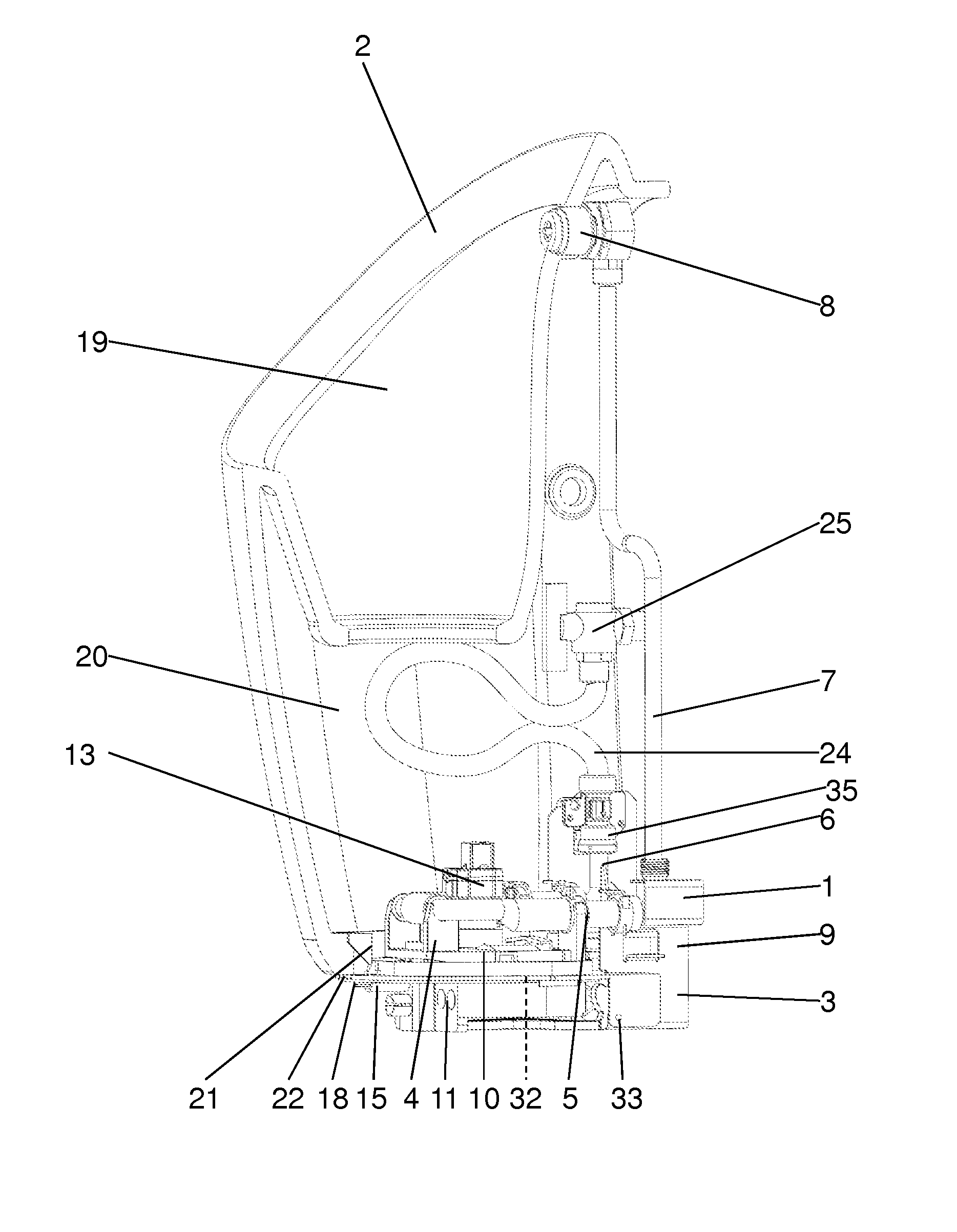

A flushing device for a urinal comprises a connection unit and a control unit, wherein the connection unit can be fixed to the urinal and the control unit can be connected to the connection unit via an interface. The connection unit comprises a connection pipe with an inlet, for connection to a mains system, and an outlet, a flushing pipe with an inlet and an outlet for connection to a nozzle arrangement for discharging flushing water into the urinal bowl of the urinal, and a support element on which the outlet of the connection pipe and the inlet of the flushing pipe are mounted in a fixed position. The control unit comprises a support element on which are arranged at least one control element, a pipe section with an inlet and an outlet and a flushing valve, which is arranged between the inlet and outlet and has a power-supply element.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E03D Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 12, 2029 |
