Bill aligning apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 12, 2017
Grant Date -
Feb 25, 2016
app pub date -
Nov 3, 2015
filing date -
May 10, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

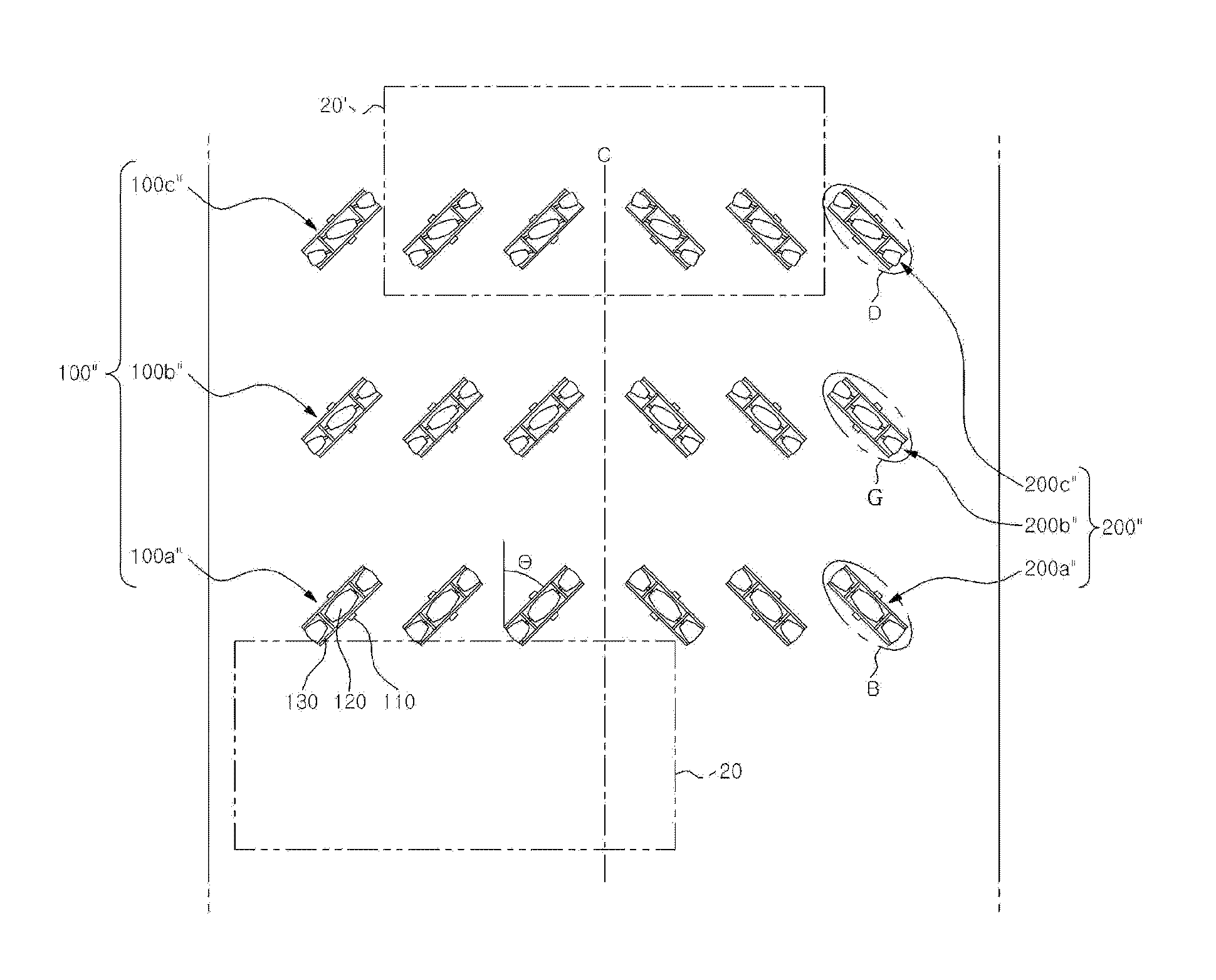

Disclosed herein is an apparatus for aligning a bill supplied to a transfer path with a center line of the transfer path. The apparatus may include: a first centering roller arranged at one side of the transfer path and applying a frictional force to a portion of the bill positioned at one side of the transfer path so that the bill is moved to the center line, the first centering roller having a first driven wheel formed in a border part to face one edge line of the transfer path; and a second centering roller arranged at the other side of the transfer path and applying a frictional force to another portion of the bill positioned at the other side of the transfer path so that the bill is moved to the center line, the second centering roller having a second driven wheel formed in a border part to face the other edge line of the transfer path.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G07D Class
- 266 Applications Filed
- 207 Patents Issued To-Date
- 77.82 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G07D Class
- 35.96 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 12, 2029 |
