Accessory drive gearbox for controlling the flaps of an aircraft
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 12, 2017
Issued Date -
N/A
app pub date -
Aug 27, 2013
filing date -
Sep 5, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

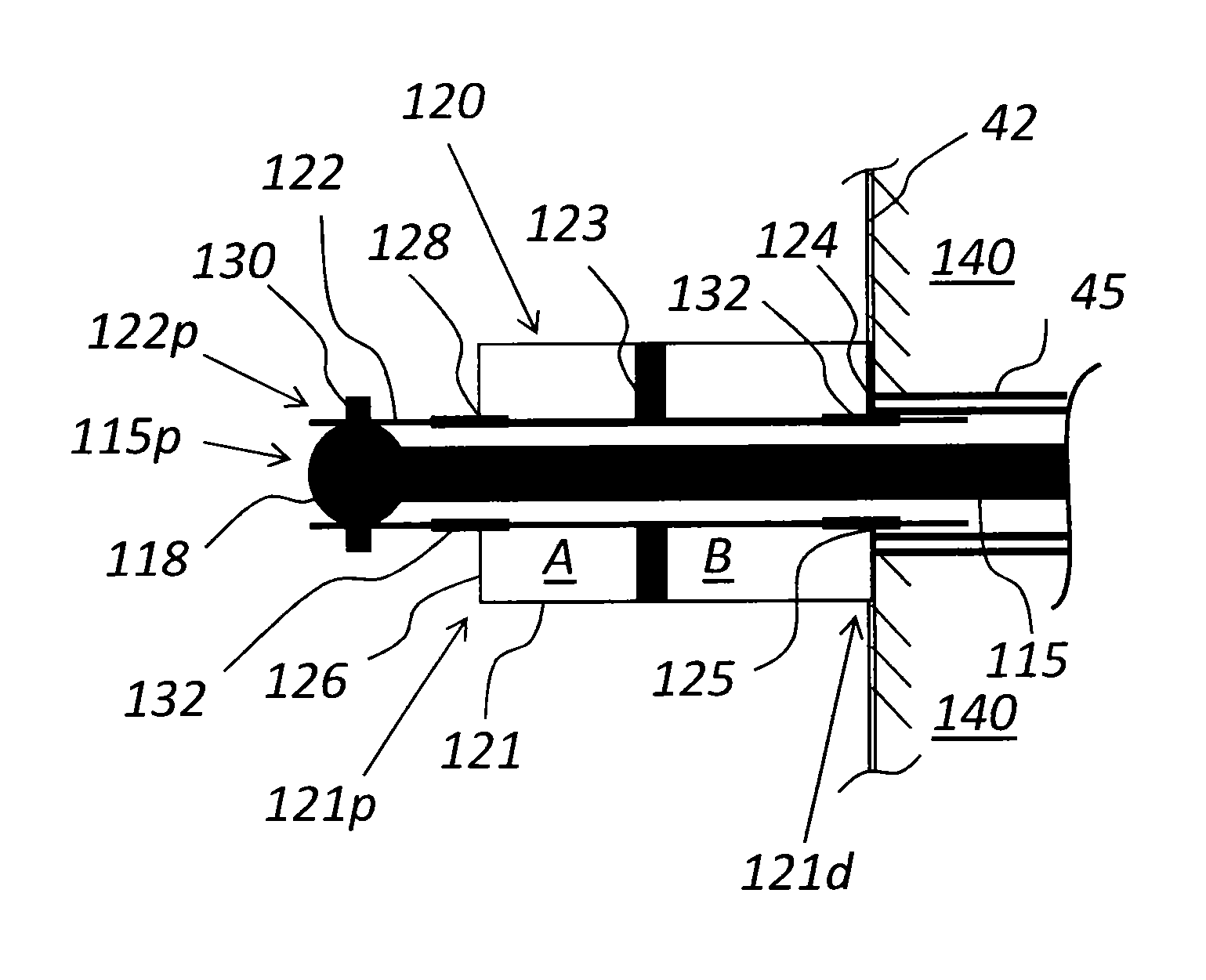

An accessory gearbox for a turboshaft engine of an aircraft, the gearbox including a casing, an aircraft wing flap control rod arranged so as to slide axially inside the gearbox and an actuator for driving the control rod which is mounted on the casing, the actuator including a hollow body, a piston which is arranged so as to move in translation inside the body and a piston rod which is connected to the piston and extends at least in part outside the body of the actuator the piston rod being connected to the control rod, wherein the actuator is arranged between the connection of the piston rod and the control rod, and the casing of the gearbox.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B64C Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 12, 2029 |
