Deflector structure for sunroof device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 12, 2017
Grant Date -
Jun 29, 2017
app pub date -
Apr 8, 2015
filing date -
Jun 6, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

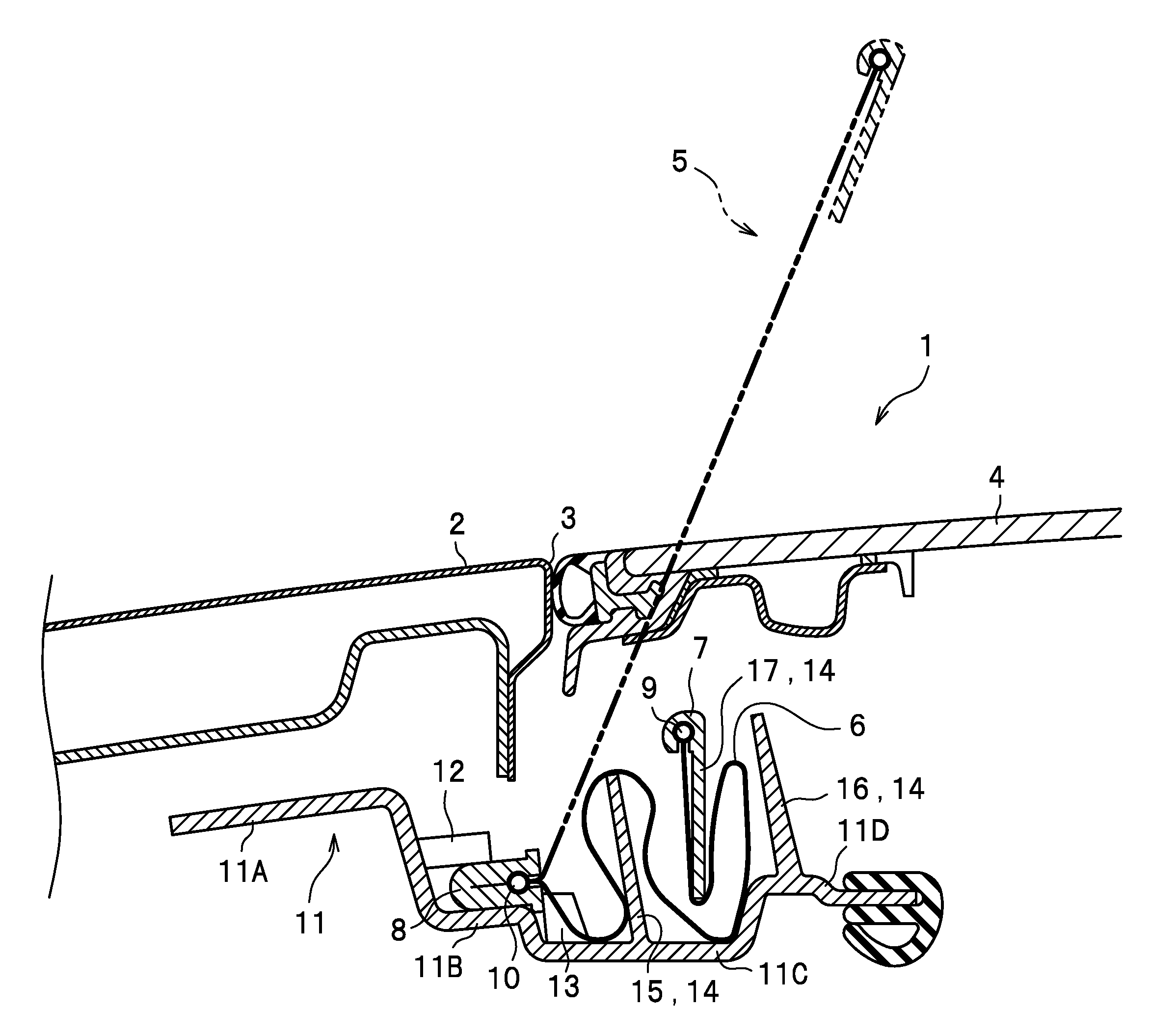

A deflector structure for a sunroof device includes: a thinned-cloth member (6) having a lower side connectedly fixed to a front frame (11), the thinned-cloth member being configured to be stretchedly developed to regulate a traveling air while a roof is opened and to be foldedly stored while the roof is closed; and a storage guide member (14) configured to guide folding motion of the thinned-cloth member (6). The storage guide member (14) includes: a front-side first upright wall (15) and a rear-side second upright wall (16) provided upright on the front frame (11) at the rear of a fixation portion of the front frame (11) and the thinned-cloth member (6); and a guide wall (17) formed on an upper holder (7) along a rear surface of an upper portion of the thinned-cloth member stretchedly developed. Thereby, a folded shape of the thinned-cloth member (6) is stabilized.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B60J Class
- 685 Applications Filed
- 557 Patents Issued To-Date
- 81.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60J Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 12, 2029 |
