Spring for sun visor and support device for sun visor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 12, 2017
Issued Date -
N/A
app pub date -
Nov 13, 2013
filing date -
Nov 13, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

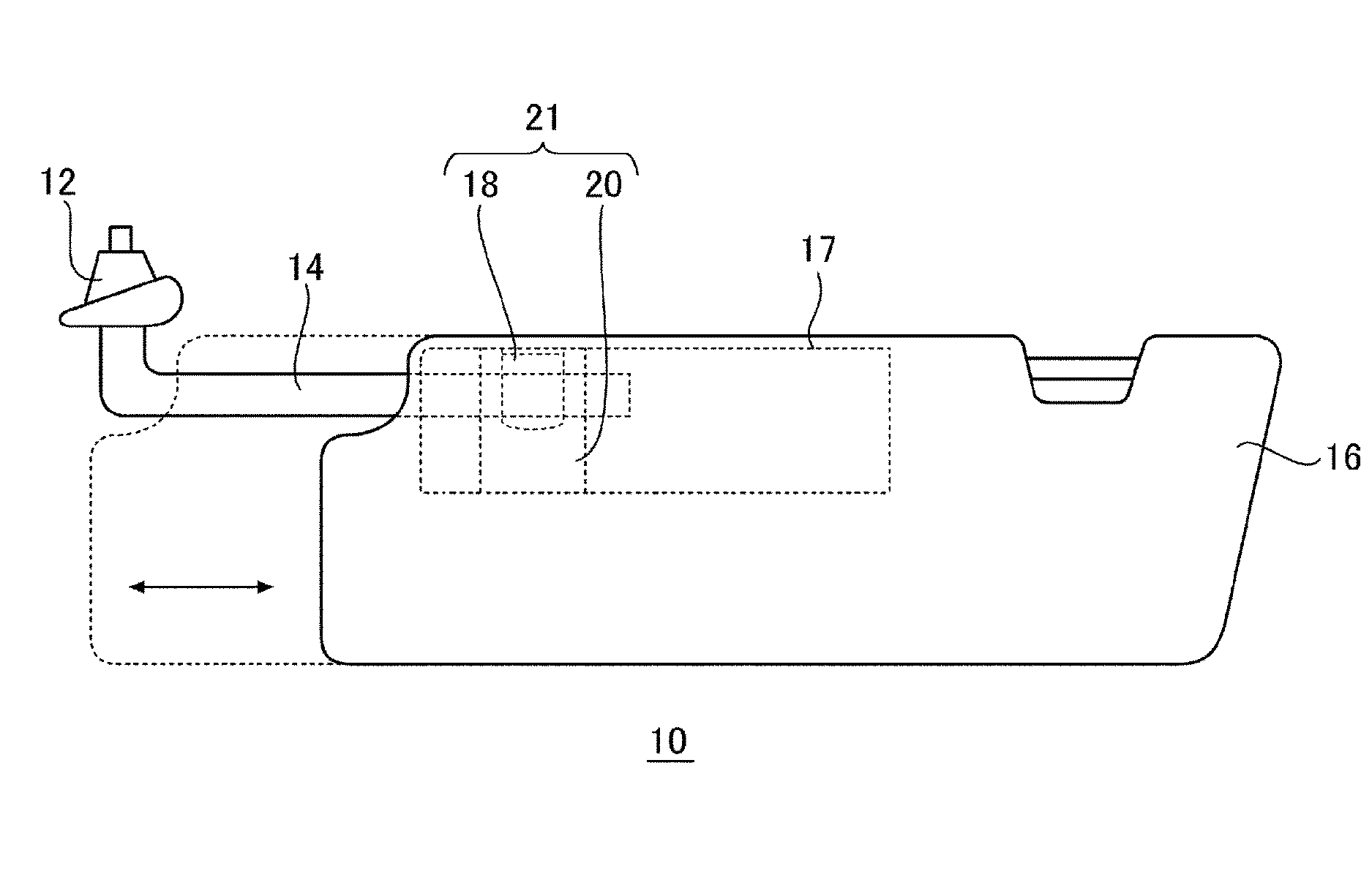

A spring for sun visors includes a torque application section that extends from a holding section and applies torque when a main section is rotating. The holding section has a flat section that receives torque from a shaft. The torque application section has a first spring piece extending from one end of the holding section and a second spring piece extending from the other end of the holding section and being bent so as to fold back. The first spring piece has a first tip section that includes overhanging sections that are narrower than the width of the holding section. The second spring piece has a second tip section that is arranged so as to overlap on the outside of the overhanging sections. The overhanging sections are provided in an area extending from the torque receiving section to the first tip section.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B60J Class
- 479 Applications Filed
- 420 Patents Issued To-Date
- 87.69 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60J Class
- 16.11 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 12, 2029 |
