Injection molded product and method for manufacturing same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 12, 2017
Grant Date -
Mar 5, 2015
app pub date -
Mar 26, 2013
filing date -
Apr 2, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

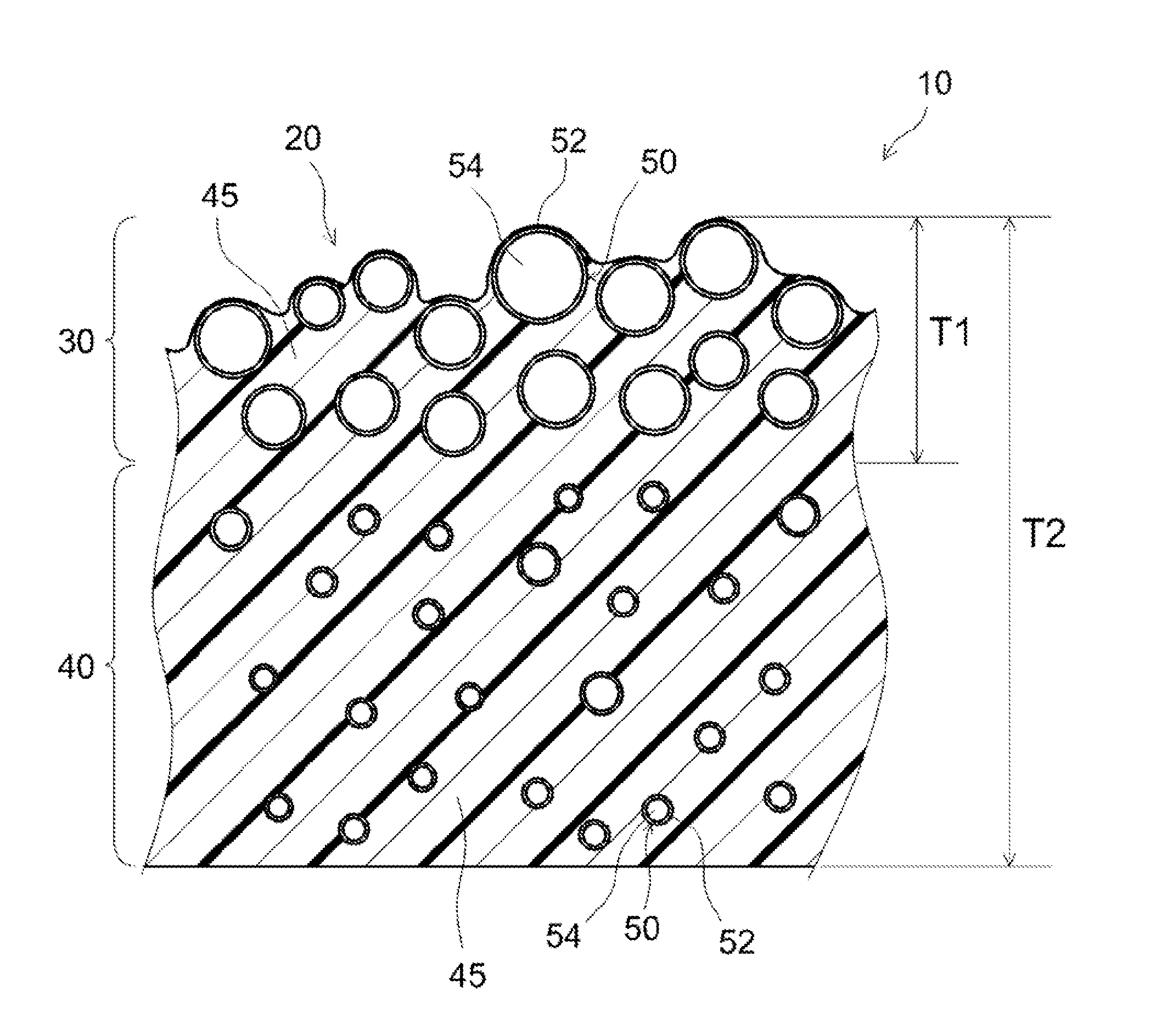

In an injection molded product of the invention, an unevenness forming portion having unevenness formed by thermal expansion of thermally expandable capsules is formed. The injection molded product includes a highly expanded portion that is formed at a surface side of the unevenness forming portion in a thickness direction of the injection molded product and in which the thermally expandable capsules are thermally expanded, and a main body portion that is a portion adjacent to the highly expanded portion in the thickness direction and in which the thermally expandable capsules are substantially not thermally expanded. The thickness of the highly expanded portion is a half or smaller than the thickness of the injection molded product in the unevenness forming portion, and a polymer material of the highly expanded portion and a polymer material of the main body portion are the same polymer material.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- C08J Class
- 1321 Applications Filed
- 1140 Patents Issued To-Date
- 86.30 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- C08J Class
- 34.68 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 12, 2029 |
