Sliding seat device with surrounding structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 12, 2017
Grant Date -
N/A
app pub date -
Aug 11, 2016
filing date -
Aug 11, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

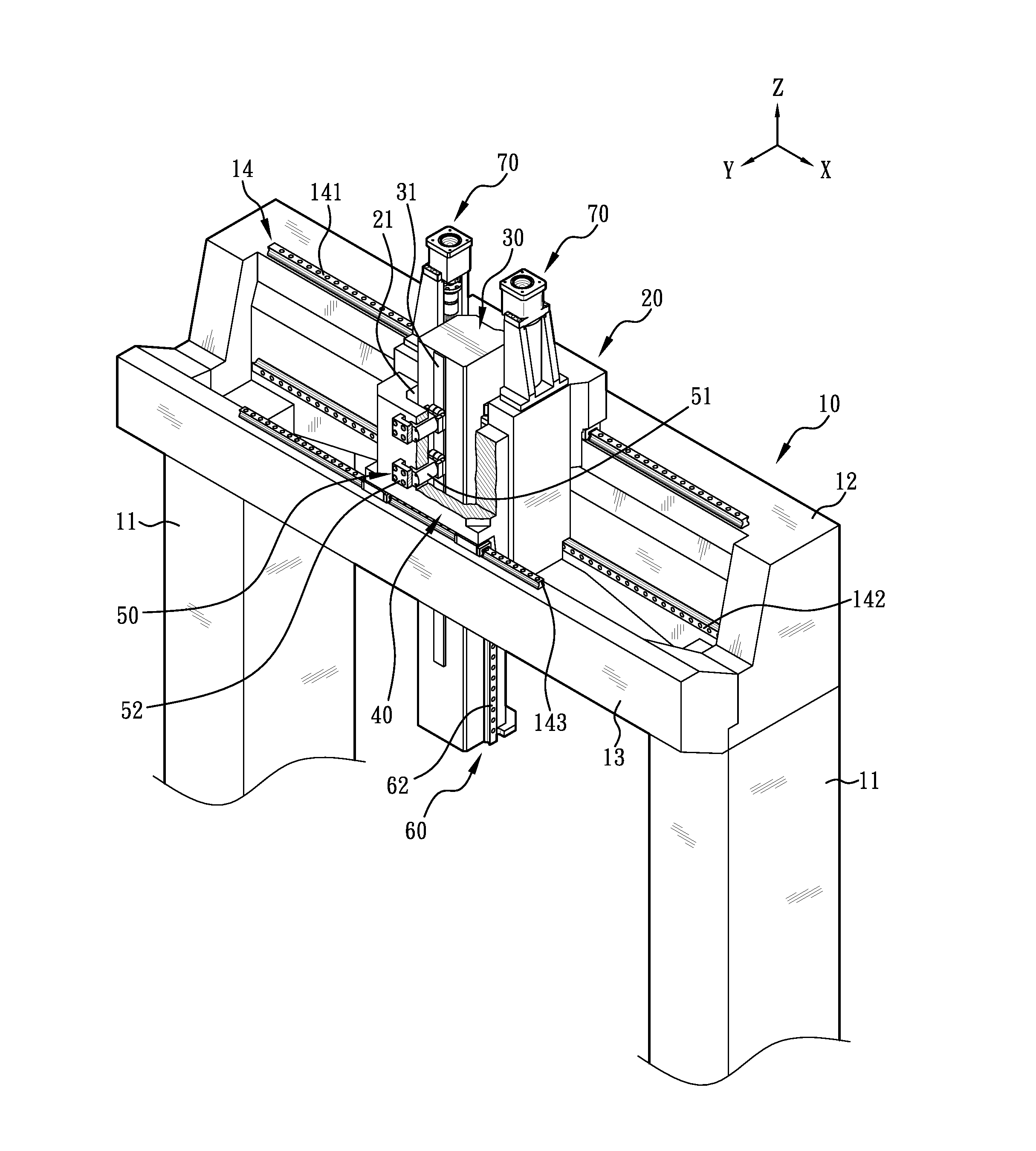

A sliding seat device with surrounding structure, which is applied to a bridge type machining center, includes a main body provided with a sliding portion; a sliding seat slidingly disposed on the sliding portion and reciprocating along an X-axis direction of the main body, the sliding seat provided with a housing; a sliding pillar passing through the housing and reciprocating along a Z-axis direction of the main body, one side of the sliding pillar provided with a protruding rail disposed along the Z-axis direction of the main body; an assistant plate connected with the sliding seat and facing the protruding rail; and an adjusting unit passing through the assistant plate and pushing against the protruding rail, the adjusting unit correcting a vertical bias between the sliding pillar and the main body.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B23Q Class
- 644 Applications Filed
- 459 Patents Issued To-Date
- 71.28 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B23Q Class
- 31.14 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 12, 2029 |
