Applicator for inserting an implant
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 12, 2017
Issued Date -
N/A
app pub date -
Jan 20, 2006
filing date -
Jan 24, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

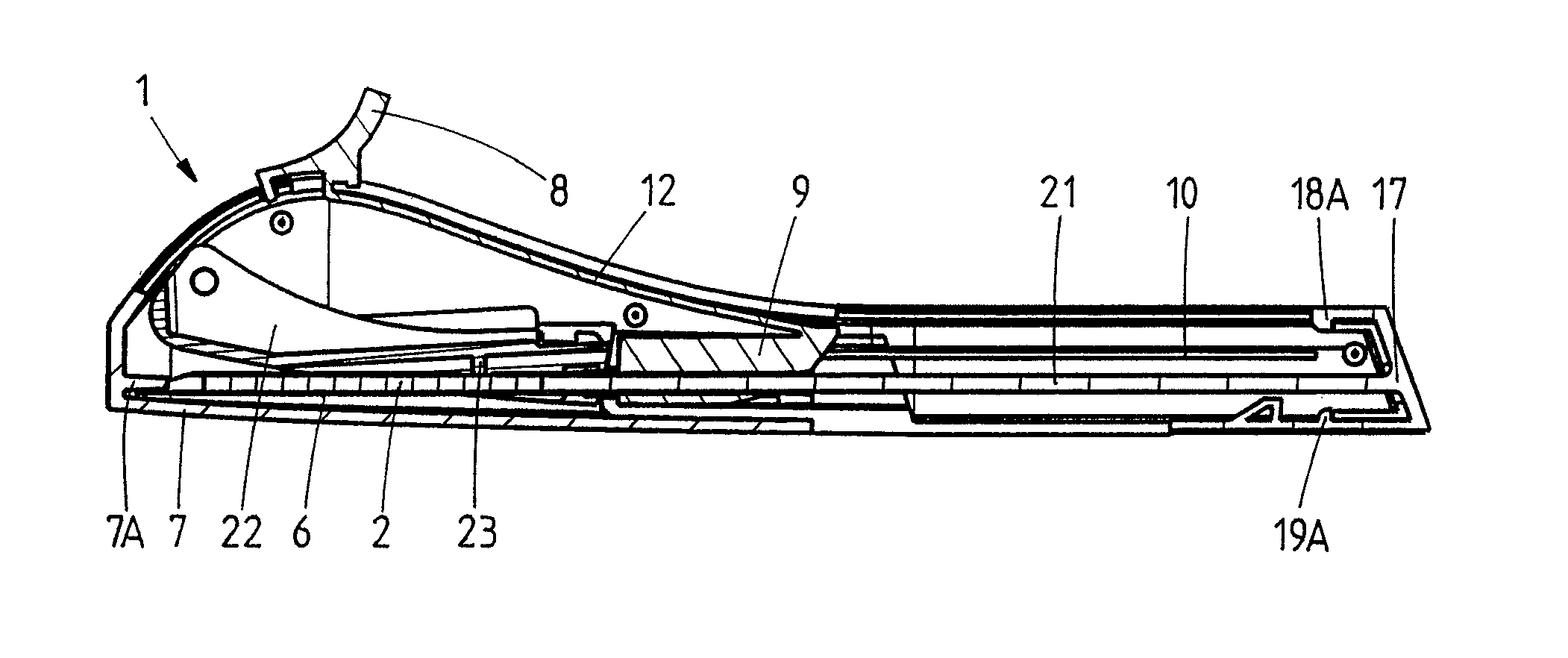

The invention pertains to an applicator (1) for inserting an implant, in particular a rod-like implant (2) containing an active substance, under the skin of a human or animal, comprising a housing (3), a cannula (6), a cannula holder (9), an implant (2) accommodated inside the cannula (6) and/or the cannula holder (9), a protective cover (7) for the cannula (6), and a mechanism (22, 23, 7) which, at least after the cover (7) has been removed from the cannula (6), secures the implant (2) inside the cannula (6) and/or cannula holder (9). The mechanism (22, 23, 7) disengages the implant (2) during insertion of the cannula (6) or after the cannula (6) has been inserted. Substantially no lateral force will be exerted during the expelling of the implant from the cannula.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- A61M Class
- 15.86 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 12, 2029 |
