Lithium battery cell structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 5, 2017
Issued Date -
N/A
app pub date -
Apr 23, 2015
filing date -
Apr 23, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

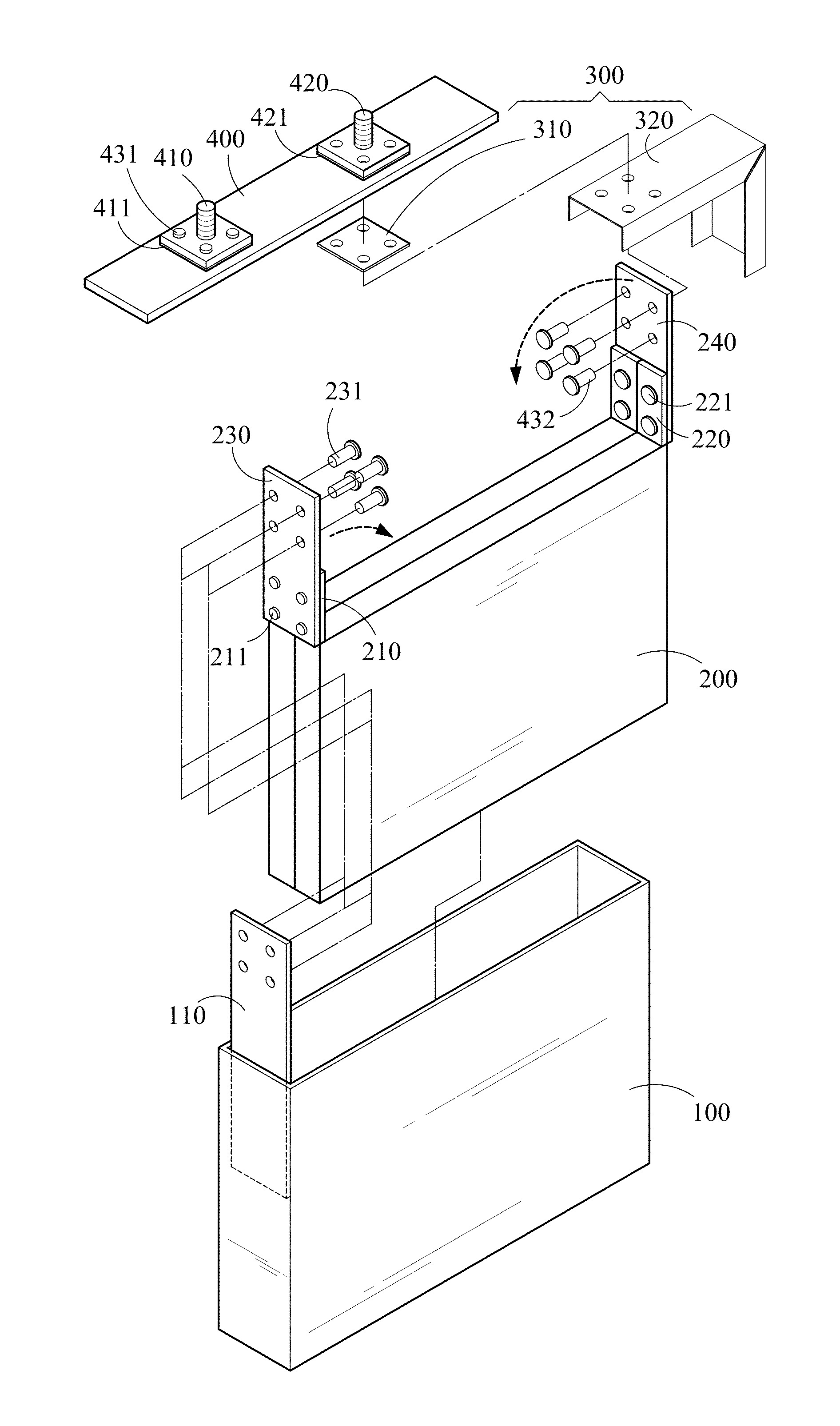

A lithium battery cell structure is provided. A first-electrode conduction portion and a second-electrode conduction portion that are exposed outward are respectively provided on two sides of a soft package lithium battery inside the metal housing. The first-electrode conduction portions are respectively electrically connected and fixed to a first-electrode conductive sheet, and the first-electrode conductive sheet is electrically connected and fixed to a housing conductive sheet that is connected to the metal housing. The second-electrode conduction portions are respectively electrically connected and fixed to a second-electrode conductive sheet, and an other end of the second-electrode conductive sheet is electrically connected and fixed to the second electrode end. By adjusting the design of electrical connection between extending portions and the soft package lithium battery and the housing, the lithium battery cell is enabled to have better electrical conductivity and a better heat dissipation effect, and the sealing procedure made simpler.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H01M Class
- 5536 Applications Filed
- 4391 Patents Issued To-Date
- 79.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01M Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 5, 2029 |
