Positioning mechanism for aligning an optical device and an image sensor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 5, 2017
Grant Date -
Oct 17, 2013
app pub date -
Apr 13, 2012
filing date -
Apr 13, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Calculated Rating
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

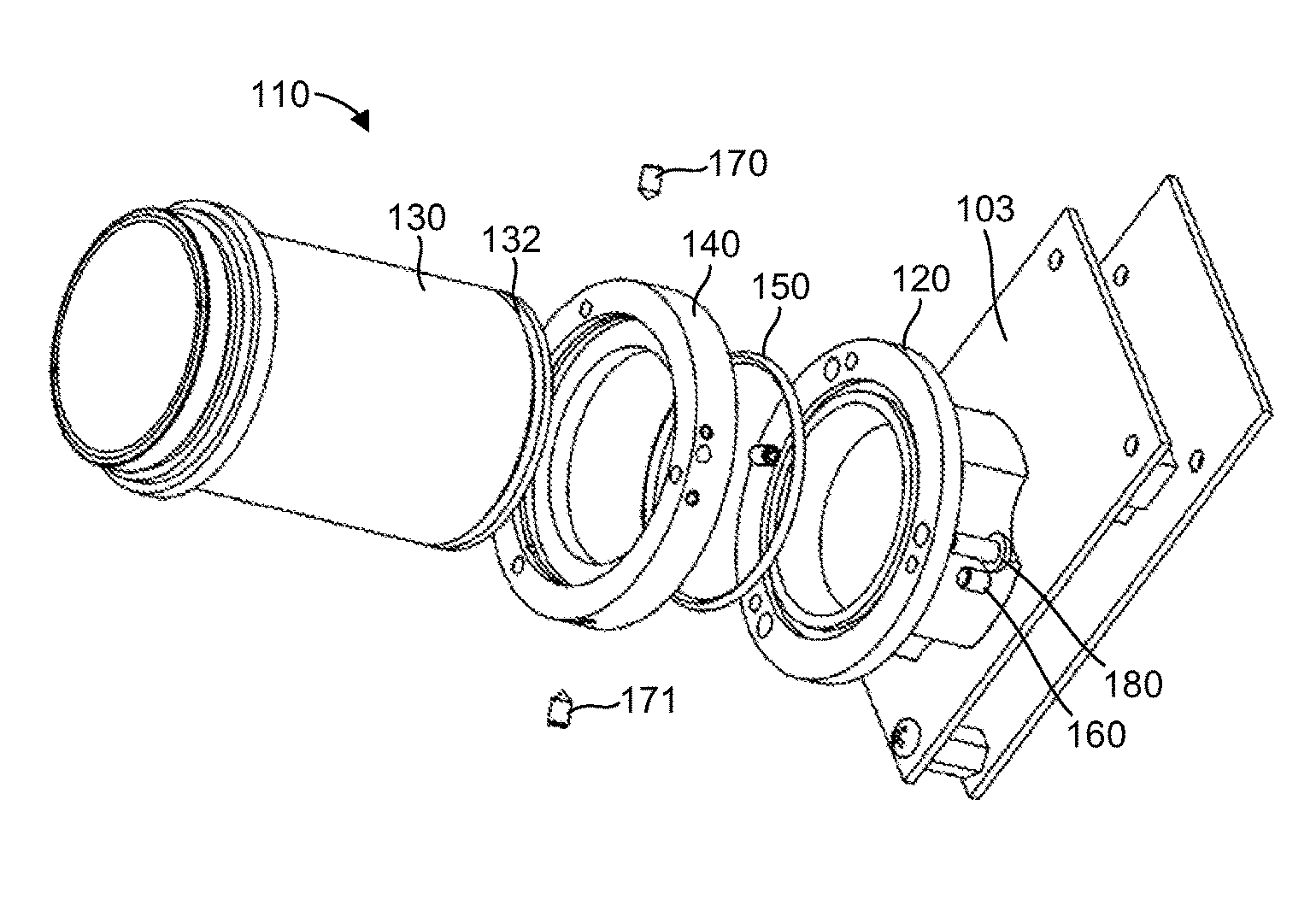

A positioning mechanism for aligning an optical device and an image sensor is disclosed. The positioning mechanism includes a base operable with a support for an image sensor, a tube operable with an optical device, and an adjuster disposed between the base and the tube. In one aspect, the adjuster is positionable relative to the base in a translational degree of freedom and two rotational degrees of freedom. In another aspect, the tube is positionable relative to the adjuster in two translational degrees of freedom, and a rotational degree of freedom.
