Mapping UV index data measured by UV dosimetry system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 5, 2017
Issued Date -
N/A
app pub date -
Apr 21, 2014
filing date -
Apr 24, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

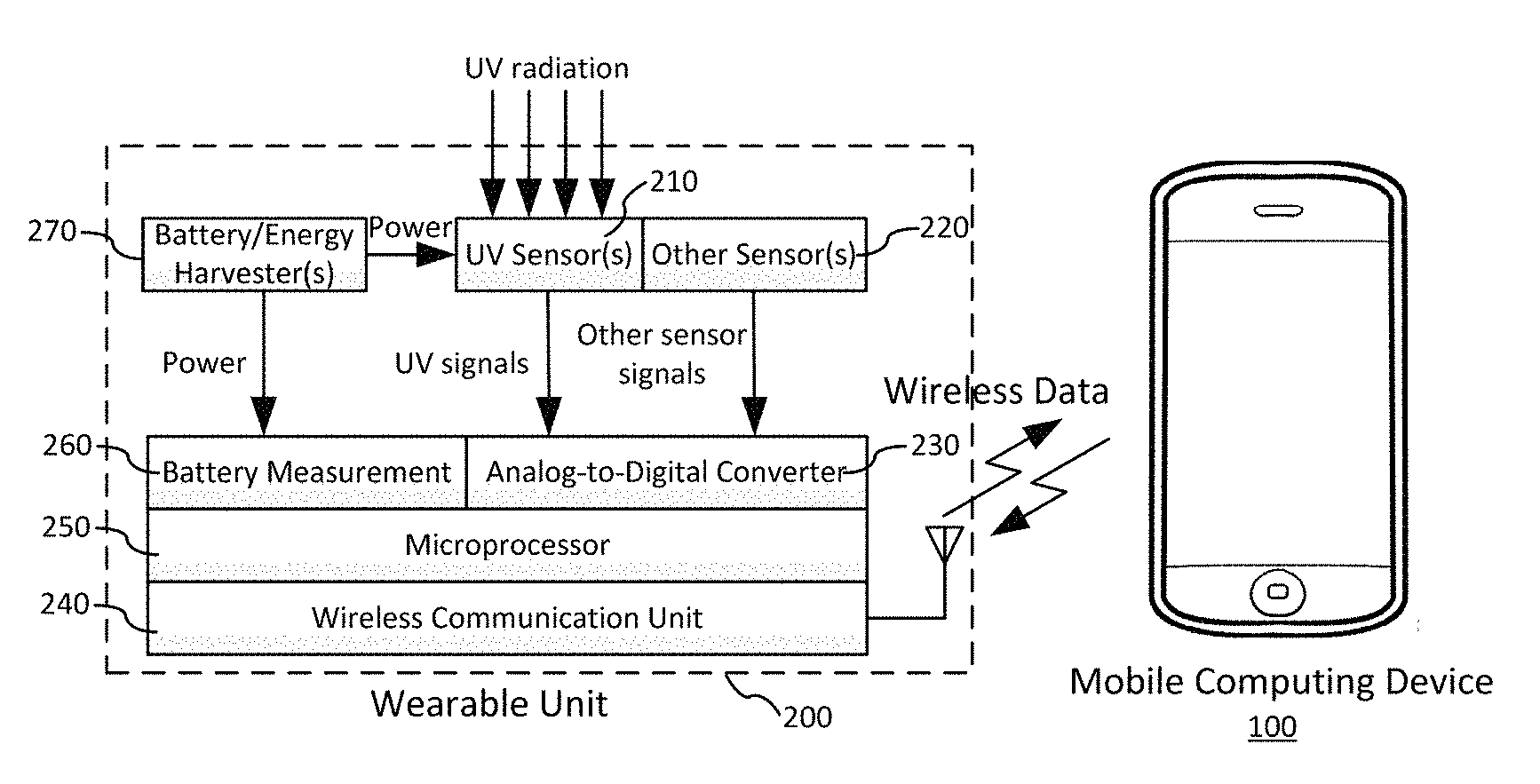

A UV dosimetry system comprises a wearable unit and a mobile computing device. The wearable unit measures the UV irradiance intensity and wirelessly communicates with the mobile computing device. The UV dosimetry system supports multi-user control and can link one mobile computing device with multiple wearable units. The UV dosimetry system processes the measured UV irradiance intensity to calculate the UV index (UVI) and the sensor site specific UV dose. It can also calculate the total absorbed UV dose and vitamin D production by taking into account user specific factors. The UVI data measured by a plurality of UV meters such as the disclosed UV dosimetry system are crowd sourced to a remote server together with the location and time data of the measurement. The remote server excludes invalid UVI measurement and generates UVI maps showing time-varying distribution of UVI data at different locations.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G01J Class
- 1566 Applications Filed
- 1387 Patents Issued To-Date
- 88.57 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- G01J Class
- 18.21 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 5, 2029 |
