Combined reflex and laser sight with elevation macro-adjustment mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 5, 2017
Issued Date -
N/A
app pub date -
Oct 13, 2015
filing date -
Oct 13, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

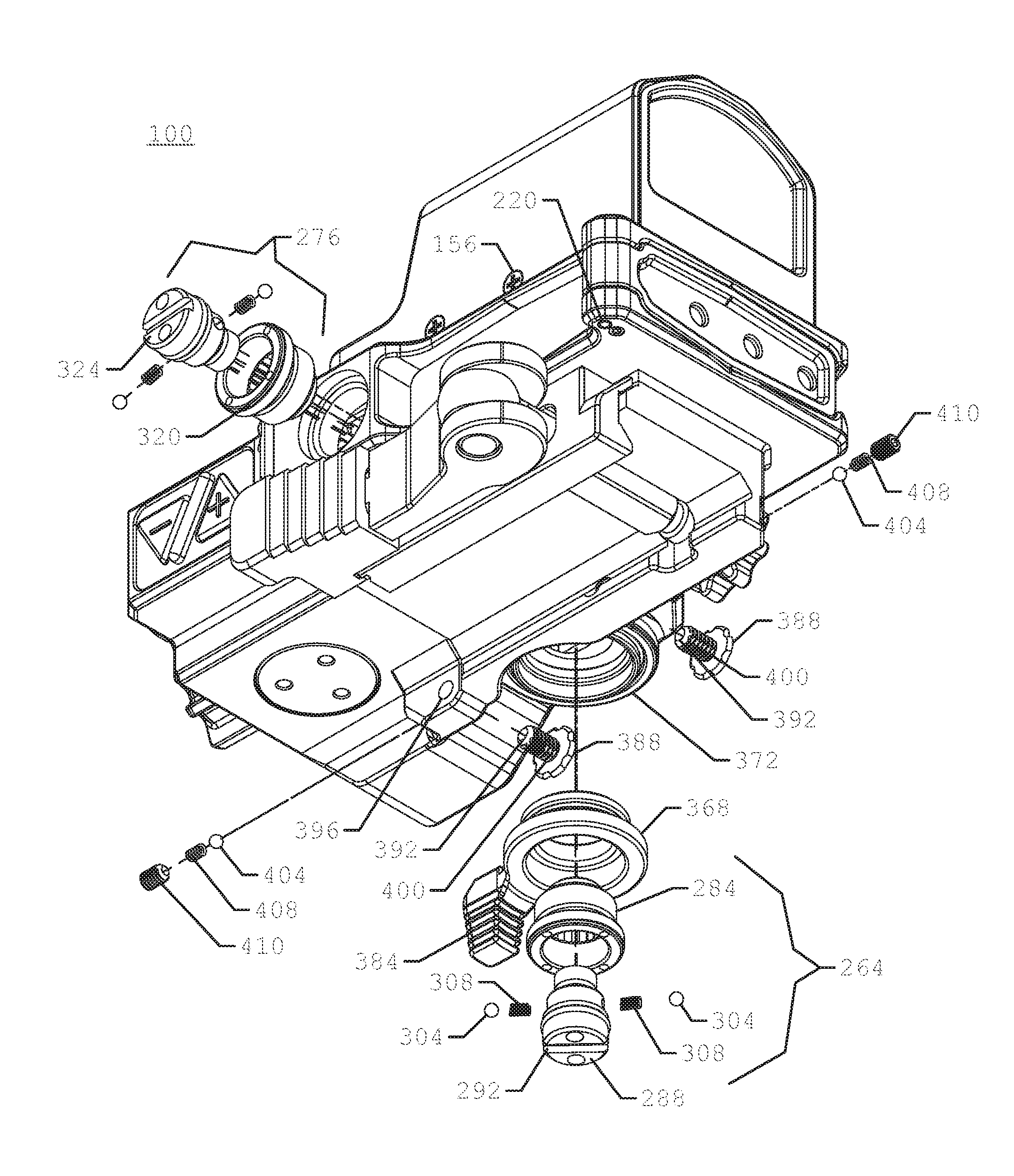

A combined reflex and laser sighting device is provided. In one aspect, the reflex sight and one or more laser elements are coaligned, such that both the reflex sight and the laser sight can be sighted in or boresighted to a weapon together in a single operation. In another aspect, one or more laser elements are mounted within a laser bench and aligned with a reflex sight attached to the laser bench. In yet another aspect, a plurality of laser elements are provided within the laser bench and are coaligned with each other and the reflex sight. In another aspect, a mounting block with yielding vertical and horizontal webs is provided to allow windage and elevation adjustments to be made to the reflex sight and laser elements together. In still another aspect, an elevation macro-adjustment mechanism is provided to provide a simple adjustment that that realign the sight to a weapon to accommodate different shooting scenarios, such as different velocity rounds, different target distances, and elevational differences of the shooter's vantage point.
