Apparatus for converting energy from fluid flow
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 5, 2017
Grant Date -
Jun 18, 2015
app pub date -
Jun 20, 2013
filing date -
Jun 20, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

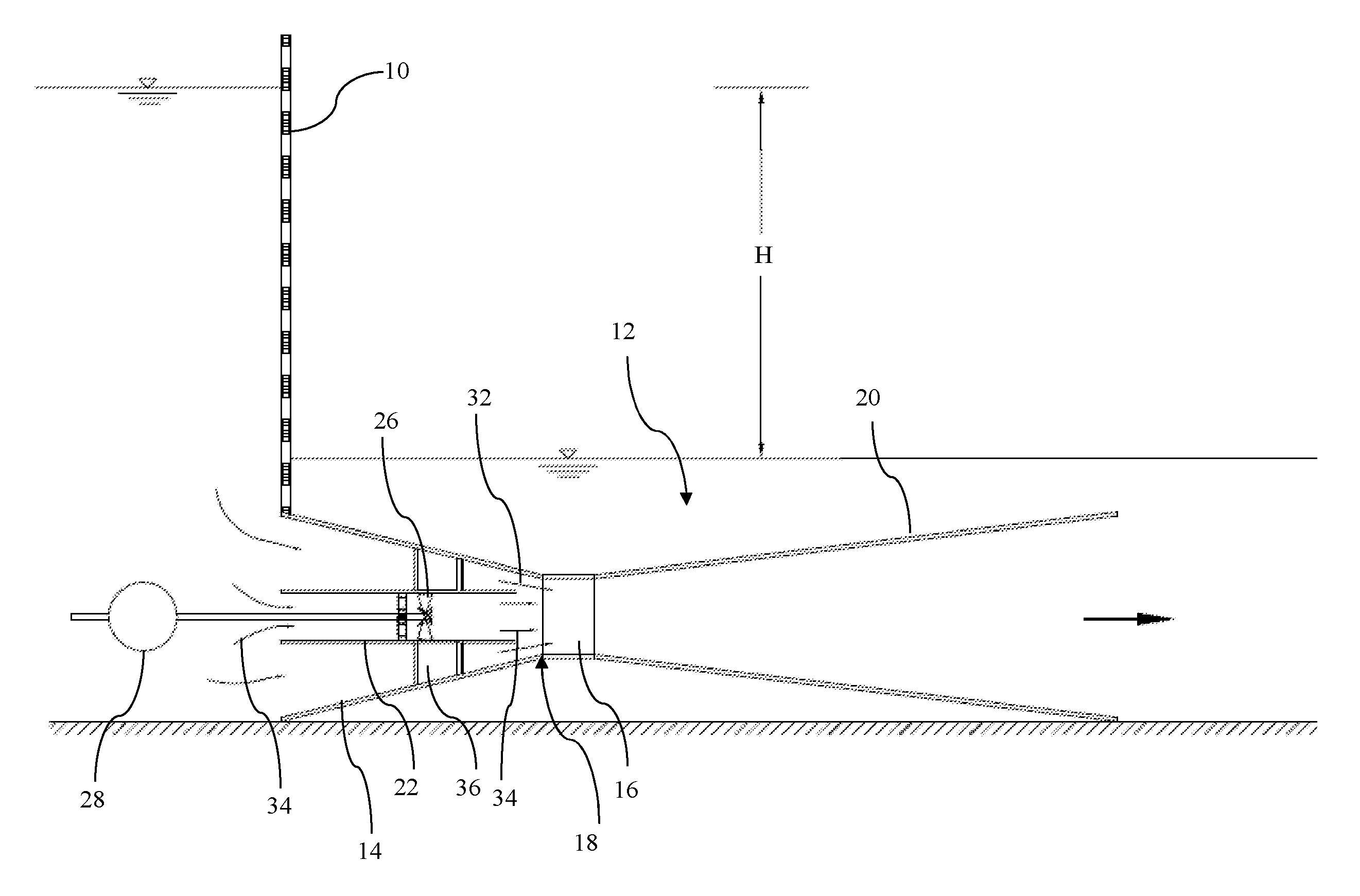

An apparatus for generating electricity from water flow comprises a convergent section, a diffuser section and tube for locating within a body of water. The convergent section is connected to a first end of a mixing chamber such that a venturi is defined between the end of the convergent section and the mixing chamber. The diffuser section is connected to a second end of the mixing chamber, the diffuser section configured such that in use the pressure at the exit of the diffuser section is greater than the pressure at the venturi. At least part of the tube is located in the convergent section, such that an annulus is defined between the tube and the convergent section, to form a first flow passage. The tube defines a second flow passage within the tube; and a turbine connectable to a generator is located within the tube.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F03B Class
- 268 Applications Filed
- 237 Patents Issued To-Date
- 88.44 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- F03B Class
- 19.82 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 5, 2029 |
