Nozzle for a two-chamber container for mixing two components and applying the mixture
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 5, 2017
Grant Date -
Oct 15, 2015
app pub date -
Dec 10, 2013
filing date -
Dec 10, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

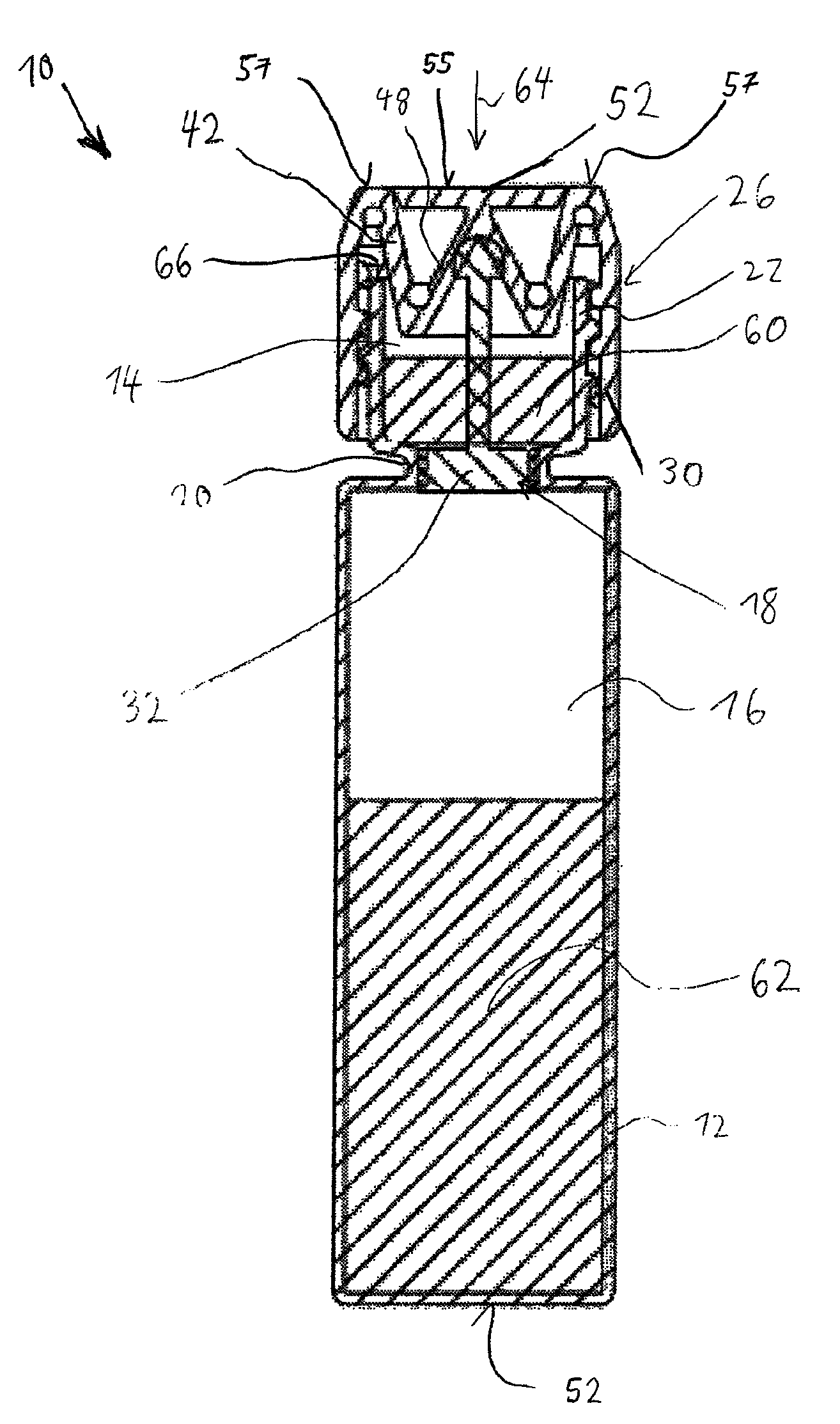

A nozzle for a two-chamber container for mixing two components and applying the mixture, comprises a foldable nozzle body, comprising a mainly ring-shaped connecting part for connecting the nozzle to a container body, wherein the connecting part is arranged at an outer diameter, a tip arranged mainly in the center of the nozzle body, the tip comprises a predetermined breaking line for providing an outlet in broken state, at least one intermediate folding ring connecting the tip with the connecting part so that the tip is movable relative to the connecting part in axial direction between a folded state, where the tip is arranged mainly radially inside the connecting part, and an unfolded state, where the tip is arranged mainly outside the connecting part, and a cover plate connected with the tip.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- A45D Class
- 455 Applications Filed
- 386 Patents Issued To-Date
- 84.84 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A45D Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 5, 2029 |
