Hydraulic brake system with controlled boost
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 5, 2017
Issued Date -
N/A
app pub date -
Apr 28, 2015
filing date -
Feb 3, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

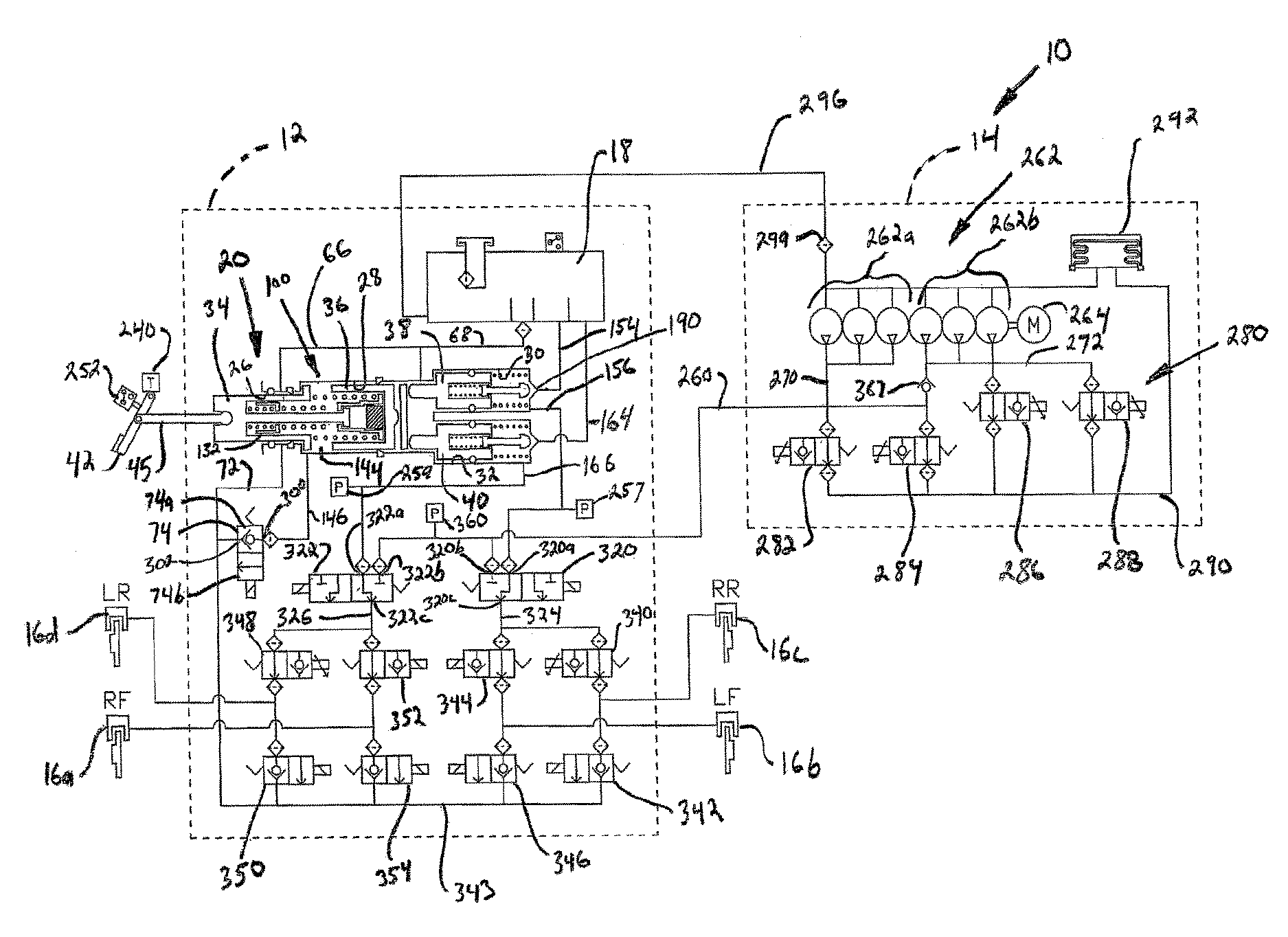

A vehicle brake system includes a brake pedal unit (BPU) coupled to a vehicle brake pedal and including an input piston connected to operate a pedal simulator during a normal braking mode, and coupled to actuate a pair of output pistons during a manual push through mode. The output pistons are operable to generate brake actuating pressure at first and second outputs of the BPU. A hydraulic pressure source for supplying fluid at a controlled boost pressure is included. The system further includes a hydraulic control unit (HCU) adapted to be hydraulically connected to the BPU and the hydraulic pressure source, the HCU including a slip control valve arrangement, and a switching base brake valve arrangement for switching the brake system between the normal braking mode wherein boost pressure from the pressure source is supplied to first and second vehicle brakes, and the manual push through mode wherein brake actuating pressure from the BPU is supplied to the first and second vehicle brakes.
First Claim
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 5, 2029 |
