Cutting edge adjustment device, rotary member applied to the device, and tool body, cartridge, and cutting insert having structures suitable for the device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 5, 2017
Grant Date -
Aug 6, 2015
app pub date -
Aug 6, 2013
filing date -
Aug 6, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

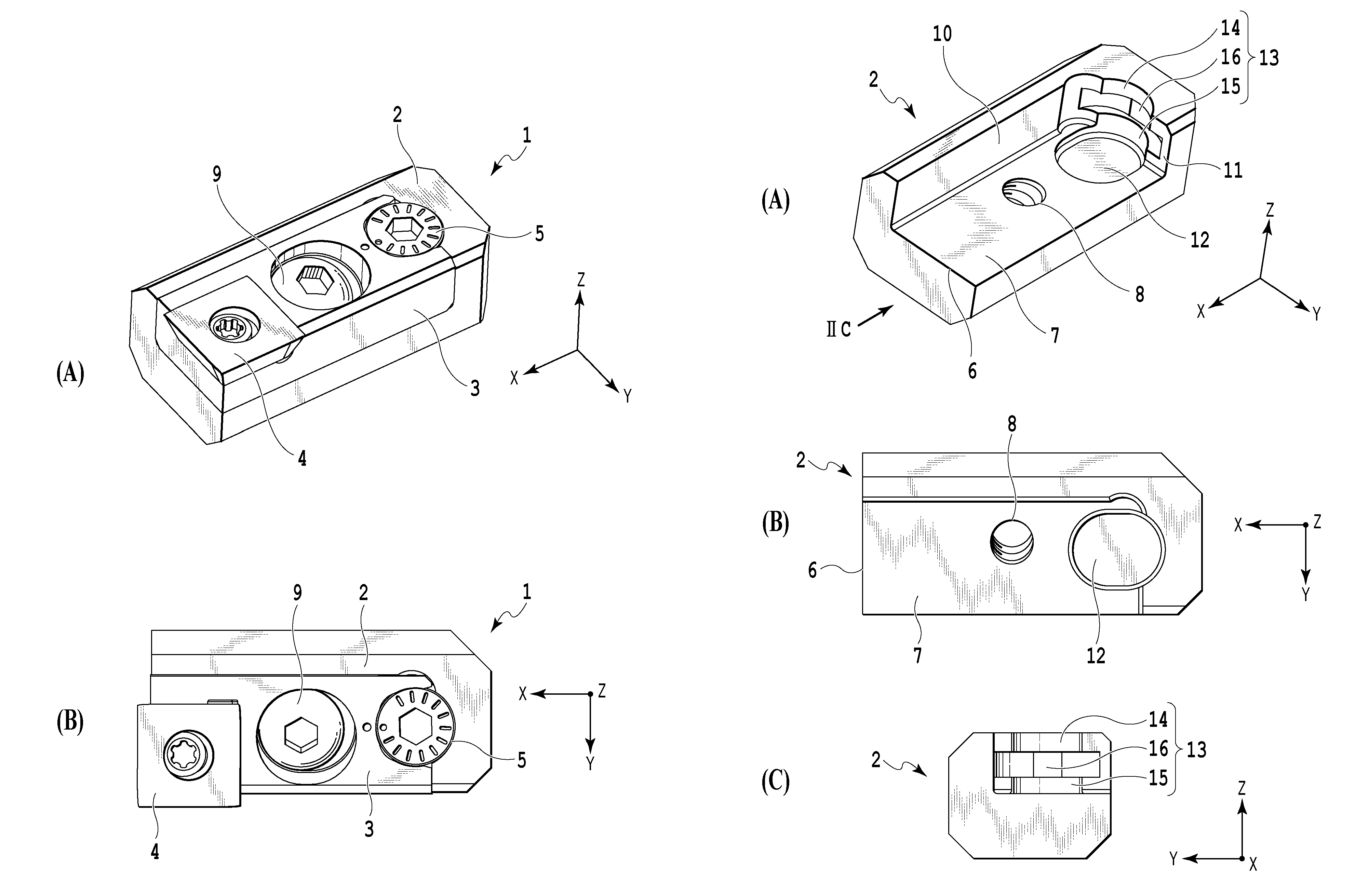

A cutting edge adjustment device for a cutting tool for adjusting the position of a cutting edge of a cutting insert by causing movement of the cutting insert includes a rotary member for producing the movement. The rotary member is formed into a shape in which a substantially cylindrical portion having a constant radius and a cam portion having a cam face whose radius is gradually increased in a manner corresponding to the amount of the movement are arranged in a direction of a rotational center axis. The cam face is formed in such a manner as to have a section in which a radius is linearly increased, and consequently, the unit rotational angle of the rotary member on the rotational center axis is proportional to the unit movement amount of the cutting insert.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B23B Class
- 466 Applications Filed
- 433 Patents Issued To-Date
- 92.92 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 5, 2029 |
