Active acoustic pressure mapping system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 5, 2017
Issued Date -
N/A
app pub date -
Aug 1, 2013
filing date -
Mar 5, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance

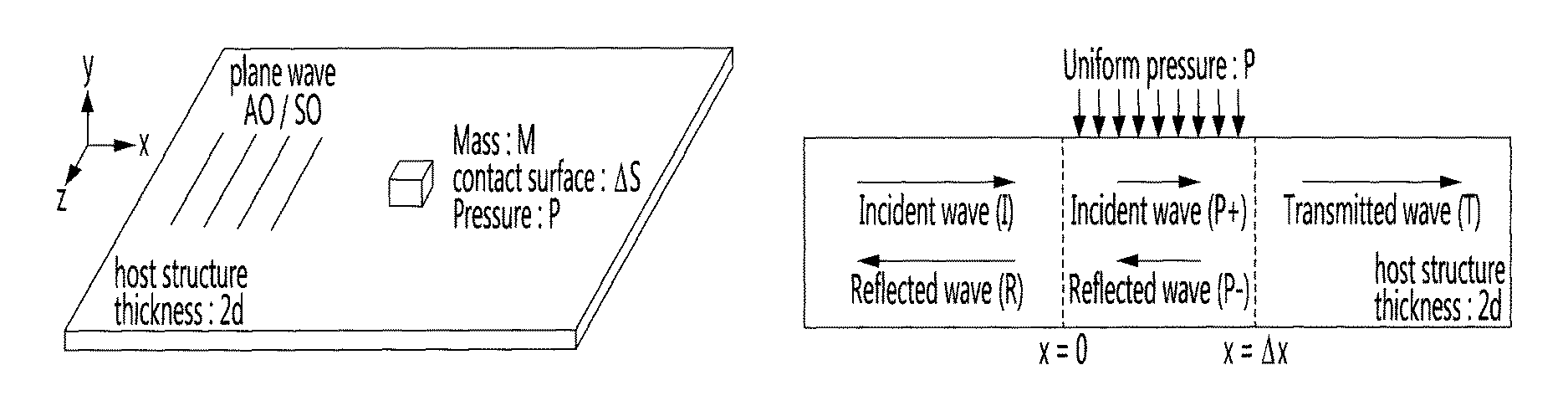

Abstract
Method and apparatus for determining that a pressure field is applied on a structure. A plurality of acoustic waves are generated within the structure using at least one wave generator and a plurality of measurements of the acoustic waves is taken using at least one wave sensor. A pressure field applied to a surface of the structure is determined by processing at least two of the plurality of measurements. The wave generator and the wave sensor may be piezoelectric elements, which may alternate between acting as the wave generator and the wave sensor. Processing the measurements may comprise obtaining a differential measurement value and comparing the value to a threshold. Determining that the pressure field is applied may comprise processing the measurements using a model based on acoustic wave propagation or experimental results. The processing may provide a mapping of the pressure field of an object on the structure.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- A61B Class
- 14.35 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 5, 2029 |
