Coaxial microwave applicator for plasma production
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2017
Issued Date -
N/A
app pub date -
Jul 10, 2013
filing date -
Jul 11, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

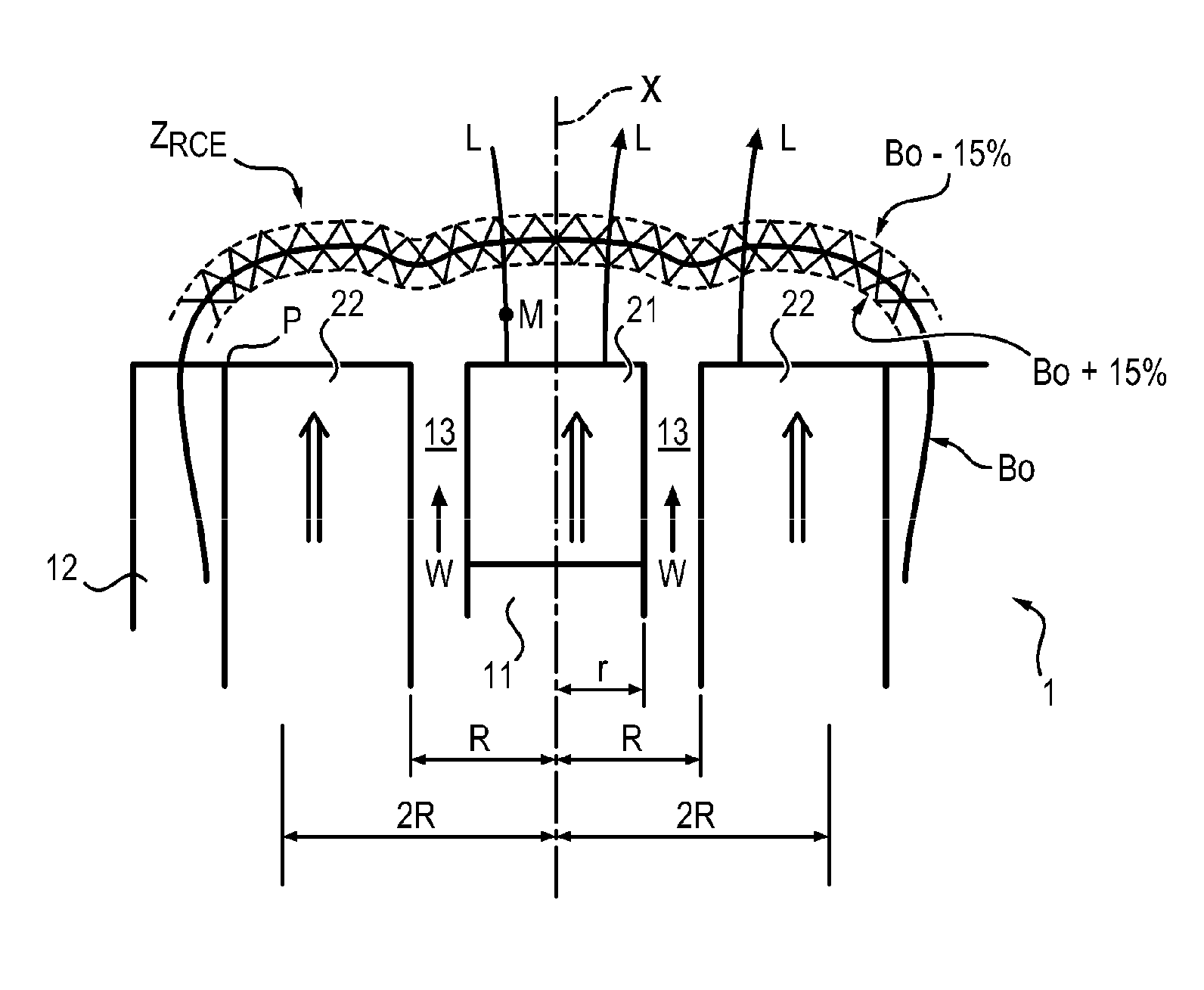

The disclosure includes a coaxial microwave applicator for plasma production, including a coaxial tube formed by a central core and an outer conductor separated from the central core by an annular space allowing propagation of microwaves. The applicator includes: a cylindrical permanent magnet disposed at the end of the central core; and at least one annular permanent magnet disposed at the end of the outer conductor, all of the magnets disposed at the end of the coaxial tube having the same direction of magnetization. The magnetization of the magnets forms a magnetic field suitable for generating, in a zone away from the end of the applicator, an electronic cyclotronic resonance coupling with the electric microwave field of the applicator. The external radius and the magnetization of the annular magnet are selected such that the magnetic field lines generated by the magnets pass through the coupling zone in a direction substantially parallel to the axis of the applicator.
