RF connector with push-on connection
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2017
Issued Date -
N/A
app pub date -
Jun 26, 2015
filing date -
Jun 25, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

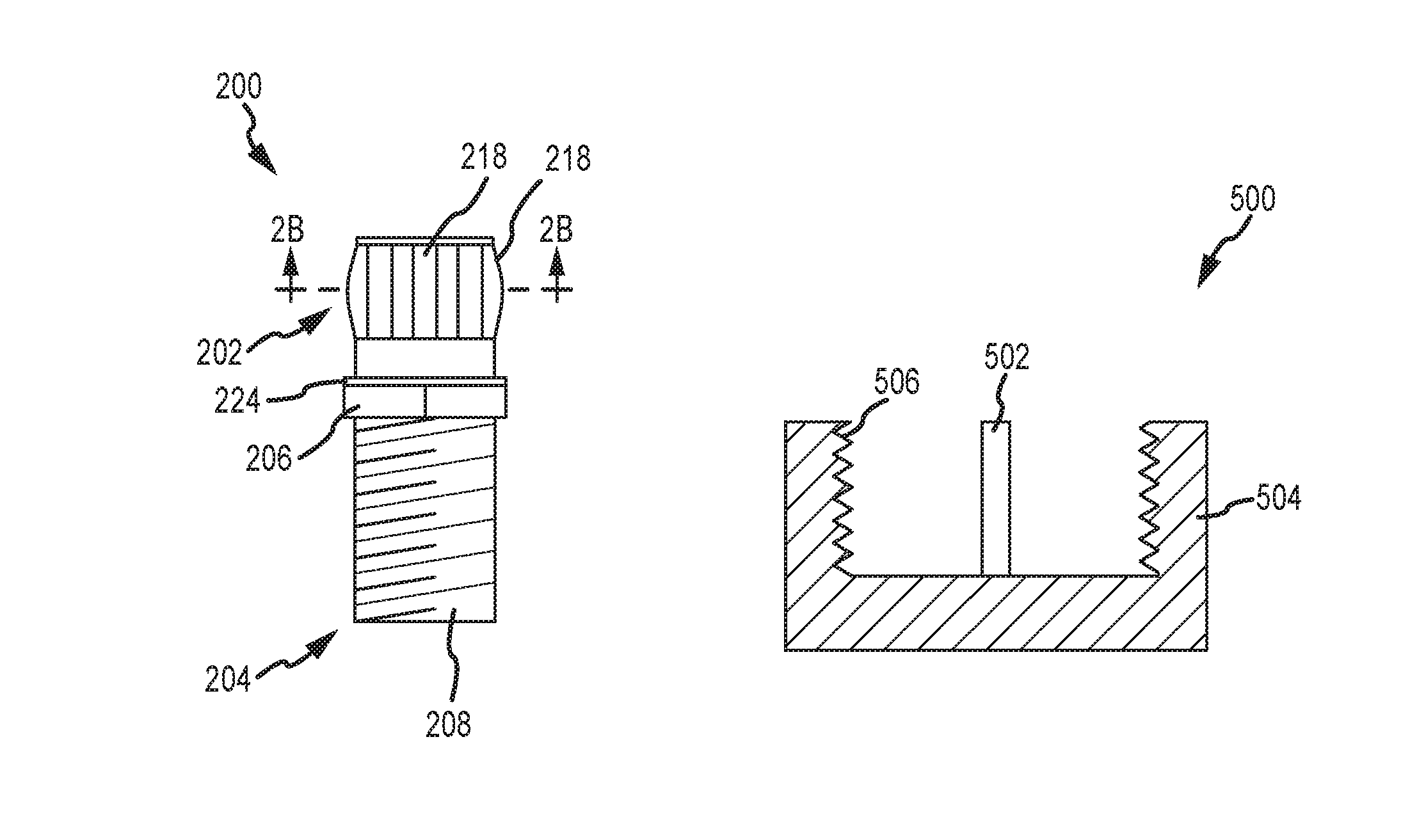

An RF connector is provided. The connector includes a first socket member. The first socket member includes a conductive sleeve comprising a top portion, a bottom portion, and a plurality of springs connecting the top portion and the bottom portion. The first socket member also includes a base inside the conductive sleeve comprising a first matching hole configured to match to a first conductive pin of a first plug member. The connector also includes a second socket member. The second socket member includes a second matching hole configured to match to a second conductive pin of a second plug member, and a conductive body having outer threads configured to match to inner threads of the second plug member. The connector further includes a middle portion connected between the first socket member and the second socket member, the middle portion extending radically outwardly from a periphery of the middle portion.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H01R Class
- 3228 Applications Filed
- 2915 Patents Issued To-Date
- 90.31 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01R Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 28, 2029 |
