Packaging for transporting and/or storing radioactive materials, including improved means for attaching a shock-absorbing cover
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2017
Issued Date -
N/A
app pub date -
Sep 30, 2013
filing date -
Oct 2, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

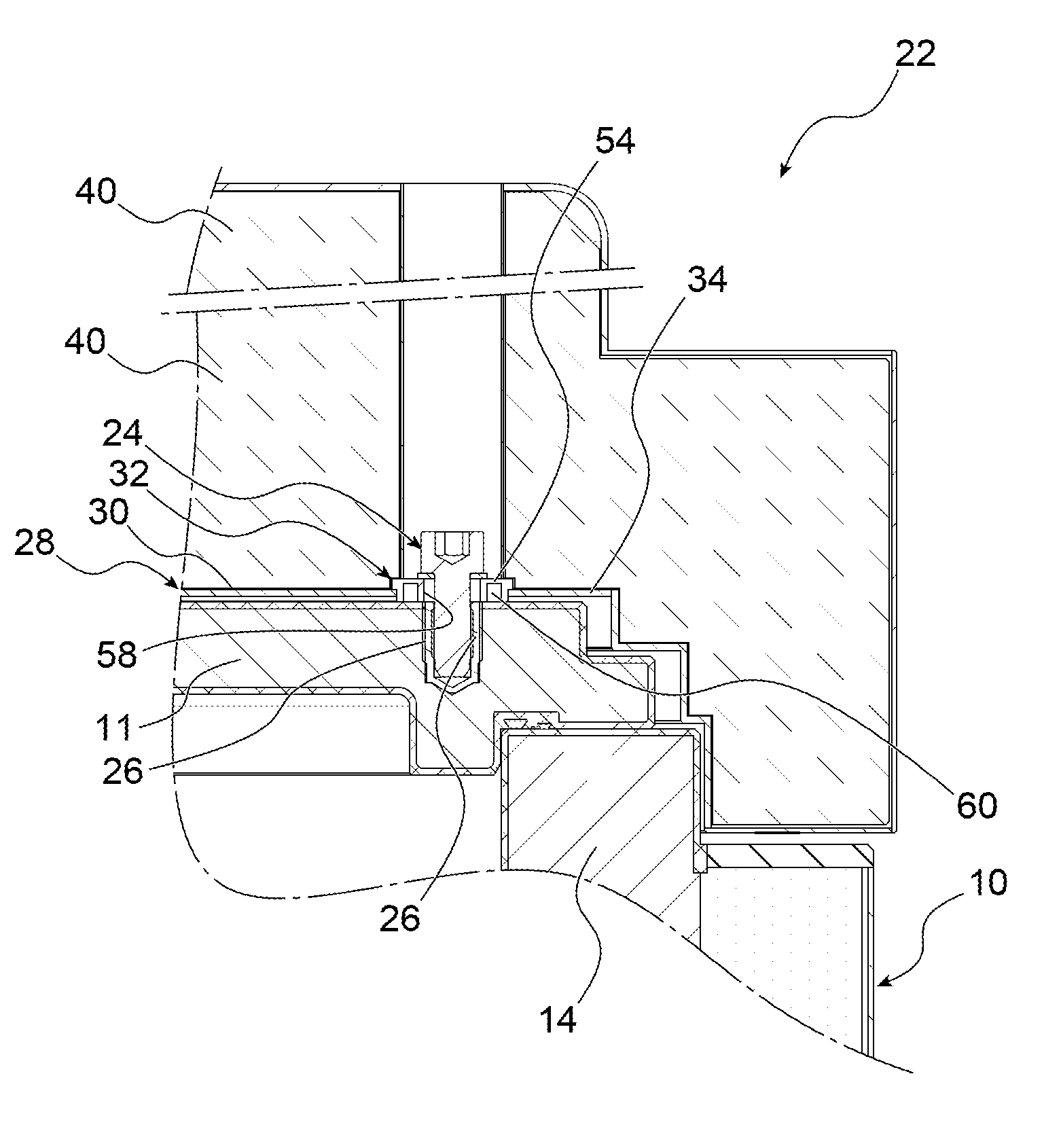

The invention relates to a packaging for transporting and/or storing radioactive materials, comprising a packaging body extending along a longitudinal direction, and further including at least one shock-absorbing cover mounted on one of both longitudinally opposite ends of the packaging body, the absorbing cover comprising attaching portions (44) on said packaging body, each attaching portion defining a clearing hole (58) through which an element (24) screwed in the packaging body passes. According to the invention, the attaching portion (44) has a deformable area (54) which, in the case of an outer bias on the absorbing cover leading to a contact strain between the screwed element (24) and the clearing hole (58), is designed to plastically deform.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- G21F Class
- 121 Applications Filed
- 99 Patents Issued To-Date
- 81.82 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G21F Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 28, 2029 |
