Contactless cylinder escapement mechanism for timepieces
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2017
Issued Date -
N/A
app pub date -
Dec 8, 2014
filing date -
Dec 23, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

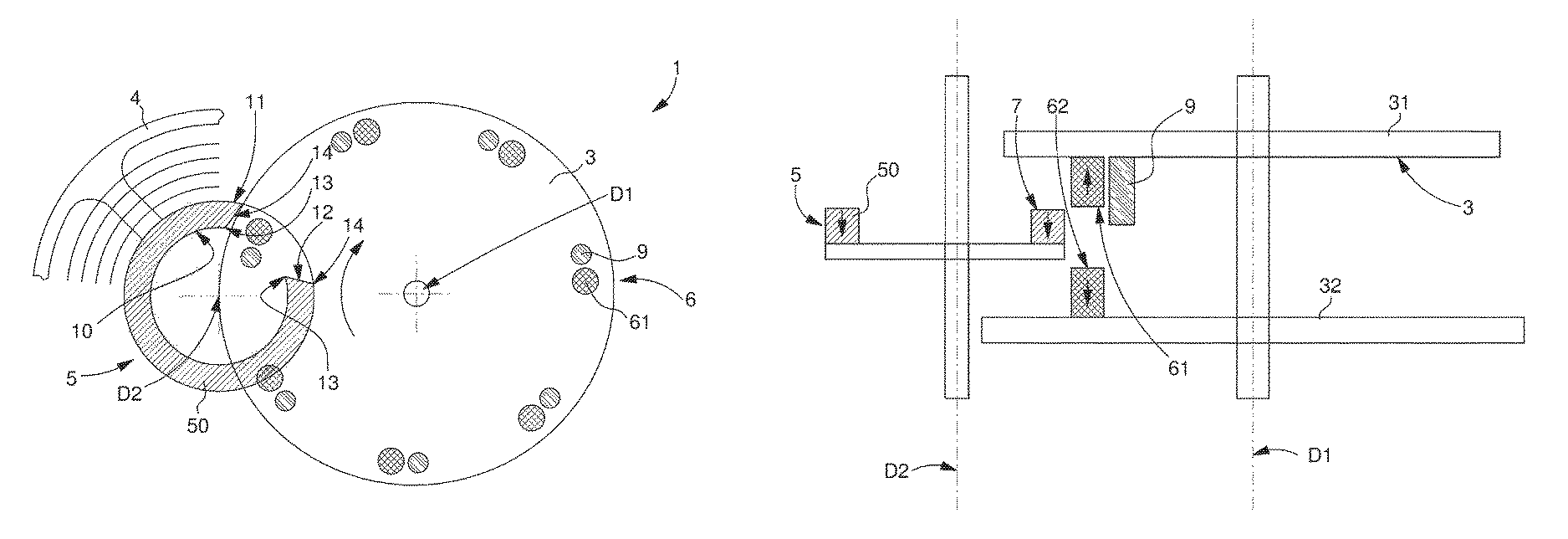

An escapement mechanism including an escape wheel subjected to a rotational torque and a resonator integral with a pivotally mounted regulating wheel set. The escape wheel includes plural actuators regularly spaced on a periphery thereof, each arranged to cooperate directly with at least a first track of the regulating wheel set. Each actuator includes a first magnetically, or respectively electrically charged, or ferromagnetic or respectively electrostatically conductive surface, to cooperate with the first track which is magnetically, or respectively electrically charged, or ferromagnetic or respectively electrostatically conductive, to repel or attract each first surface of the actuator, and each actuator includes a mechanical stop member to cooperate, in an end-of-travel stop arrangement, with at least a first complementary stop surface included in the regulating wheel set to constitute therewith an autonomous escapement mechanism.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G04B Class
- 214 Applications Filed
- 202 Patents Issued To-Date
- 94.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- G04B Class
- 23.77 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 28, 2029 |
