Apparatus for examining moving products, in particular moving piece goods, by x-ray
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2017
Grant Date -
May 26, 2016
app pub date -
Nov 24, 2015
filing date -
Nov 24, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

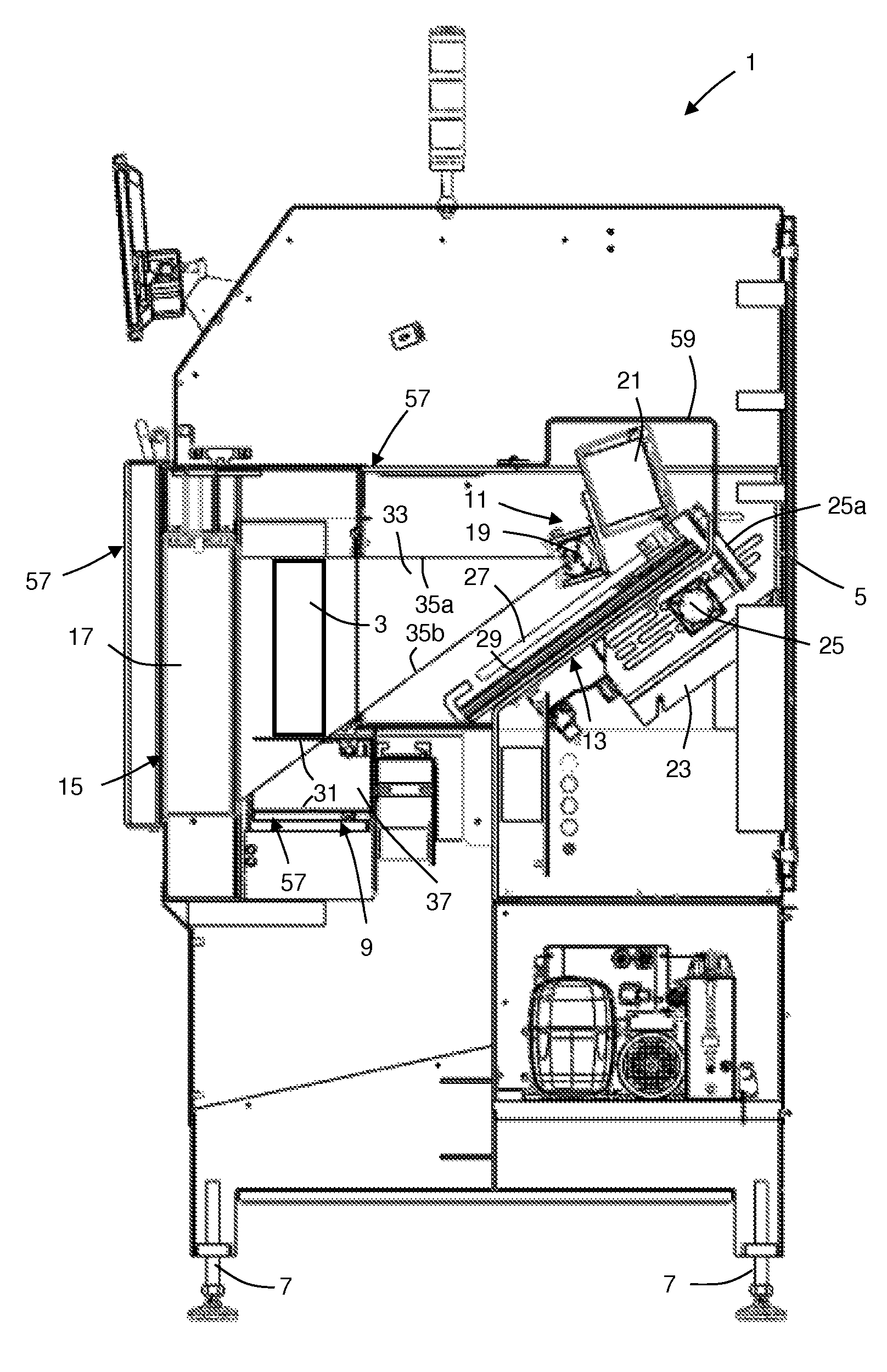

Provided is an apparatus for x-ray examination of moving products, including a conveyor device with a conveying means on which a product to be irradiated rests in a movement plane. The product is transported in at least one of the following manners: along a predetermined movement trajectory at a predetermined speed; in accordance with a predetermined time-dependent course of speed or position; is rotated about a rotary axis that is substantially perpendicular to the movement plane, or any combination thereof. A radiation generating device, configured to generate an x-ray beam, is positioned on one side of the conveying means, and has a detector device, positioned on the opposite side of the conveying means. The radiation generating device is configured to generate an x-ray beam widening in fanlike fashion beginning at an x-radiation source of the radiation generating device.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G01N Class
- 11310 Applications Filed
- 8345 Patents Issued To-Date
- 73.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01N Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 28, 2029 |
