Differential scan imaging systems and methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2017
Issued Date -
N/A
app pub date -
Sep 14, 2015
filing date -
Apr 11, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

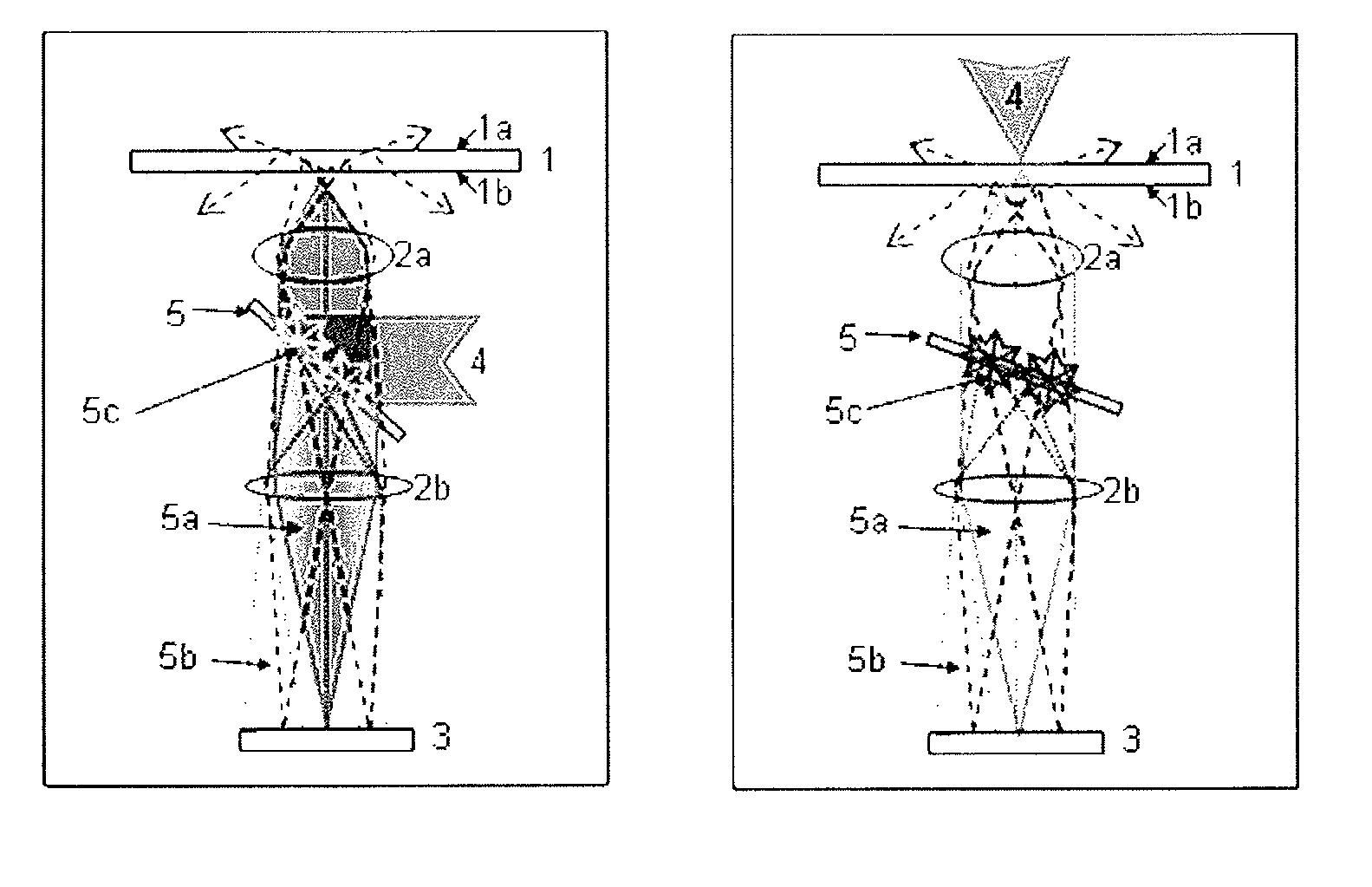

Systems and methods for producing background-reduced fluorescence imaging signals include an illumination system that provides illumination light from an illumination source to a targeted area on the sample platform, a sensor adapted to detect light and having an array of sensing locations, and collection optics arranged and configured to project light emanating from the sample platform onto the sensor. In typical operation, light from the targeted area is projected onto a first portion of the sensor comprising a first plurality of the sensing locations and light from proximal to the targeted area on the platform is projected onto a second portion of the sensor comprising a second plurality of the sensing locations, and a second signal detected by the second portion of the sensor is subtracted from a first signal detected by the first portion of the sensor to produce a background-reduced signal, e.g., a signal with reduced background related noise.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01N Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 28, 2029 |
