Hinge mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2017
Grant Date -
Jun 15, 2017
app pub date -
Dec 2, 2016
filing date -
Dec 11, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

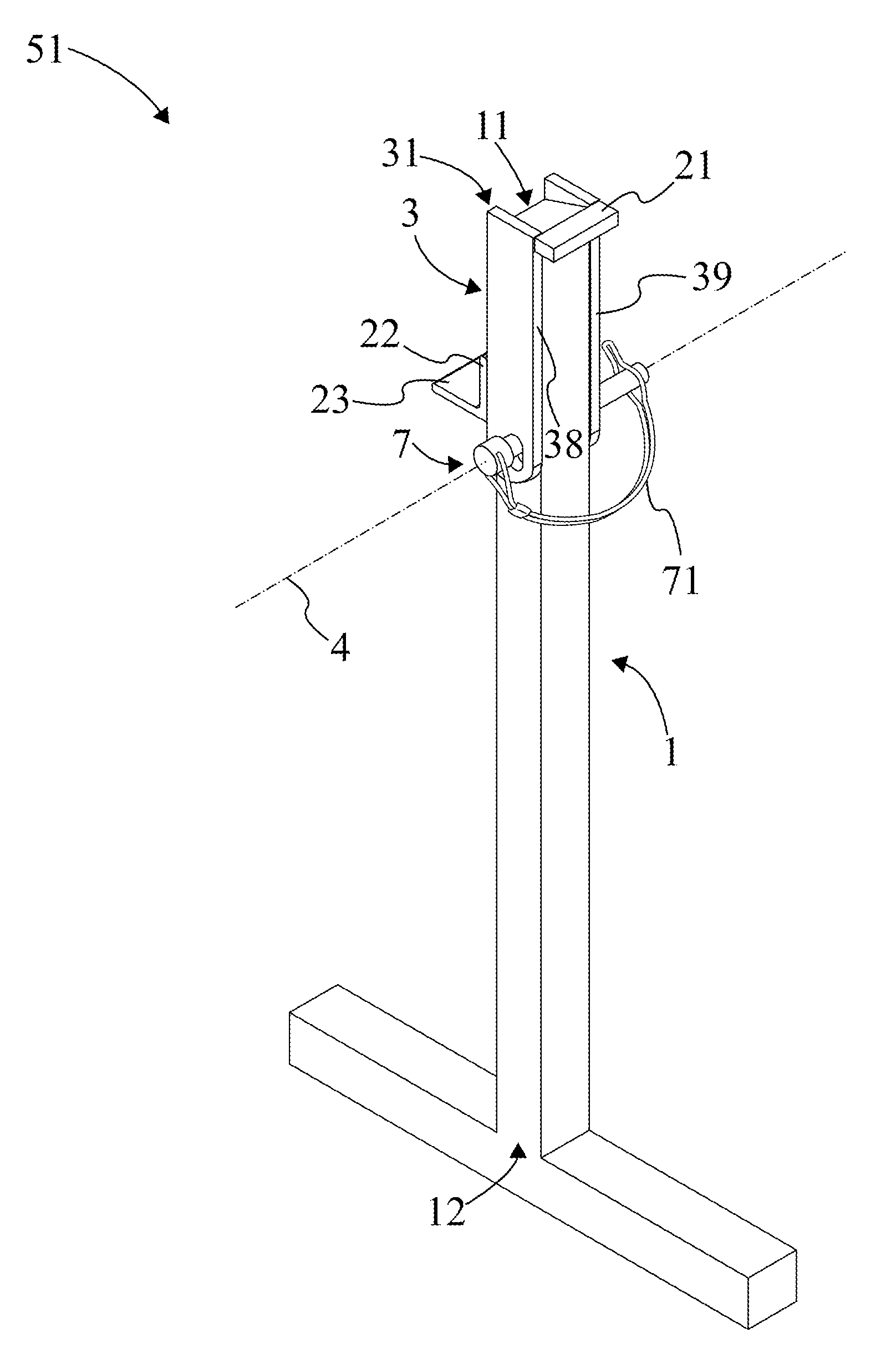

A hinge mechanism rotatably joins a post and a hinge in a manner that allows for rapid assembly and disassembly. A first stop, second stop, and third stop are used to create a gravity-assisted rotation system for the hinge mechanism, with the hinge rotating between a horizontal locked position, raised unlocked position, and rotated collapsed position. A pin is placed through corresponding pin receptacles of the post and the hinge in order to secure the two together. The pin is locked within the post by a locking member, which secures the pin in a manner that facilitates easy pin insertion and removal. The hinge mechanism can be integrated into a variety of apparatuses, such as a table with rotating top; the top can be rotated to the collapsed configuration in order to serve as a seat back or left in the locked configuration to be used as a table top.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A47C Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 28, 2029 |
