Valve assembly, in particular for space travel drive systems, which is closed when not actuated
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2017
Issued Date -
N/A
app pub date -
Mar 10, 2015
filing date -
Mar 12, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

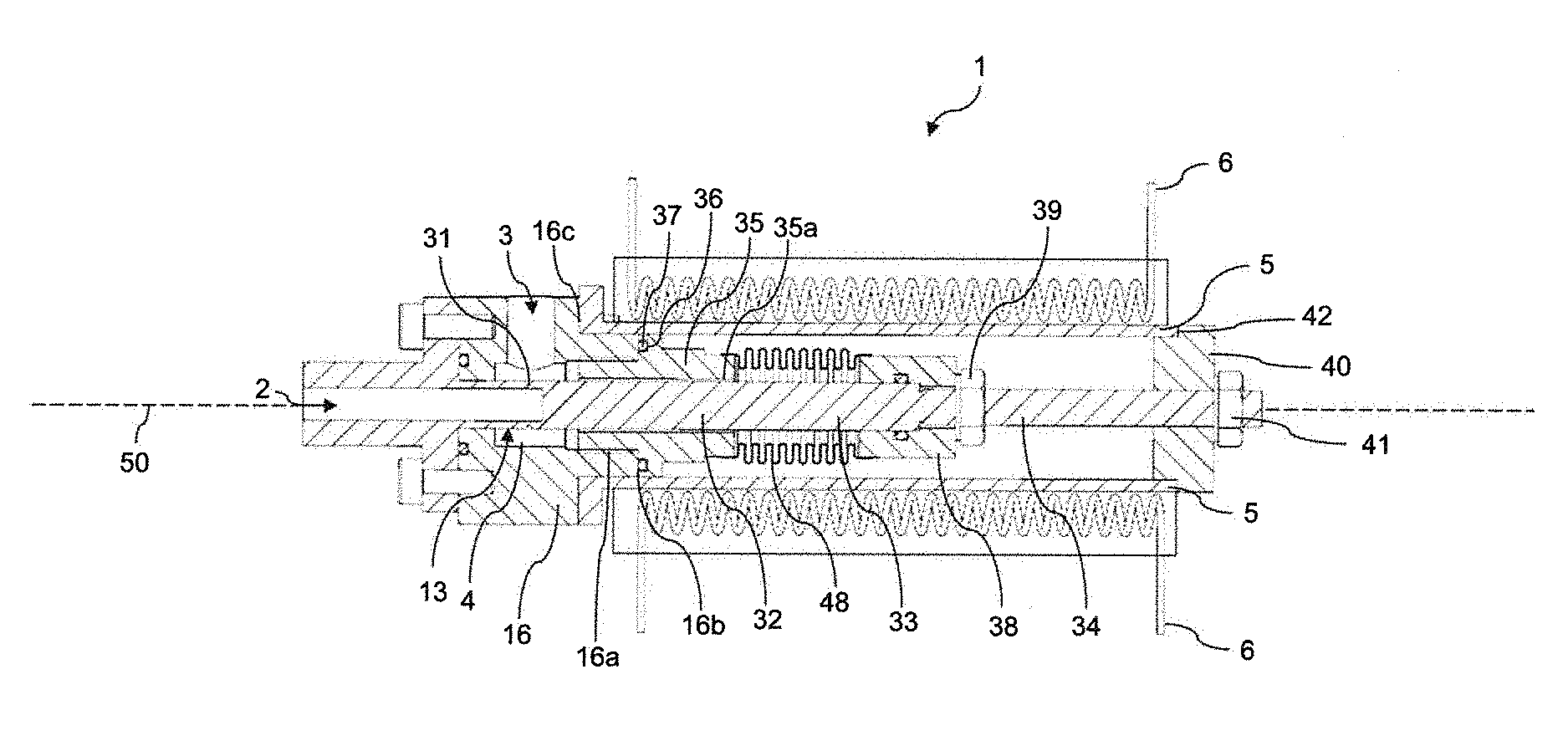

A valve assembly includes an inlet and an outlet, which open into a working chamber of the valve assembly, and an actuator. In a non-actuated state of the actuator, a flow passage between the inlet and the outlet is blocked. The actuator is optionally a shape-memory actuator that can be actuated one time or comprises a shape-memory actuator, which suddenly changes its external shape upon reaching a conversion temperature, which is dependent on the alloy composition thereof, and which can be generated by a controllable electrical heating device of the valve assembly. The actuator irreversibly destroys a pipe element separating the inlet from the outlet in the working chamber upon actuation, whereby the inlet and the outlet are connected to one another with respect to flow via the working chamber.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16K Class
- 31.02 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 28, 2029 |
