Method for producing an extruded bearing journal
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2017
Issued Date -
N/A
app pub date -
Apr 3, 2012
filing date -
Apr 3, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

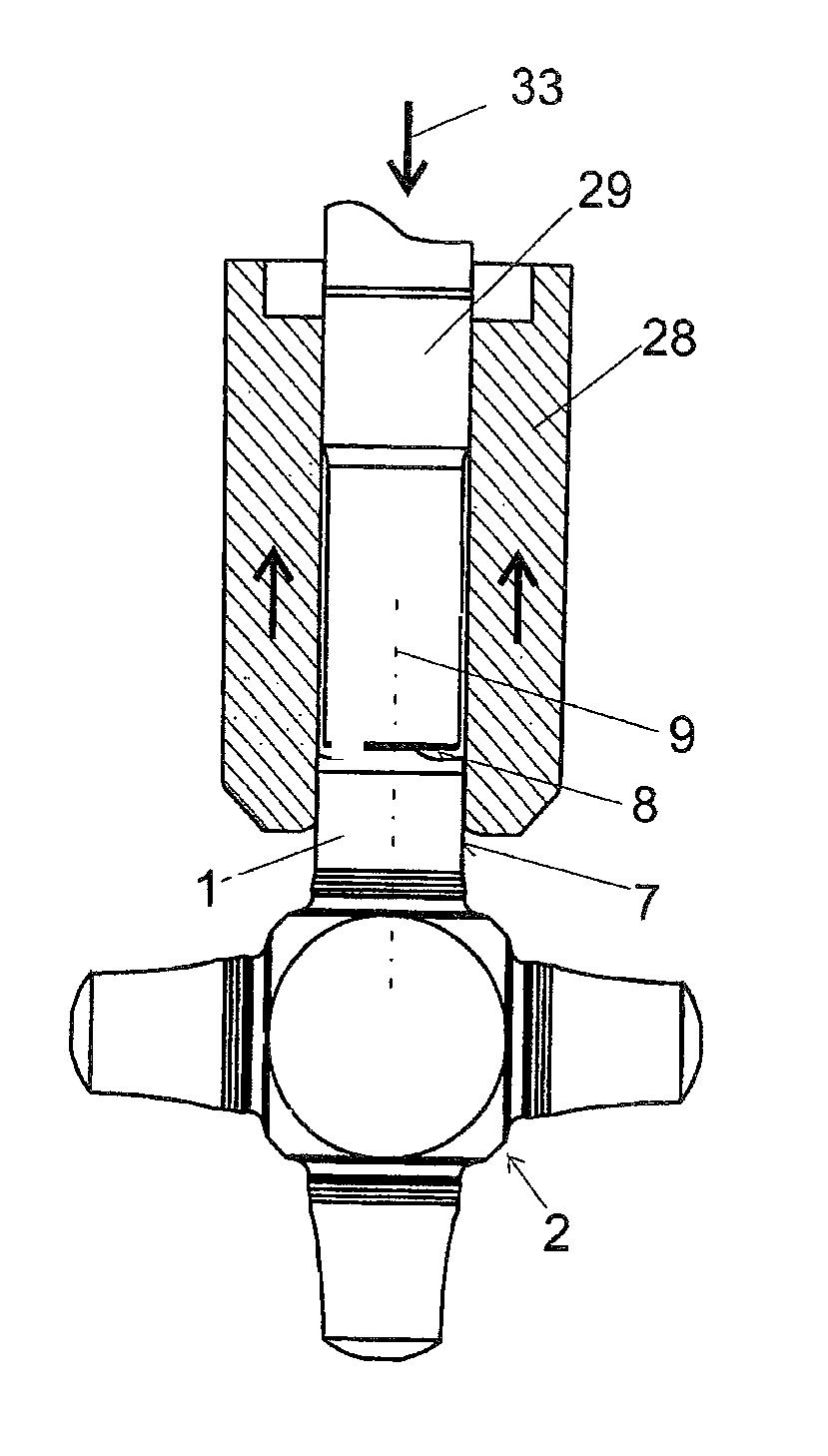

In a method for producing an extruded bearing journal, the bearing journal is extruded in an extrusion tool by means of at least one extrusion punch and, after the extrusion of the bearing journal, reworking of the bearing journal is performed in order to improve the cylindricity of the bearing journal at least over a section of the longitudinal extent of the bearing journal. During the reworking, the bearing journal is arranged, at least over a section of its longitudinal extent adjoining its free end, in a cavity that is delimited in a radial direction of the bearing journal by a wall surface surrounding the lateral surface of the bearing journal, and a reworking punch which is movable in the longitudinal direction of the bearing journal is moved toward the free end of the bearing journal and is pressed against the face surface of the bearing journal and, in this way, a plastic deformation of the bearing journal, with a flow of material of the bearing journal, is effected.
First Claim
Other Claims data not available
Family
International Classification(s)
- B23P:OTHER WORKING OF METAL; COMBINED OPERATIONS; UNIVE....
- B21K:MAKING FORGED OR PRESSED PRODUCTS, e.g. HORSE-SHOE....
- B21J:FORGING; HAMMERING; PRESSING; RIVETING; FORGE FURN....
- F16C:SHAFTS; FLEXIBLE SHAFTS; ELEMENTS OF CRANKSHAFT ME....
- F16D:COUPLINGS FOR TRANSMITTING ROTATION
- B21C:MANUFACTURE OF METAL SHEETS, WIRE, RODS, TUBES, PR....
- B21D:WORKING OR PROCESSING OF SHEET METAL OR METAL TUBE....
- 2012 Application Filing Year
- B23P Class
- 3251 Applications Filed
- 832 Patents Issued To-Date
- 25.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23P Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 28, 2029 |
