Control and power supply system for helicopter turbine engines
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2017
Grant Date -
May 14, 2015
app pub date -
May 6, 2013
filing date -
May 11, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

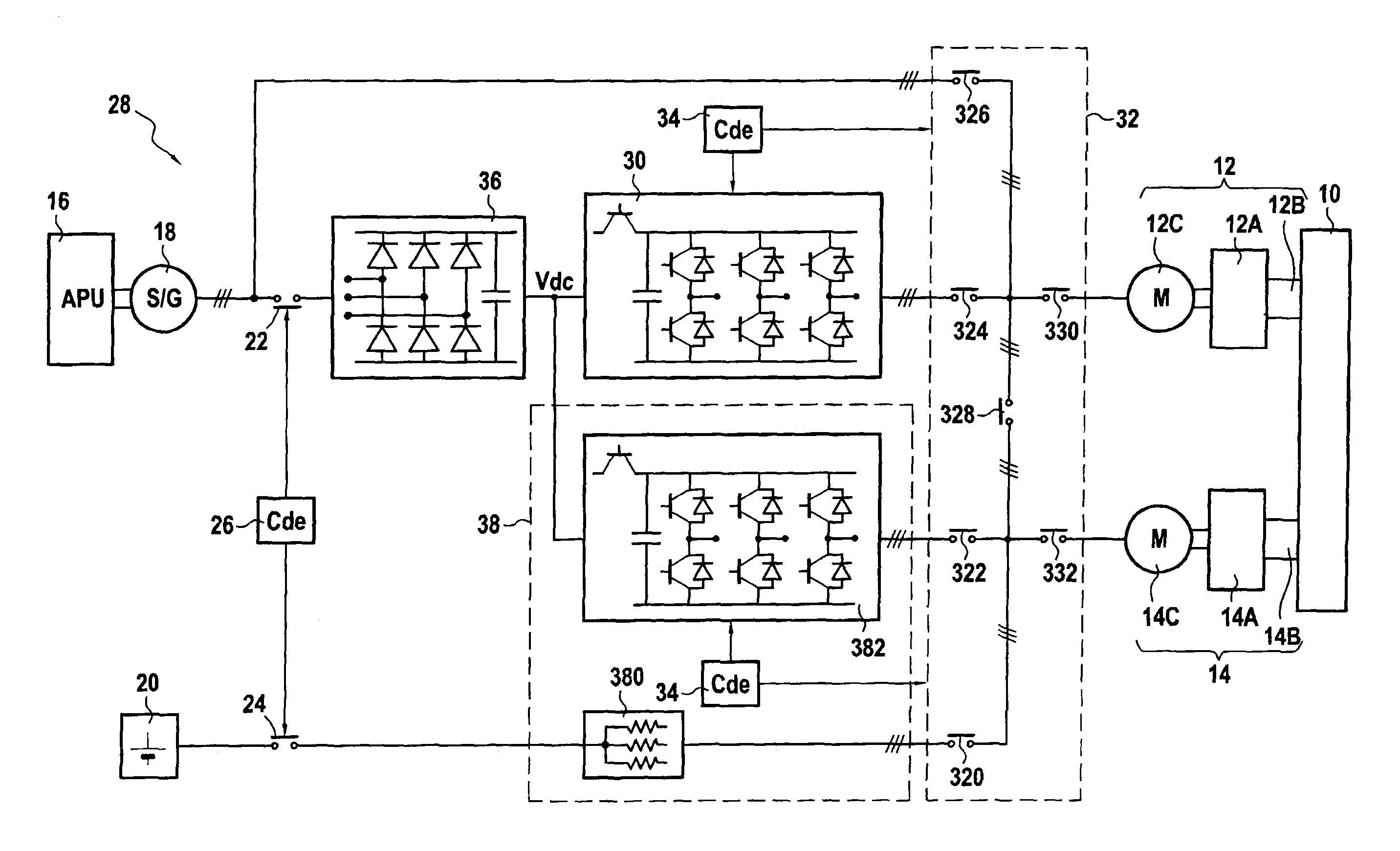

An electrical control and power supply system for at least one helicopter motor/generator, the system including a first DC/AC converter selectively delivering AC electrical power to the at least one motor/generator, depending on respective positions of contactors of a connection matrix actuated from an electronic control circuit, the first DC/AC converter powered with DC by a DC power supply device that includes either a circuit for rectifying an AC voltage delivered via a contactor by a starter/generator of an APU, or a voltage booster DC/DC converter powered from a battery via a contactor. The connection matrix further includes a contactor connecting the first DC/AC converter in parallel with the second DC/AC converter to make it possible, once at least one of the motors/generators has started, to inject additional power from the starter/generator of the APU.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- H02J Class
- 3206 Applications Filed
- 2881 Patents Issued To-Date
- 89.87 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- H02J Class
- 20.50 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 28, 2029 |
