Melting furnace for producing metal
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2017
Issued Date -
N/A
app pub date -
Feb 27, 2012
filing date -
Feb 25, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

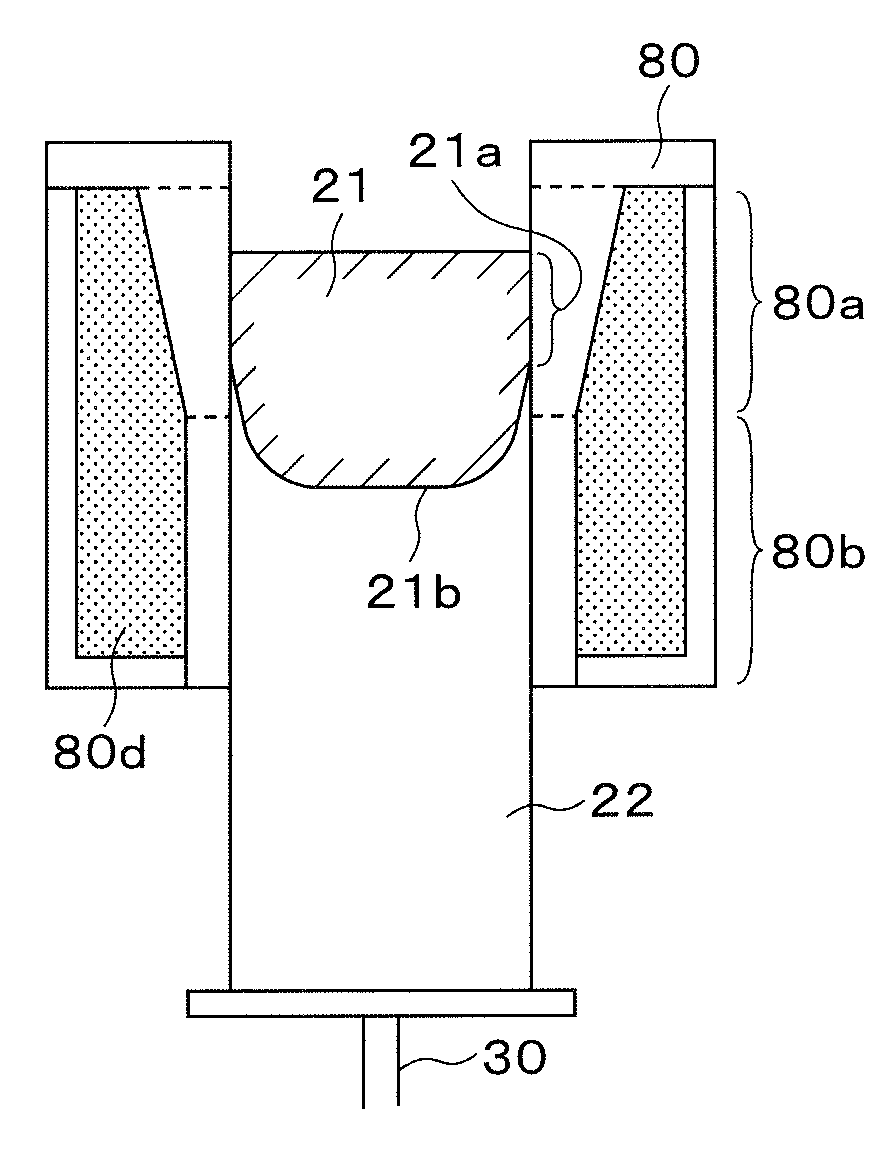

In production of a reactive metal using a melting furnace for producing metal having a hearth, ingots can be efficiently produced by efficiently cooling the ingots extracted from the mold provided in the melting furnace. In addition, an apparatus structure in which multiple ingots can be produced with high efficiency and high quality from one hearth, is provided. A melting furnace for producing metal is provided, the furnace has a hearth for having molten metal formed by melting raw material, a mold in which the molten metal is poured, an extracting jig which is provided below the mold for extracting ingot cooled and solidified downwardly, a cooling member for cooling the ingot extracted downwardly of the mold, and an outer case for keeping the hearth, the mold, the extracting jig, and the cooling member separated from the air, wherein at least one mold and extracting jig are provided in the outer case, and the cooling member is provided between the outer case and the ingot, or between the multiple ingots.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F27B Class
- 191 Applications Filed
- 165 Patents Issued To-Date
- 86.39 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F27B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 28, 2029 |
