Hole punching pliers and method of using same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2017
Issued Date -
N/A
app pub date -
Oct 24, 2013
filing date -
Oct 24, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

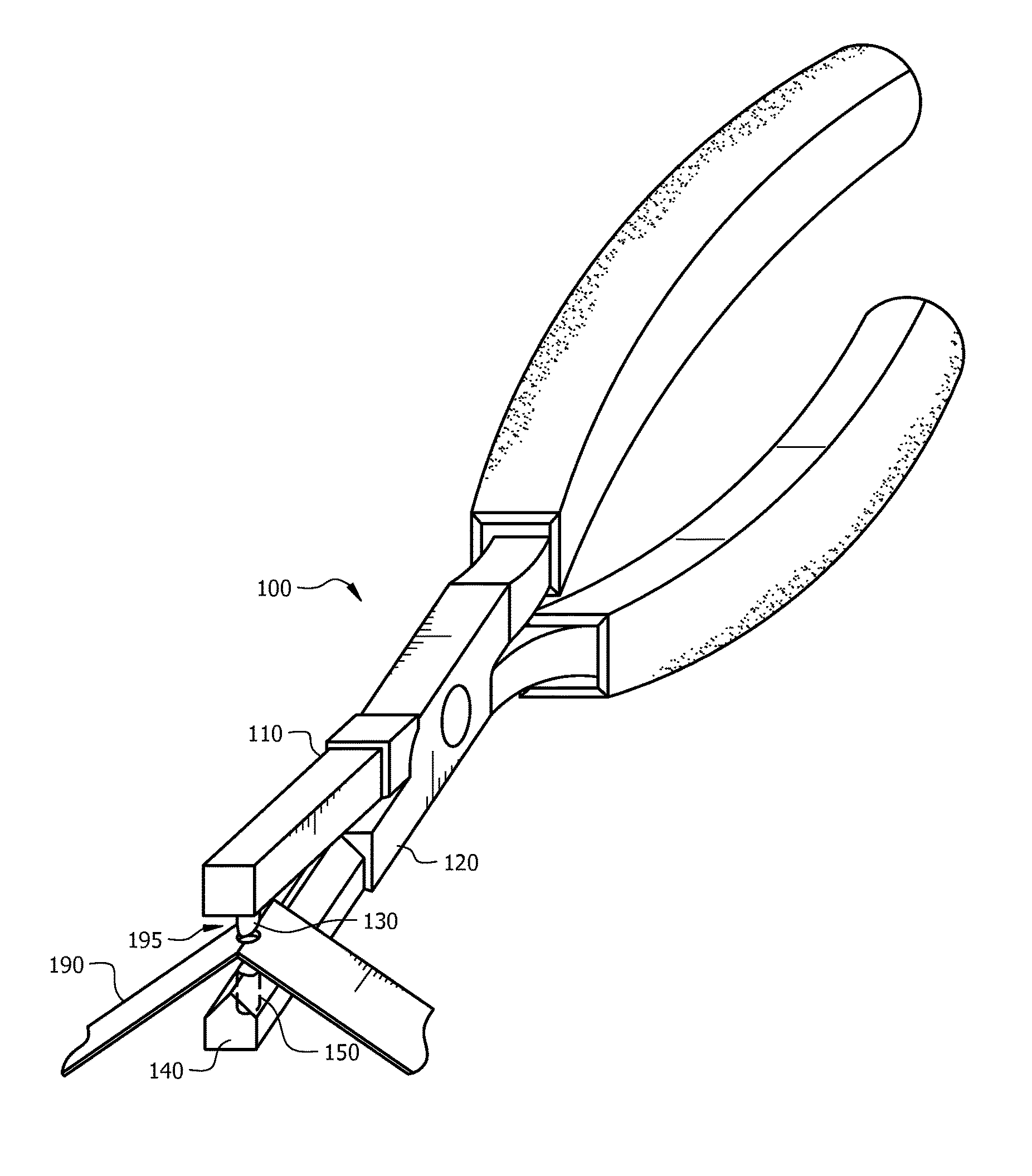

Disclosed are pliers and related methods for punching a hole in a non-flat material without distorting the material. Such pliers may comprise a first member having a first handle and a first jaw, and a second member having a second handle and a second jaw. The first and second members are attached at a connection point to permit pivoting in response to a squeezing force on the handles. The first jaw comprises a punch tip to be received by the second jaw, where the punch tip may have an angled distal end truncating a cross-section of the punch tip. The second jaw comprises a shaped edge facing the punch tip and extending along a length of the second jaw, the shaped edge having substantially the same shape as the non-flat material and comprising an opening having substantially the same shape as the cross-section of the punch tip and to receive the tip therein.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B25B Class
- 669 Applications Filed
- 611 Patents Issued To-Date
- 91.34 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B25B Class
- 23.50 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 28, 2029 |
