Telescoping spray wand assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2017
Issued Date -
N/A
app pub date -
Feb 17, 2015
filing date -
Feb 17, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

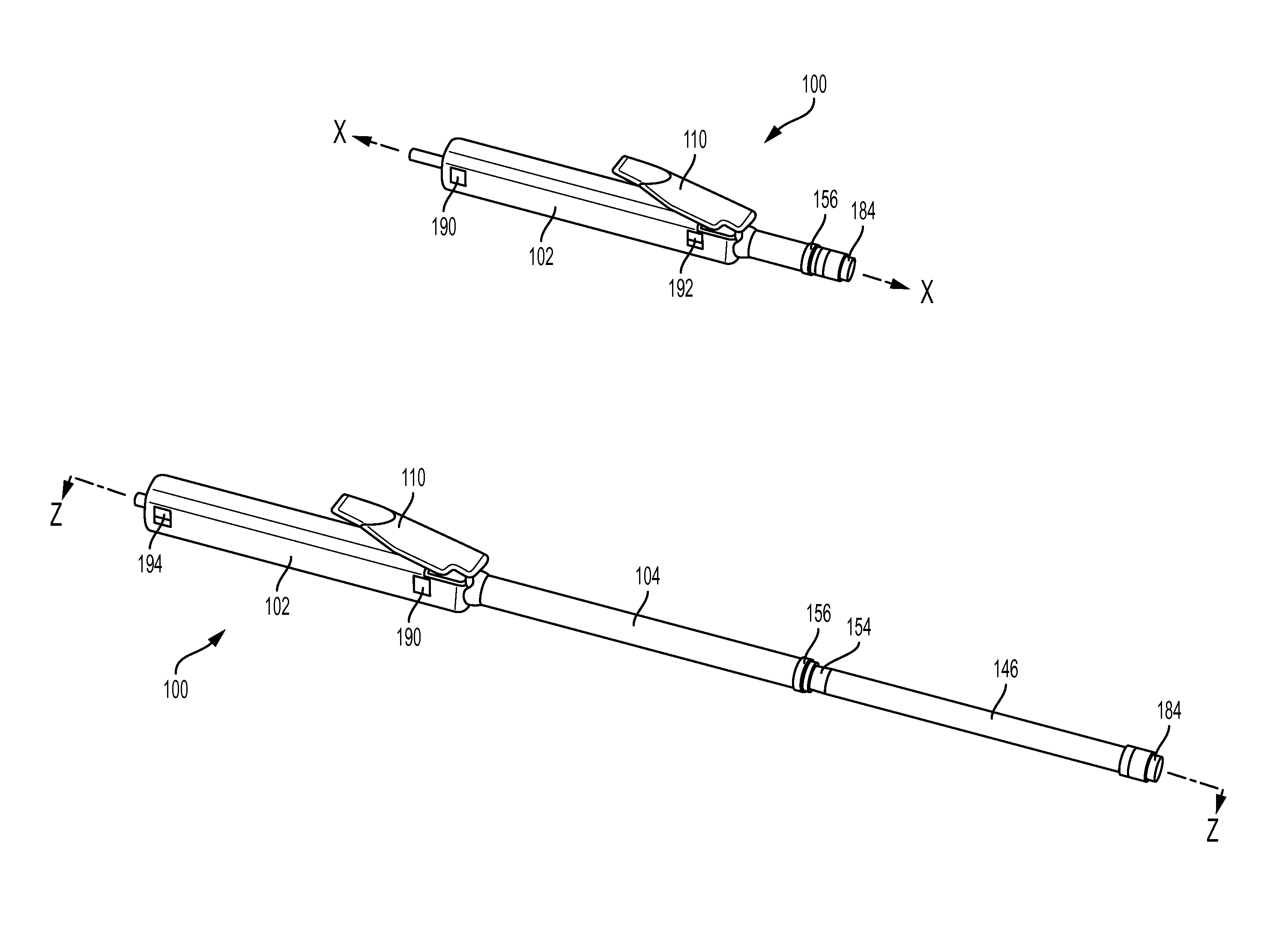

The invention provides a telescoping wand assembly for use in dispensing liquid from a container, including a trigger module extending along a longitudinal axis between proximal and distal ends. The trigger module includes a tubular handle member, a user accessible trigger positioned externally of the tubular handle member that is selectively movable between first and second positions, a hose positioned within the tubular handle member and adapted to transport liquid from the container, and a valve actuating member that is selectively, movably actuable by movement of the trigger between its first and second positions. A stationary frame assembly provides rigidity and contact points for a telescopically movable tube assembly that extends from the trigger module. A shut-off valve and nozzle are positioned at the distal end of the wand assembly and movement of the shut-off valve is controlled by the trigger and translated by way of the tube assembly.
