Roller press

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9744536
APP PUB NO 20150360229A1
SERIAL NO

14763848

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

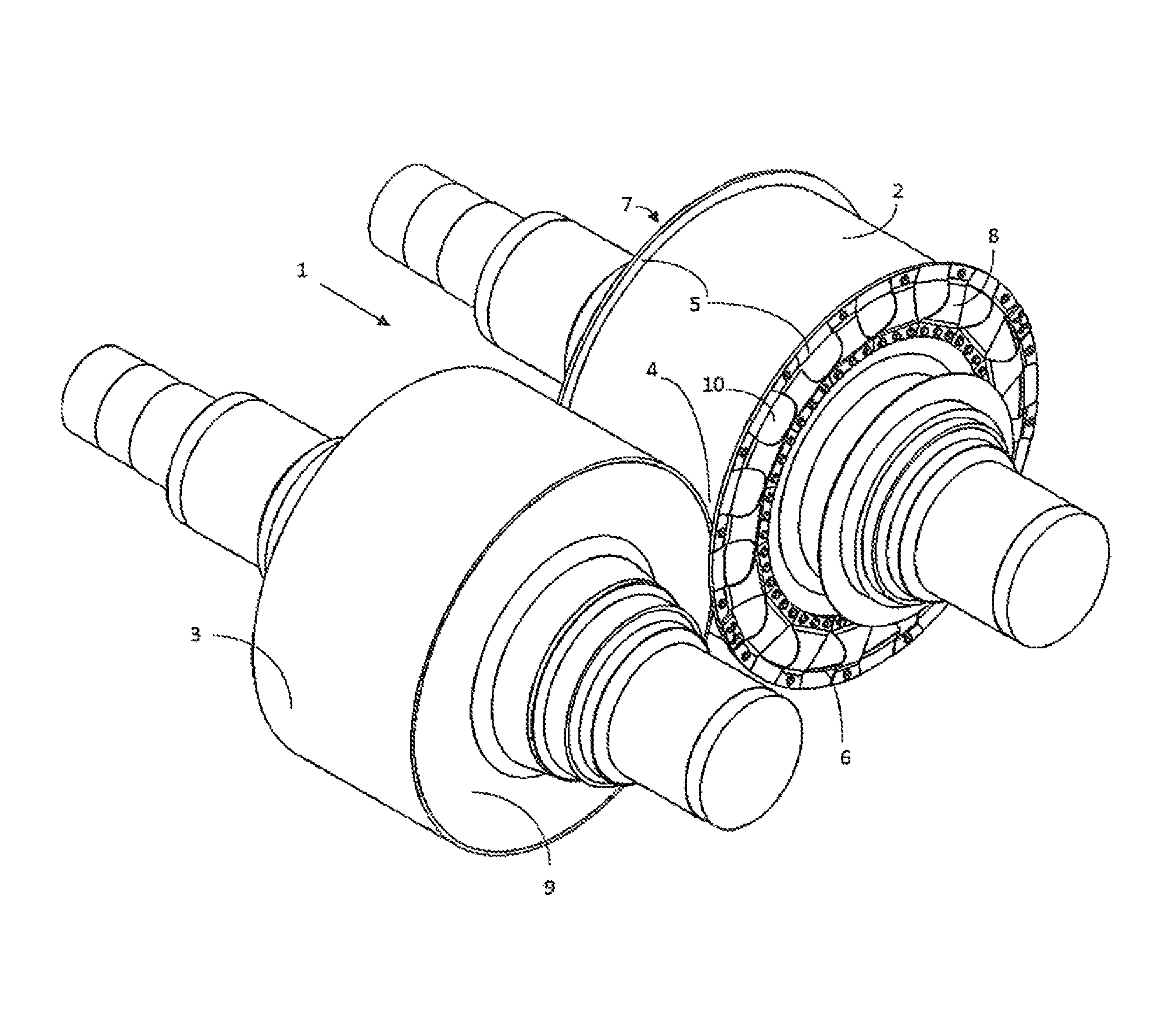

A roller press (1) is described for grinding of particulate material such as cement raw materials, cement clinker and similar materials, which roller press (1) comprises two oppositely rotating rollers (2, 3) forming between them a roller gap (4) and a co-rotating annular disc (5), which in concentric manner is attached to an end surface (6, 7) of one of the rollers (2) by means of a number of resilient attachment elements (8) and being movable in the direction of the roller axis, where the outer diameter of said annular disc (5) is greater than the diameter of said one of the rollers (2), hence the annular disc (5) in the area of the roller gap (4) extends toward the other roller (3), thus covering at least part of the roller gap (4). The roller press (1) is peculiar in that the inner diameter of the annular disc (5) is smaller than the diameter of the roller (2), to which it is attached, thus overlapping the end surface (6, 7) of said roller (2), and that the resilient attachment elements (8) are evenly distributed over the circumference of the annular disc (5) and provided with spaces or openings (10) there between.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

  • FLSMIDTH A/S

International Classification(s)

loading....
  • 2014 Application Filing Year
  • B02C Class
  • 388 Applications Filed
  • 313 Patents Issued To-Date
  • 80.68 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances2014201520162017201820192020202120222023202420250255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Bennedsen, Nick Paw Hadsund, DK 3 3
Olesen, Claus Linding Svenstrup J, DK 1 1
Rasmussen, Mads Peter Fårup, DK 2 1
Visby-Kjærgaard, Karsten Aalborg Ø, DK 1 1
