Lower exoskeleton
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2017
Grant Date -
Sep 11, 2014
app pub date -
Oct 12, 2012
filing date -
Oct 17, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

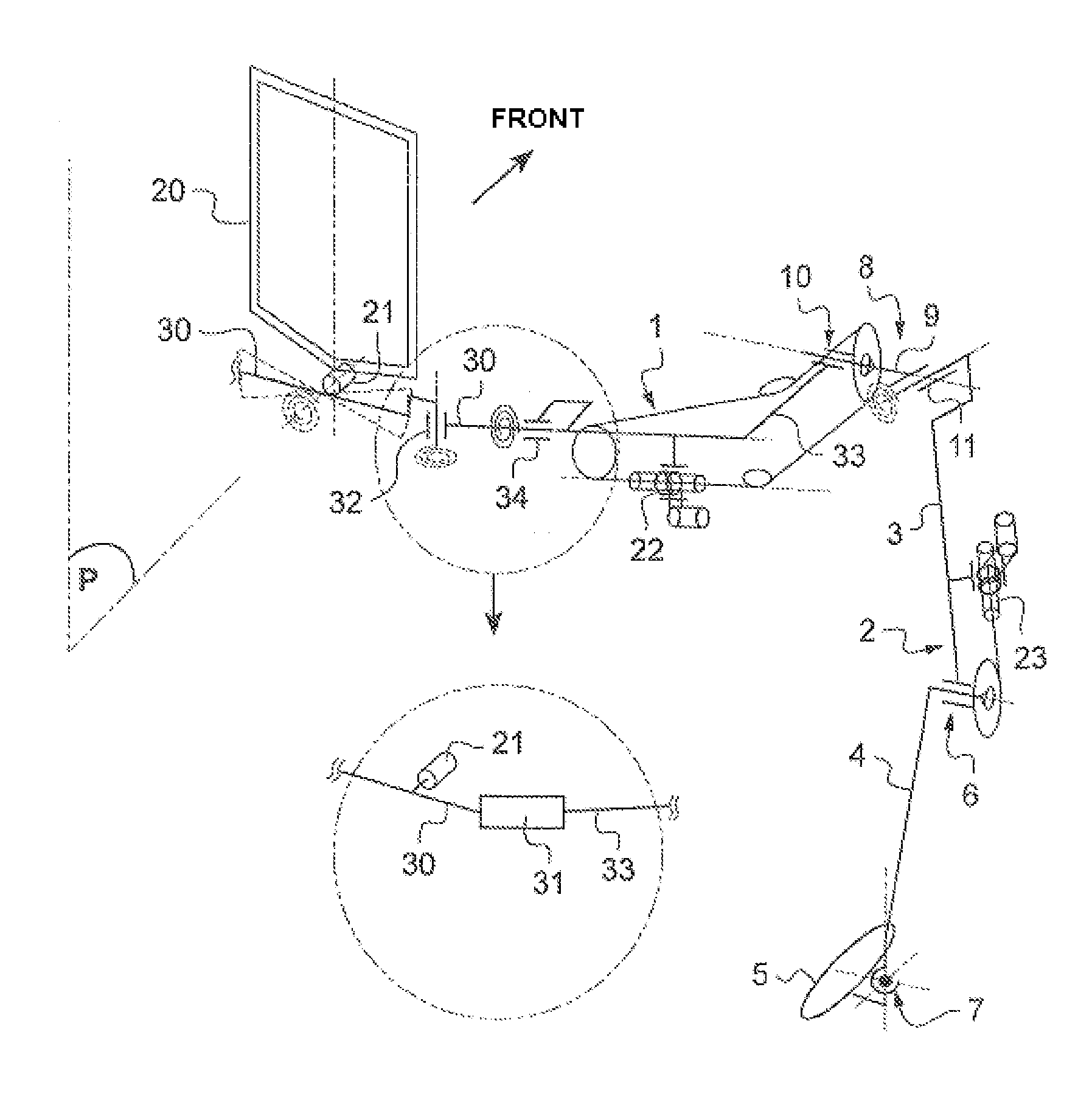

A lower exoskeleton for a user including a pelvic element (1) with a mechanism for securing to an upper part of the user's body; two lower supports (2) with a mechanism for securing to the user's lower limbs and which rest on the ground during stance phases, each of the supports having a thigh segment and a tibia segment connected by a knee link to allow flexion and extension; and hip links for connecting the two lower supports to the pelvic element. The pelvic element has a an inner segment (30) extending symmetrically in relation to a central sagittal plane; and two outer segments (33) extending symmetrically and connected to respective distal ends of the inner segment by linking members (31, 32, 34; 31′), allowing flexion between the inner segment and each outer segment along two orthogonal axes.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- A61H Class
- 477 Applications Filed
- 402 Patents Issued To-Date
- 84.28 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61H Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 28, 2029 |
