Retail upright shelf extender
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2017
Issued Date -
N/A
app pub date -
Jan 13, 2015
filing date -
Jan 13, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

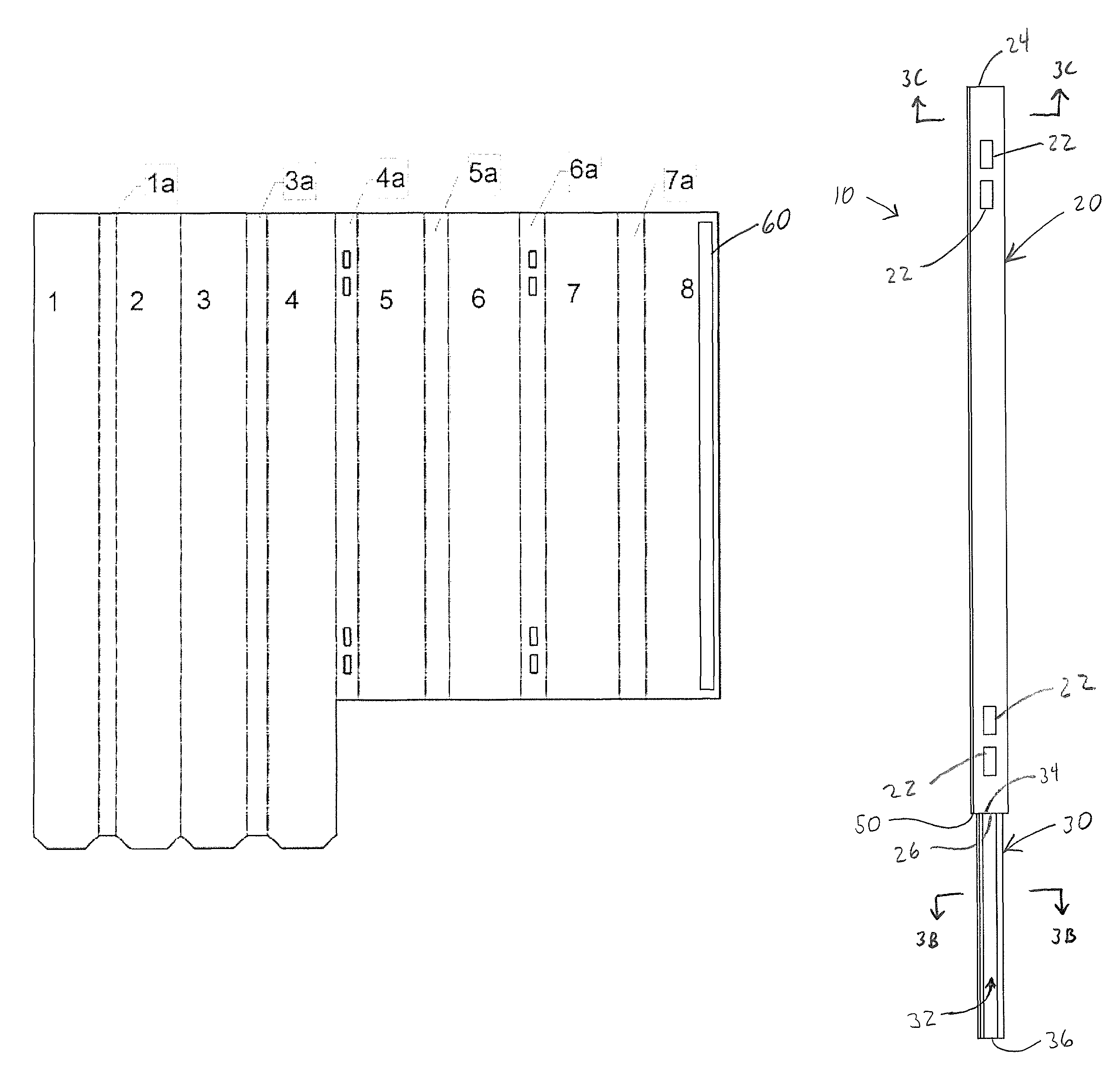

A corrugated shelf extender having an upper section and a lower section is provided. The lower section is configured to be received by an inner area of a vertical support post. The upper section is configured to extend above the vertical support post so as to provide support for signage or the like. The lower section includes a channel that is configured so as to enable a section of the vertical support post that receives the lower section of the shelf extender to be simultaneously utilized by the shelf extender and one or more mounting lug. The corrugated shelf extender is manufactured from a flat piece of continuous corrugated material by folding the corrugated material so as to fabricate an inner portion and an outer portion. The inner portion includes an upper portion that nests within the outer portion and a lower portion that extends from the outer portion such that the upper section of the shelf extender includes the outer portion and the upper portion of the inner portion and the lower section of the shelf extender includes the lower portion of the inner portion.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F16M Class
- 1190 Applications Filed
- 816 Patents Issued To-Date
- 68.58 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F16M Class
- 19.07 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 28, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 28, 2029 |
