Wire bond through-via structure and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 22, 2017
Issued Date -
N/A
app pub date -
Aug 29, 2016
filing date -
Sep 17, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

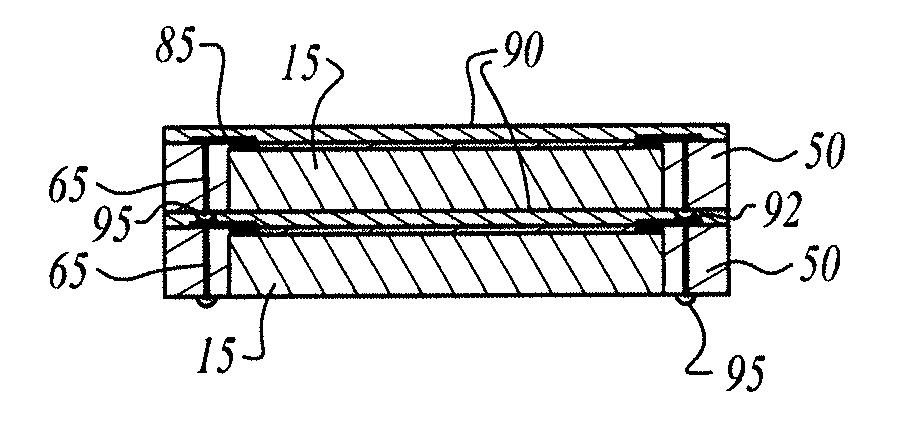

A stackable integrated circuit chip layer and module device that avoids the use of electrically conductive elements on the external surfaces of a layer containing an integrated circuit die by taking advantage of conventional wire bonding equipment to provide an electrically conductive path defined by a wire bond segment that is encapsulated in a potting material so as to define an electrically conductive wire bond “through-via” accessible from at least the lower or second surface of the layer.
